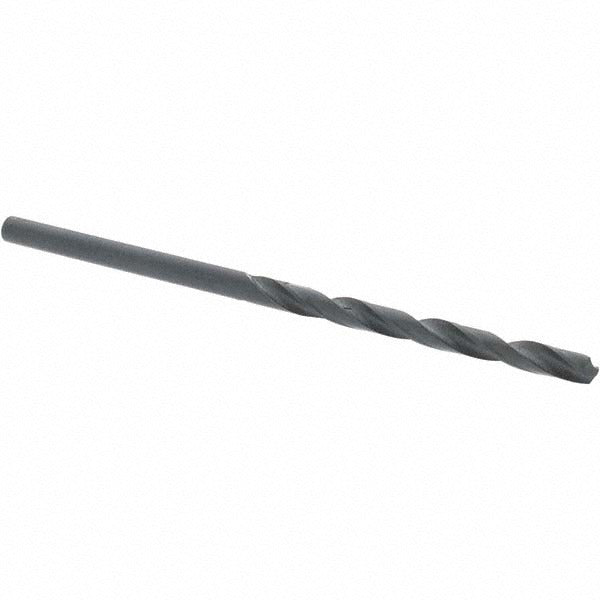

Import 22355 Jobber Drill Bit 3/32 Inch Hss

Product Description

The IMPORT 22355 is a high speed steel jobber-length drill bit designed for general-purpose drilling in metal, wood, plastic, and composite materials. It features a 118-degree standard point angle with a web-thinned, tapered web configuration for improved centering and reduced thrust during entry. The spiral flute geometry promotes efficient chip evacuation during through-hole and blind-hole drilling. At 2.25 inches overall length with a 1.25-inch flute length, this bit is well-suited to tight-clearance work and standard handheld or bench-mounted drilling operations. The oxide coating provides light corrosion resistance and reduces friction at the cutting edge.

This drill bit is intended for trade and industrial technicians who require a reliable general-purpose bit in the 3/32-inch fractional size. Common applications include sheet metal work, light fabrication, electrical rough-in, HVAC equipment assembly, and plumbing fixture installation where pilot holes or clearance holes in this diameter are needed. The straight-cylindrical shank seats securely in standard 3-jaw drill chucks on corded and cordless drills as well as drill presses.

Key Features

• 3/32-inch diameter with matching straight-cylindrical shank for positive chuck engagement
• 118-degree standard point angle suitable for a wide range of materials
• Web-thinned tapered web reduces entry thrust and improves hole-start accuracy
• Regular spiral flute promotes continuous chip removal during drilling
• Oxide finish provides light corrosion resistance and reduces heat buildup at the cutting edge
• Right-hand cutting direction compatible with all standard drill drivers and drill presses

Compatibility

Designed as a general-purpose replacement or stock drill bit for any standard 3-jaw chuck accepting a 3/32-inch straight-cylindrical shank, including handheld drills, cordless drill drivers, and bench-mounted drill presses.

Installation Notes

Install this bit into a properly tightened 3-jaw chuck before powering on the drill. Ensure the shank is fully seated and the chuck key is removed before operation. Use appropriate eye protection and secure the workpiece before drilling. When working near energized components, follow applicable NEC lockout and tagout procedures before drilling into panels or enclosures.
