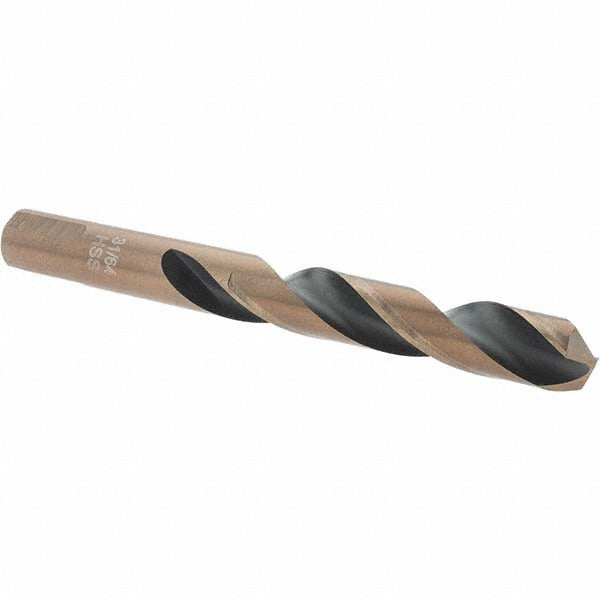

Import 20927 Mechanics Drill Bit 31/64 in Hss Split Point

Product Description

The IMPORT 20927 is a mechanics-length twist drill bit designed for precise hole-making in metal and hard materials. It features a 31/64 inch (0.4844 inch decimal) diameter and a 135-degree split point that reduces walking and allows drilling to start without a center punch. The high-speed steel (HSS) construction handles the heat generated during metal cutting. The three-flat Weldon shank locks securely in compatible chucks, preventing bit slippage under load. Overall length is 4-7/8 inches with a 3-1/4 inch flute length. The oxide finish provides a baseline level of surface protection. Right-hand cutting direction. Installed by machinists, maintenance mechanics, and metalworking trades.

This bit is suited for drilling into carbon steel, cast iron, high alloy steel, high tensile strength alloy, stainless steel, and general steel stock. Mechanics-length bits are shorter than jobber-length bits, making them stiffer and better suited to applications where rigidity matters more than reach — such as drilling in confined spaces or when minimizing deflection in thick material. The spiral flute type and regular spiral promote efficient chip evacuation during through-hole drilling. Web-thinned geometry reduces thrust required to advance the bit.

Key Features

• 31/64 inch diameter with 0.4844 inch decimal equivalent for precision sizing
• 135-degree split point reduces walking and improves self-centering on entry
• High-speed steel construction withstands heat generated in metal cutting applications
• Three-flat Weldon shank prevents rotation slippage under high-torque conditions
• Mechanics length (4-7/8 inches OAL) provides added rigidity over standard jobber bits
• Web-thinned parallel web reduces required drilling thrust

Compatibility

Designed for use with drill chucks and tool holders that accept a three-flat Weldon shank. Compatible workpiece materials include carbon steel, cast iron, high alloy steel, high tensile strength alloy, stainless steel, and general steel.

Installation Notes

Secure the Weldon shank in a compatible chuck or holder, ensuring all three flats are properly engaged before applying torque. Power down and de-energize any machine tool before loading or removing the bit. Use appropriate cutting fluid or coolant when drilling stainless steel or high alloy materials to manage heat buildup, as this bit does not support coolant-through delivery. Wear appropriate eye protection and follow shop safety practices during use.
