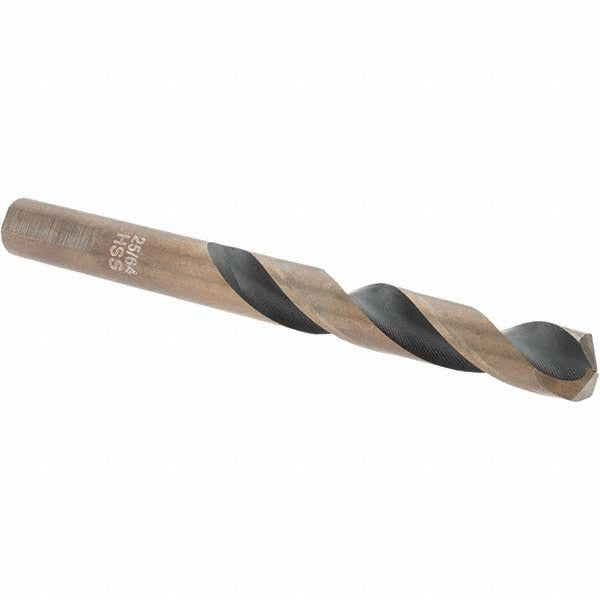

Import 20921 Mechanics Drill Bit 25/64 in Hss Split Point

Product Description

The IMPORT 20921 is a mechanics-length drill bit designed for general-purpose drilling in metal and ferrous materials. It features a 135-degree split point that reduces walking on contact, allowing the bit to self-center without a center punch in most applications. The high-speed steel (HSS) construction with an oxide finish provides adequate hardness and surface protection for production or maintenance drilling work. The Weldon flat shank with three flats locks securely into drill chucks equipped for that interface, preventing slippage under load. Licensed machinists, millwrights, pipefitters, and maintenance technicians are the primary installers of this tool type.

This bit is suited for drilling through carbon steel, cast iron, high alloy steel, high tensile strength alloy, stainless steel, and general steel stock. The mechanics-length body keeps the overall length compact at 4-5/16 inches, improving rigidity and reducing deflection in tight-clearance or hand-drill applications. A 2-3/4-inch flute length provides sufficient chip evacuation for the drill depths typical in mechanical and structural work. The regular spiral and web-thinned parallel web configuration support consistent chip flow without clogging in interrupted cuts or deep entry passes.

Key Features

• 25/64-inch (0.3906 inch decimal) diameter for precise hole sizing
• 135-degree split point self-centers and reduces thrust force
• High-speed steel construction handles a wide range of ferrous workpiece materials
• Weldon flat shank with three flats locks in compatible chucks to resist torque slippage
• Mechanics-length body at 4-5/16 inches overall for improved rigidity in confined spaces
• Web-thinned parallel web design promotes clean chip evacuation

Compatibility

Designed for use with drill presses, magnetic drills, and hand drills fitted with a Weldon-style chuck or set-screw chuck compatible with a three-flat shank. Suitable for drilling carbon steel, cast iron, high alloy steel, high tensile strength alloy, stainless steel, and general steel workpieces.

Installation Notes

Secure the Weldon flat shank fully into a compatible chuck before drilling and confirm all set screws are tightened against the flats. Ensure the workpiece is clamped or fixtured before engaging the bit to prevent rotation under load. Use appropriate cutting fluid or coolant when drilling stainless steel or high alloy materials to extend bit life and control heat buildup. Inspect the cutting edges before each use and replace the bit if chipping or dulling is observed.
