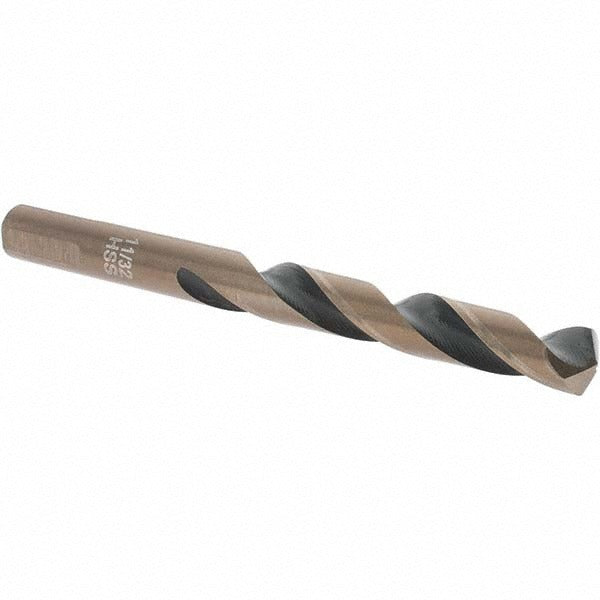

Import -20918-5 Mechanics Drill Bit 11/32 in Hss Split Point

Product Description

The IMPORT -20918-5 is a mechanics-length high-speed steel drill bit designed for fast, accurate hole-starting in ferrous and hard metals. Built with a 135-degree split point, it eliminates the need for a center punch by self-centering on contact with the workpiece. The Weldon flat shank provides a positive, slip-free grip in compatible chucks. At 4-1/8 inches overall length with a 2-5/8 inch flute length, this bit is sized for general-purpose drilling in tight or standard access conditions. The oxide finish adds light corrosion resistance during storage and use.

This drill bit is suited for metal fabrication shops, maintenance trades, and industrial applications requiring reliable drilling into carbon steel, cast iron, high alloy steel, high tensile strength alloy, stainless steel, and similar ferrous materials. The mechanics-length body keeps deflection low when drilling in confined areas or at shallow approach angles. Right-hand spiral flutes evacuate chips efficiently during through-hole and blind-hole operations.

Key Features

• 135-degree split point self-centers without a center punch, reducing setup time
• High-speed steel construction withstands heat generated during metal drilling
• Weldon flat shank with 3 flats locks securely in set-screw chucks to prevent slipping
• Web-thinned parallel web reduces thrust force and improves chip clearance
• Oxide finish provides light surface protection against corrosion
• Regular spiral, right-hand cut flutes suited for general-purpose metal drilling

Compatibility

Designed for general-purpose use in compatible Weldon flat-shank drill chucks; suitable for drilling carbon steel, cast iron, high alloy steel, high tensile strength alloy, and stainless steel workpieces.

Installation Notes

Installation is performed by machinists, maintenance technicians, or metal trades professionals. Secure the Weldon shank fully in the chuck and tighten all set screws against the flats before operating. Always wear appropriate eye protection and secure the workpiece before drilling. Do not exceed the recommended RPM range for the bit diameter and material being drilled.
