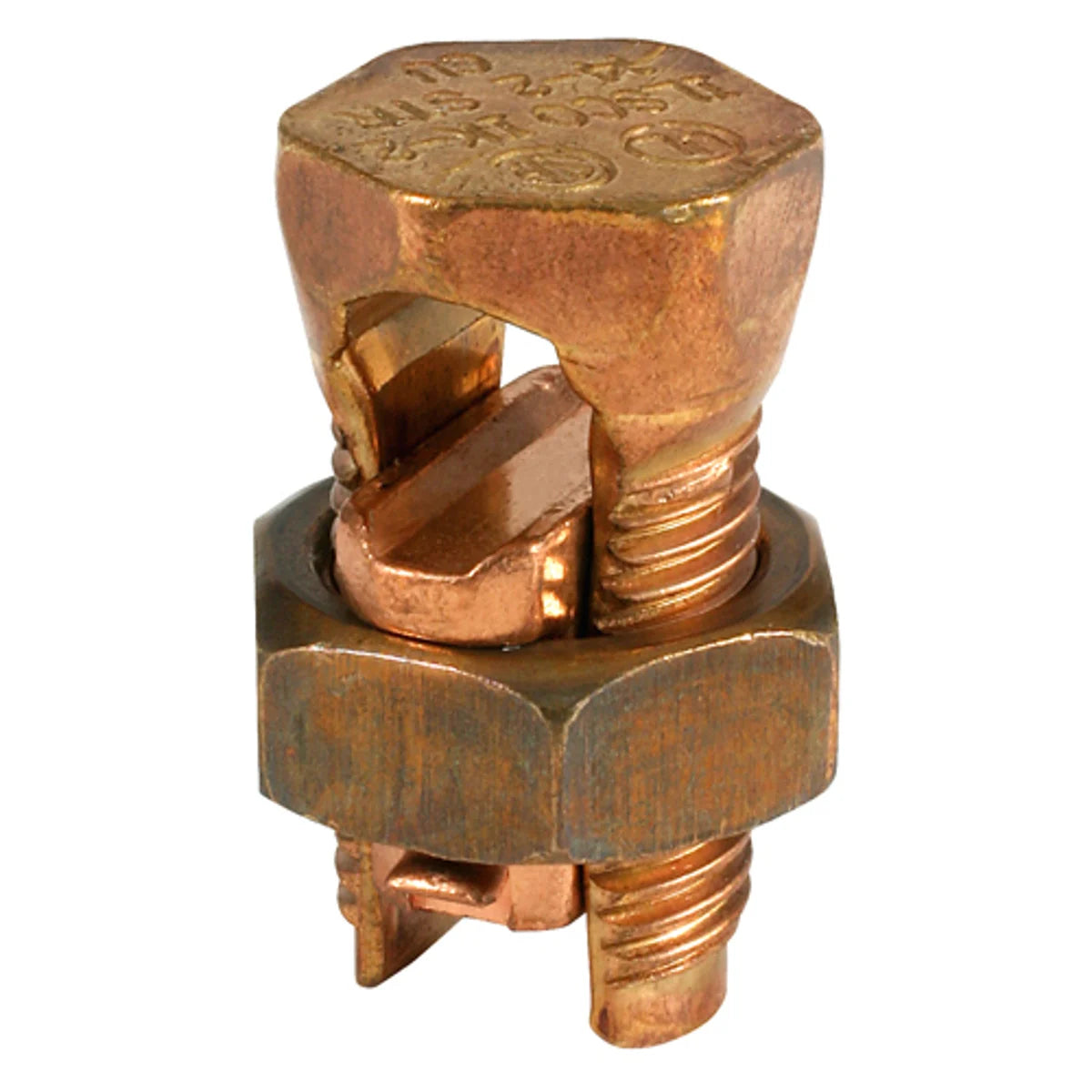

ILSCO IK-350 Copper Split Bolt, Conductor Range for Equal Main & Tap 350-4/0, UL, CSA

Product Description

The ILSCO IK-350 is a copper split bolt connector designed for use in electrical applications. It accommodates conductor sizes from thirty-five to four hundred KCMIL. This connector is suitable for both run and tap applications. It is UL and CSA approved for safety standards.

• Manufactured from high strength copper alloy for maximum conductivity.
• Precision tooled threads allow for maximum torque application.
• Suitable for circuits rated thirty-five kV or less, ensuring proper high voltage spacing and insulation techniques.

Product Highlights

This product is ideal for various electrical connections and offers durability for outdoor and direct burial use.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries
• Country of Origin: United States
• Made in USA: Yes

Technical Specifications

• Catalog Number: IK-350
• Approval: UL 460C, CSA
• Material: High Strength Copper Alloy
• Maximum Run Conductor Size: 350 KCMIL
• Minimum Run Conductor Size: 4/0 AWG Stranded
• Maximum Tap Conductor Size: 350 KCMIL
• Minimum Tap Conductor Size: 8 AWG Solid
• Product UPC: 783669470208
