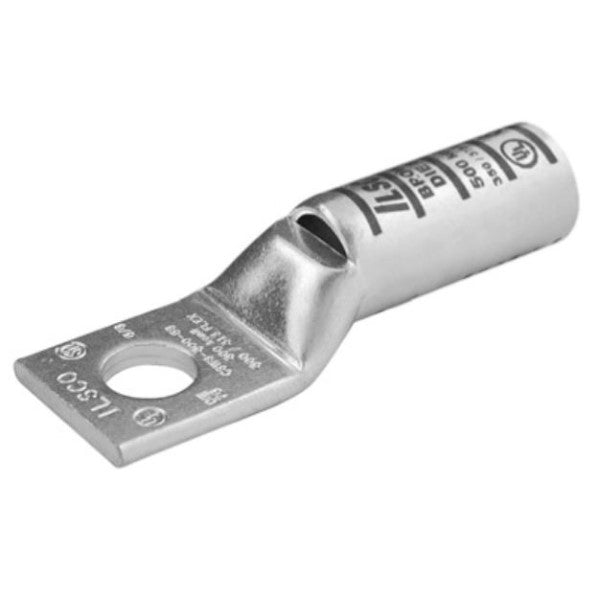

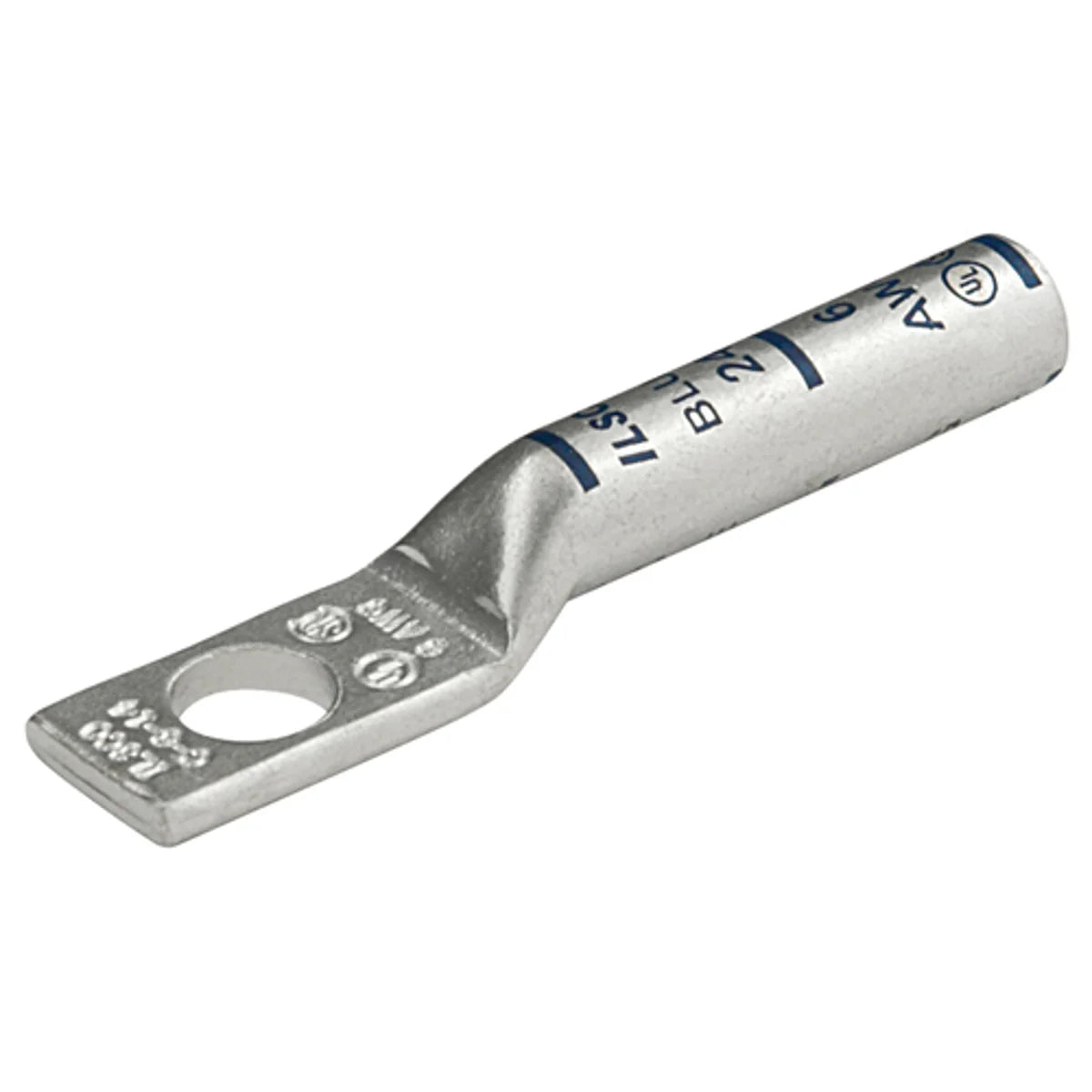

ILSCO CLNS-2-12 Surecrimp Copper Compression Lug 1/2 in Stud

Product Description

ILSCO CLNS-2-12 is a copper compression lug designed for reliable wire connections. It features a long barrel and accommodates a conductor size of 2 AWG. This compression lug has a one-half inch stud size and is ideal for use in electrical applications.

• Manufactured from seamless copper tubing
• Tin plated for enhanced conductivity
• UL and CSA certified for safety

Product Highlights

This compression lug provides excellent conductivity and low contact resistance, which ensures a stable electrical connection. It is suitable for circuits rated 600 VAC and offers application versatility across various wiring tasks.

Product Information

Standard Information

• Catalog Number: CLNS-2-12
• Manufacturer: ECM Industries

Technical Specifications

• Conductor Size: 2 AWG
• Stud Size: 1/2 in
• Overall Length: 2.661 in
• Temperature Rating: 90 deg C
• Voltage Rating: 600 VAC
• Material: Copper
• Type: 1-Hole
• Barrel Length: 1-1/8 in
• Barrel Style: Long
