Idec SH1B-05C Relay Socket 10 A 250 V (5-Pin)

Brand: IDEC
SKU: SH1B-05C
Availability: In Stock

Ships same day if ordered by 12 pm
$20.89
$20.89
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

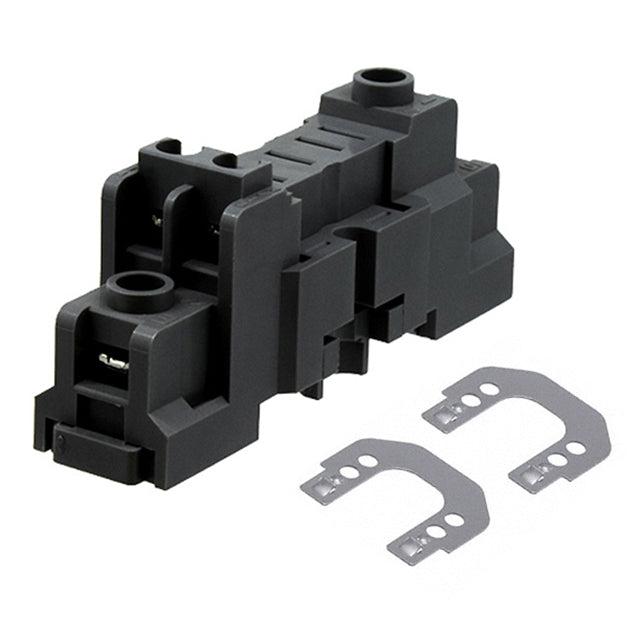

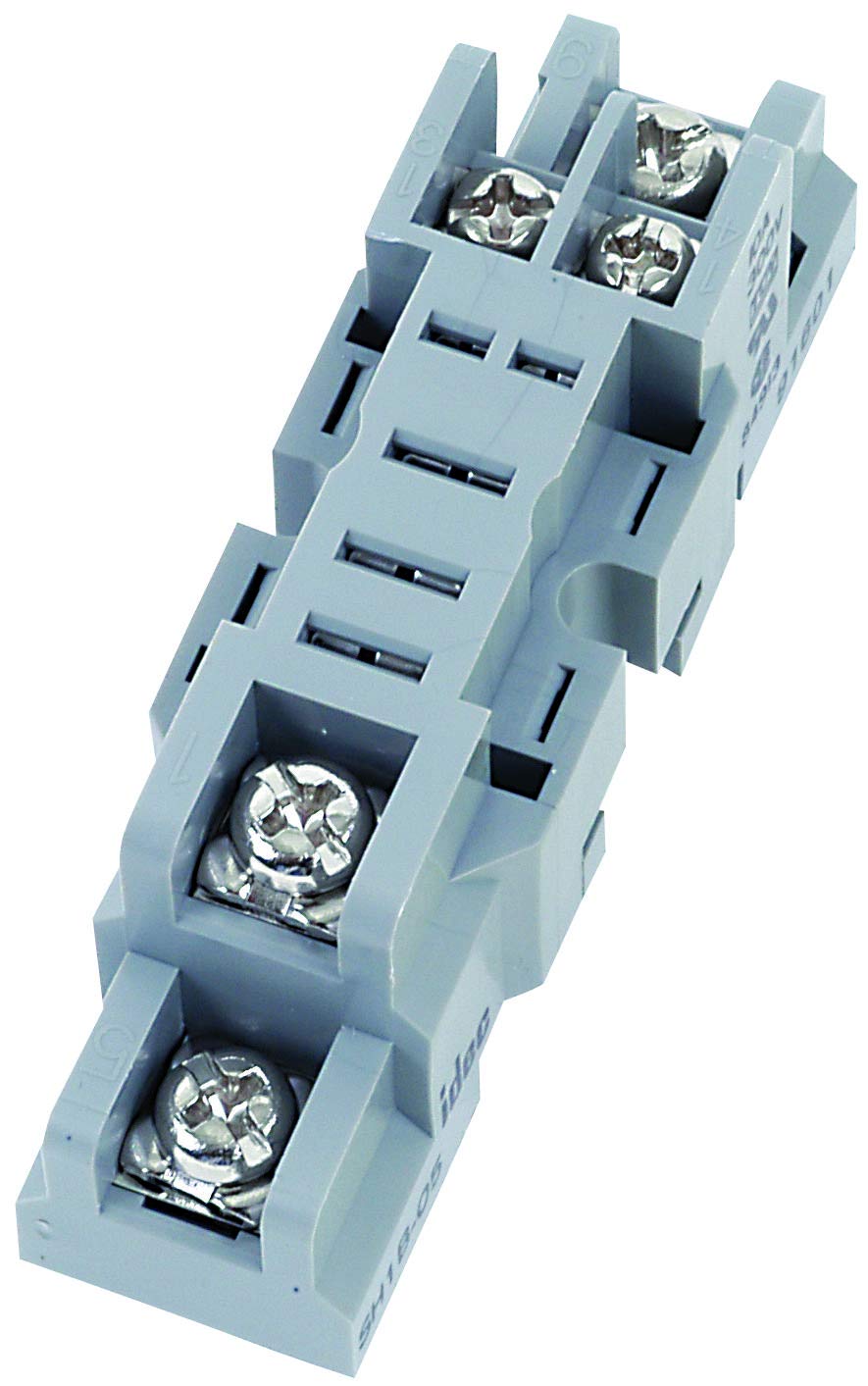

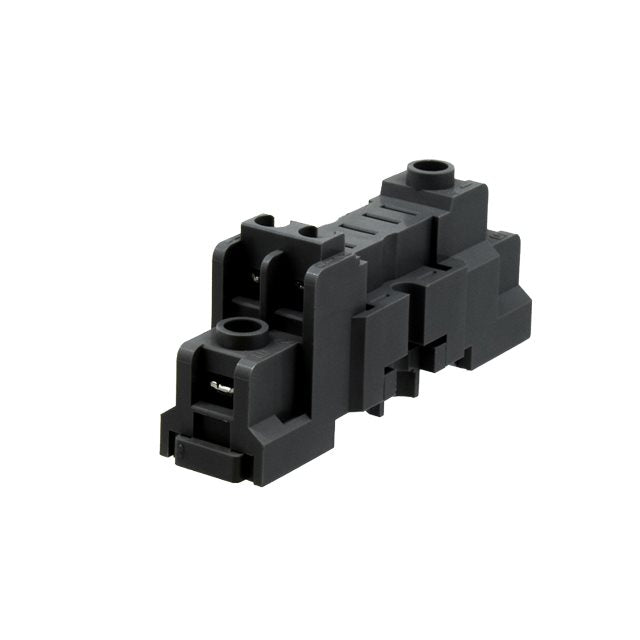

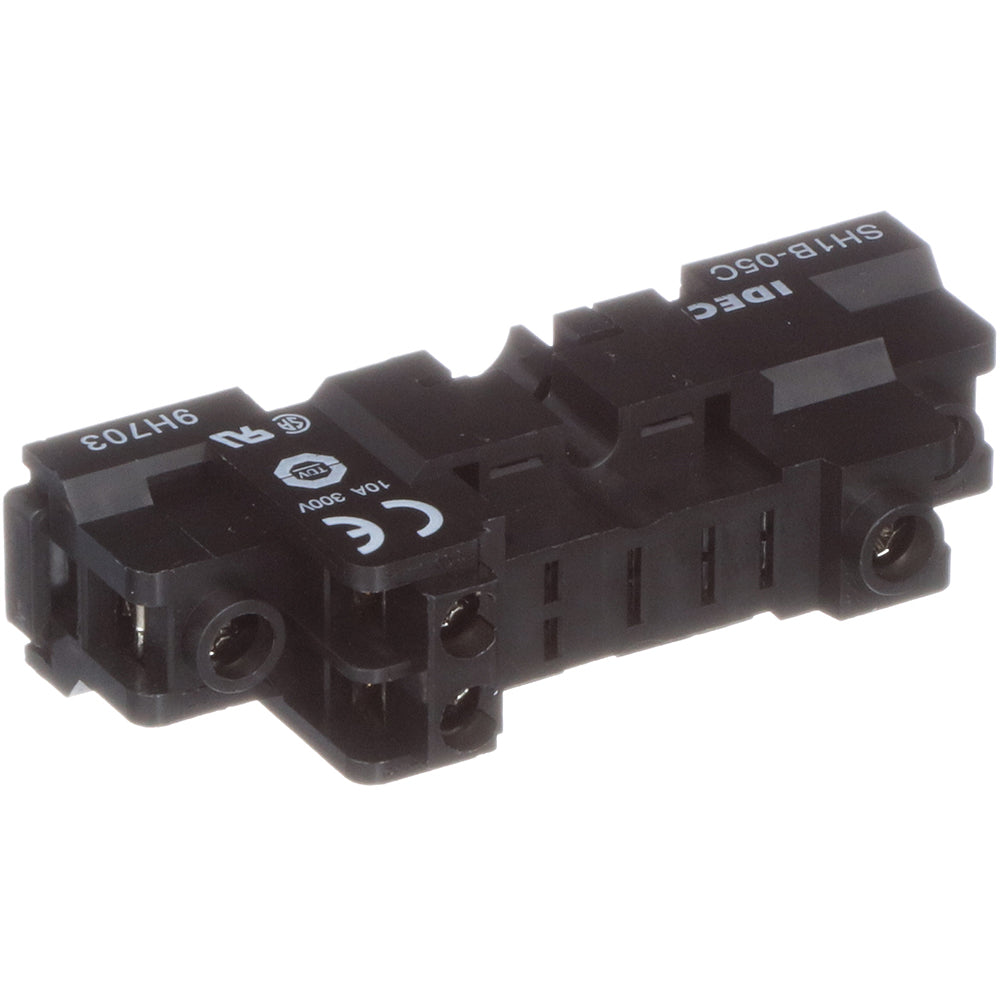

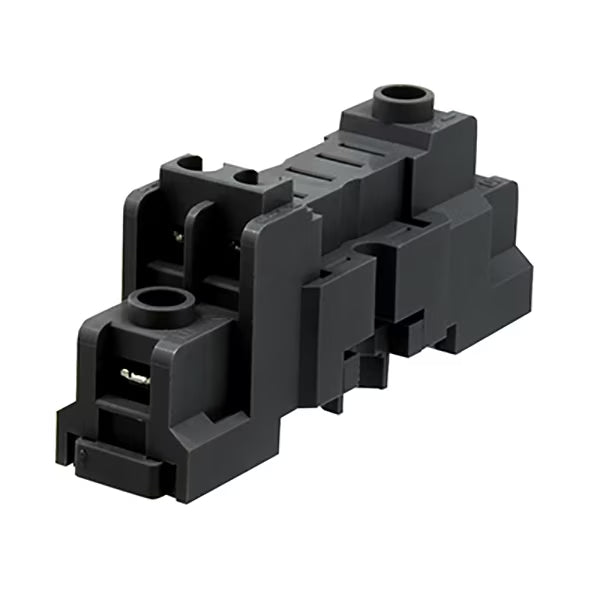

IDEC SH1B-05C is a 5-pin relay socket designed for DIN-rail mounting that accepts IDEC RH1B and RH series relays. The socket uses screw-type terminals with a captive wire clamp, is rated 10 A at 250 V, and supports snap-mount installation on BNDN-1000 rails. It features finger-safe terminals, insulation resistance �100 megohms and dielectric strength of 2000 VAC for industrial control and control panel installations.

  • Electrical rating: 10 A current, 250 V voltage; 5-pin, single-pole configuration
  • Mounting: DIN rail snap-mount (BNDN-1000) with built-in clip; also supports panel or PCB mounting; screw terminals with captive wire clamp
  • Safety and performance: finger-safe terminals (IP20), insulation resistance �100 megohms, dielectric strength 2000 VAC; RoHS, UL, CSA, CE approvals

Product Highlights

5-pin DIN-rail relay socket, screw terminals, 10 A/250 V, finger-safe, compatible with IDEC RH1B/RH series relays

Product Information

Standard Information

  • Brand: IDEC
  • Manufacturer Part Number: SH1B-05C
  • Country of Origin: Taiwan
Technical Specifications
Brand
IDEC
Manufacturer Part Number
SH1B-05C
Product Type
Relay socket
Series
SH Series
Number of Pins
5
Number of Poles
1 (single pole)
Current Rating
10 A
Voltage Rating
250 V
Mounting Type
DIN Rail (snap-mount on BNDN-1000); panel; PCB
Mounting Details
Snap-mount on BNDN-1000 DIN rail with built-in mounting clip
Termination
Screw terminals with captive wire clamp
Finger Safety
Finger-safe (IP20)
Compatibility / For Use With
IDEC RH1B relays; compatible with RH series (some sources also list VMD1B)
Insulation Resistance
100 megohms (minimum)
Dielectric Strength
2000 VAC
Wire Size
Up to 12 AWG/14 AWG (per manufacturer terminal ratings)
Certifications
RoHS compliant; UL recognized (File E62437); CSA certified (File LR35144e); CE
Recommended Accessories
SA-406 DIN rail spacer (0.197"), BNL-5 end clip, SY2S-02F1 hold-down spring, SFA-101 / SFA-202 hold-down clips
Termination Style
Screw
Package Quantity
1
Standards
UL recognized, CSA certified, CE marked
Insulation/Contact Configuration
5-contact relay socket (blade/quick-connect style contacts for matching relays)
