Ideal WT41-B Tan Conn 500/Bag

Product Description

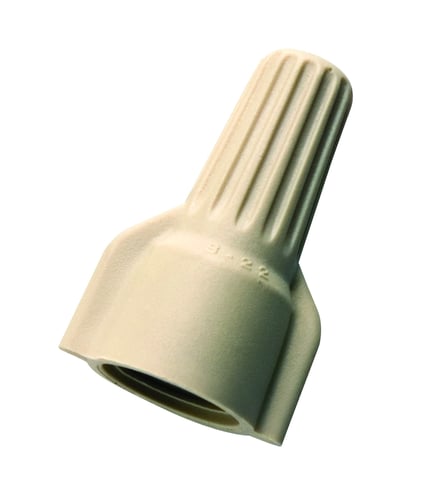

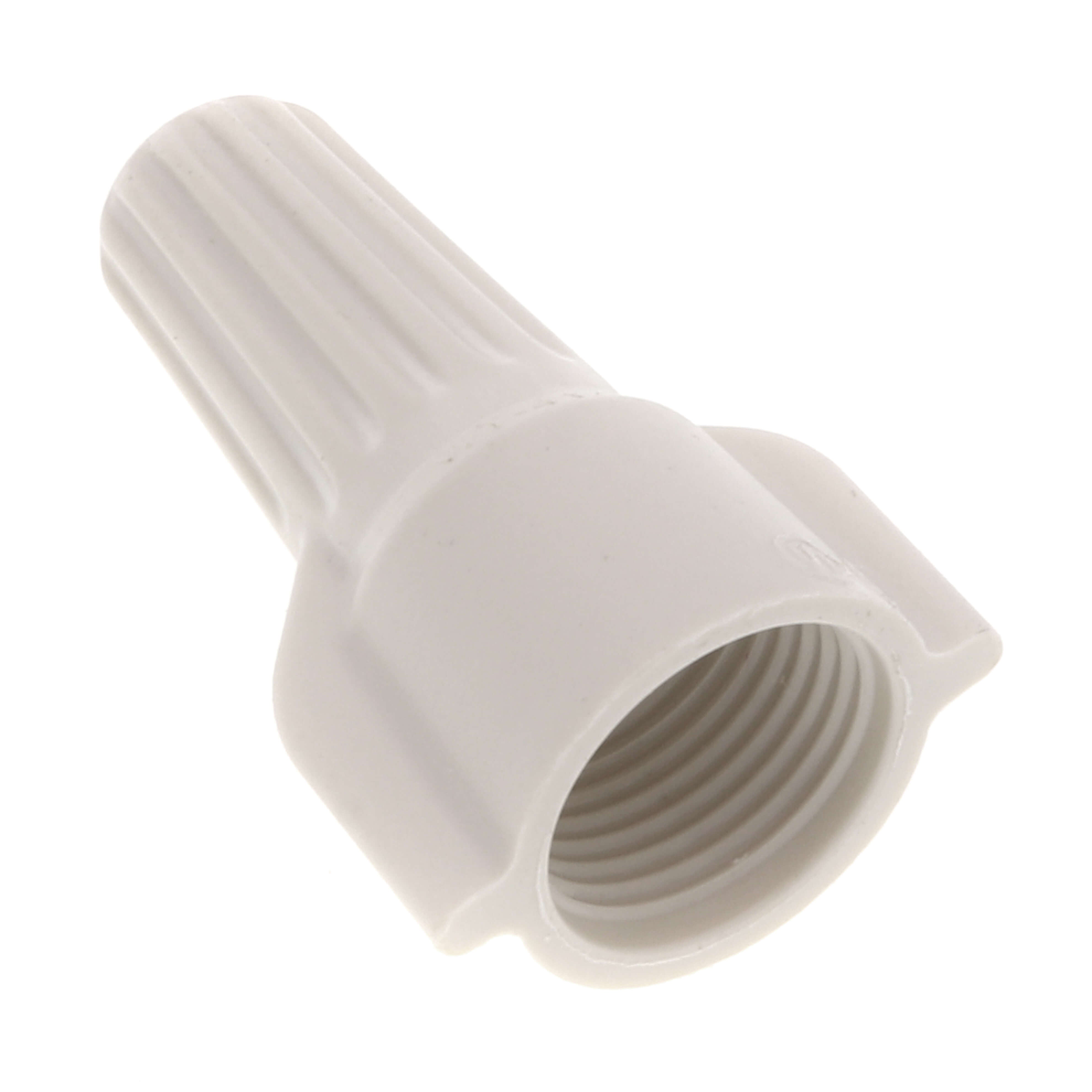

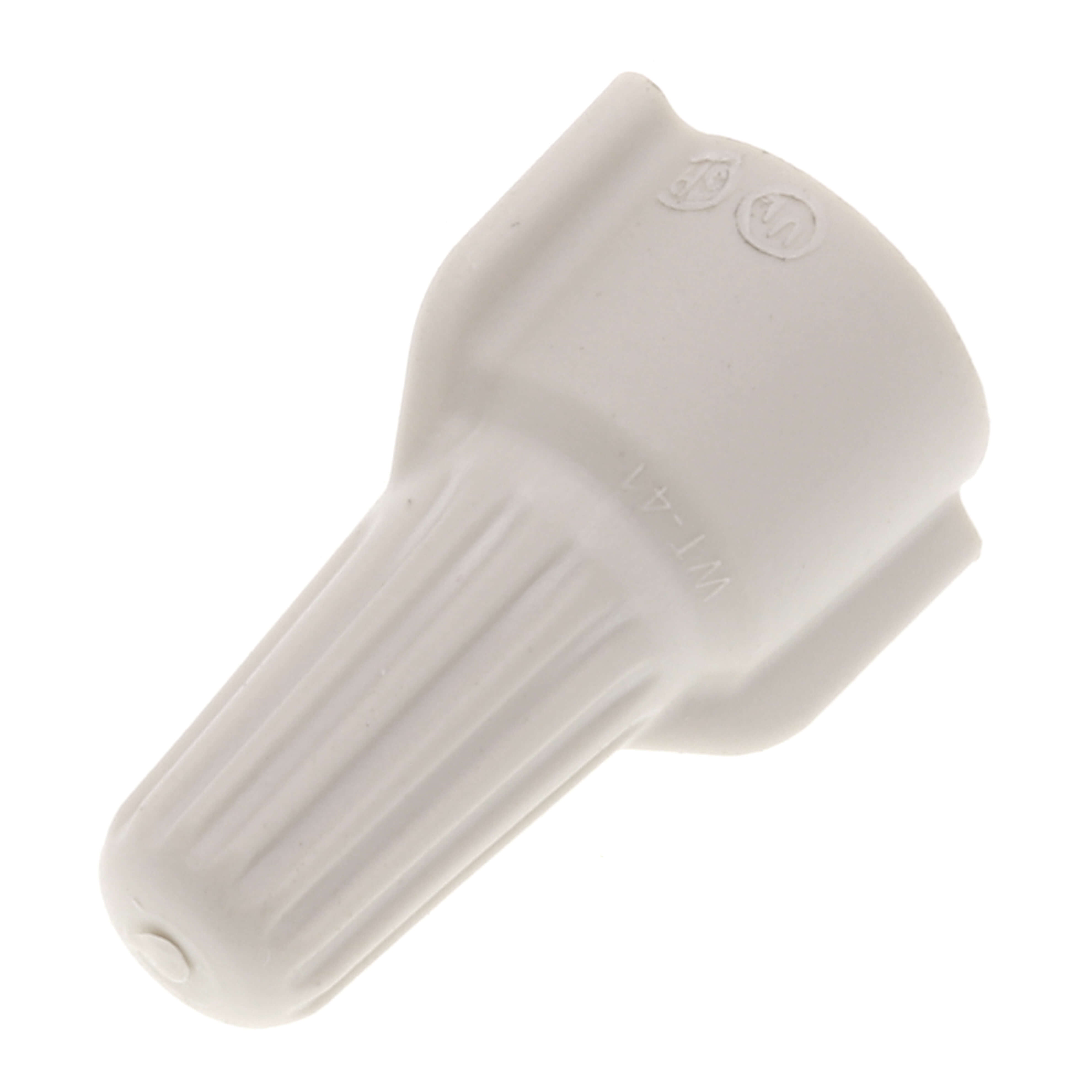

The IDEAL WT41-B Tan Conn is a wire connector that delivers reliable performance for everyday wiring jobs. These wire connectors feature a durable shell and a contoured wing design for a tight grip when twisting. The square cut spring ensures secure tightening. This connector supports 2 #20 AWG wires to 3 #10 AWG wires.

• Contoured wing design provides added leverage when twisting
• Tough shell protects against harsh elements
• Corrosion-resistant spring prevents rust buildup

Product Highlights

The WingTwist Wire Connector ensures safe, consistent electrical connections every time and is suitable for a wide range of applications.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: WT41-B
• Country of Origin: Canada

Technical Specifications

• MPN: WT41-B
• Brand: IDEAL
• AWG: 22-8
• Color: Tan
• Material: Polypropylene
• ECCN: EAR99
• UNSPSC: 39121445
• Packaging: Bag of 500
• Use With: Copper Wire
• Color Family: Brown
• Application: Insulating or Joining 1 or more conductors
• Brand Name: Ideal
• Conductor Range: 22 - 10 AWG, 2/20 AWG Min, 3/10 Solid AWG MAX
• Country of Origin: USA
• Number Of Conductors: 1 to 6
• Special Features: Deep, wide-throated skirt protects against flash-over and turned-back strands for maximum dielectric protection Expanding, square wire spring creates secure connections Fixed, square wire spring threads itself creating a secure pressure grip Flexible shell expands for smooth, progressive tightening providing dependable connections No pre twisting required Unique contoured wing design acts as built-in wrench providing maximum torque with minimum effort
• Standard: CSA C22.2 #188, UL 486C Listed, RoHS
• Sub_Brand: Buchanan
• Temperature_Rating: 221
• Type: Wing Nut
• Voltage Rating: 600
• Wire_Type: Solid
