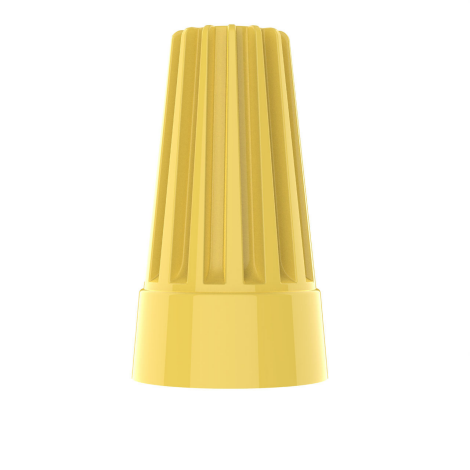

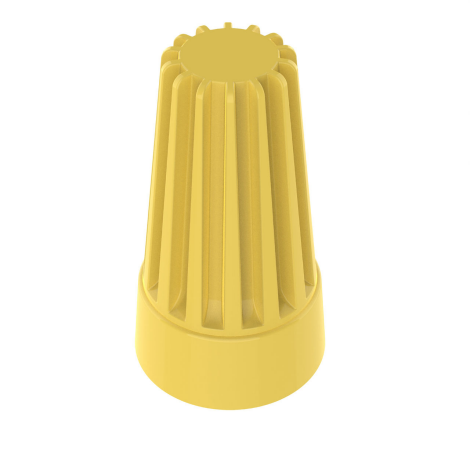

Ideal WT4 Wiretwist Wire Connectors (100/BX)

Product Description

The IDEAL WT4 WireTwist Wire Connectors deliver performance and safety for electrical wiring projects. Designed for electricians and DIY users, these twist-on wire connectors feature a grip shell for effortless installation while reducing hand fatigue. Constructed from a UL 94V-2 flame-retardant shell, these connectors accommodate wire combinations from 3 #20 AWG to 2 #12 AWG.

• FAST AND EASY INSTALLATION: Positive grip shell designed for quick installation for professional electricians
• DELIVERS SECURE CONNECTIONS: Fixed, square-wire spring delivers consistent, secure connections that resist loosening over time

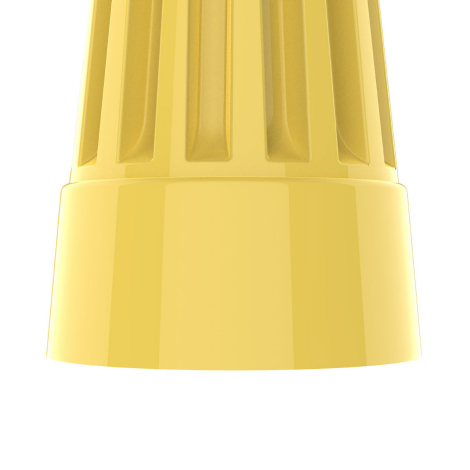

• ENHANCES SAFETY: Deep skirt design enhances safety by helping protect against flash-over during electrical work

Product Highlights

The IDEAL WireTwist Wire Connectors provide secure connections for wiring outlets, switches, lighting fixtures, and small appliances. These connectors accommodate solid and stranded wires.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: WT4-1

Technical Specifications

• Termination Method: Twist-on
• Maximum Rated Voltage: 600V
• Maximum Temperature (C): 105°C
• Maximum Wire Gauge: 10 AWG
• Minimum Wire Gauge: 22 AWG
• Wire Type: Solid, Stranded
• Colour: Yellow
• Flexible Skirt: No
