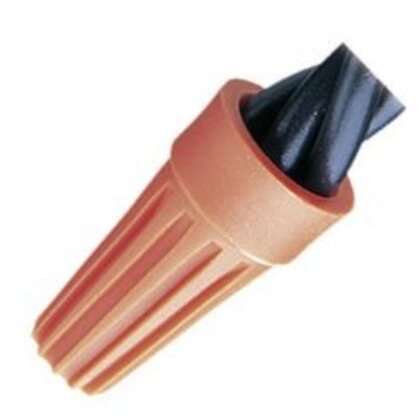

Ideal WT3-B Wiretwist Wire Connector Orange 500-Bag

Product Description

The IDEAL WT3-B Wiretwist Wire Connector is designed for ease of use and reliability. This 500-pack of orange connectors features a positive grip shell for fast, tool-free installation, and a square-wire spring that maintains a strong, secure connection. Its deep skirt adds safety by helping to prevent flash-over. Compatible with wire combinations from minimum 2 #18 AWG to maximum 2 #14 AWG.

• Positive grip shell designed for fast, easy installation
• Fixed, square-wire spring creates secure connections
• Deep skirt protects against flash-over

Product Highlights

The WT3-B Wire Connectors offer an economical connector that brings a lot of value in comfort and performance.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: WT3-B

Technical Specifications

• Termination Method: Twist-on
• Number of Ports: 1
• Maximum Rated Voltage: 600 V
• Maximum Temperature: 221°F (105°C)
• Maximum Wire Gauge: 14 AWG
• Minimum Wire Gauge: 22 AWG
• Wire Type: Solid, stranded
• Manufacturer Part Number: WT3-B
• Package Quantity: 500
• Primary Type: Twist-On Splice
• Series: WireTwist Series
• Termination: Spring
• Type: Twist On
• UPC Code: 783250572564
• Material: Copper
• Allowable Gauge Range: 20 - 14
