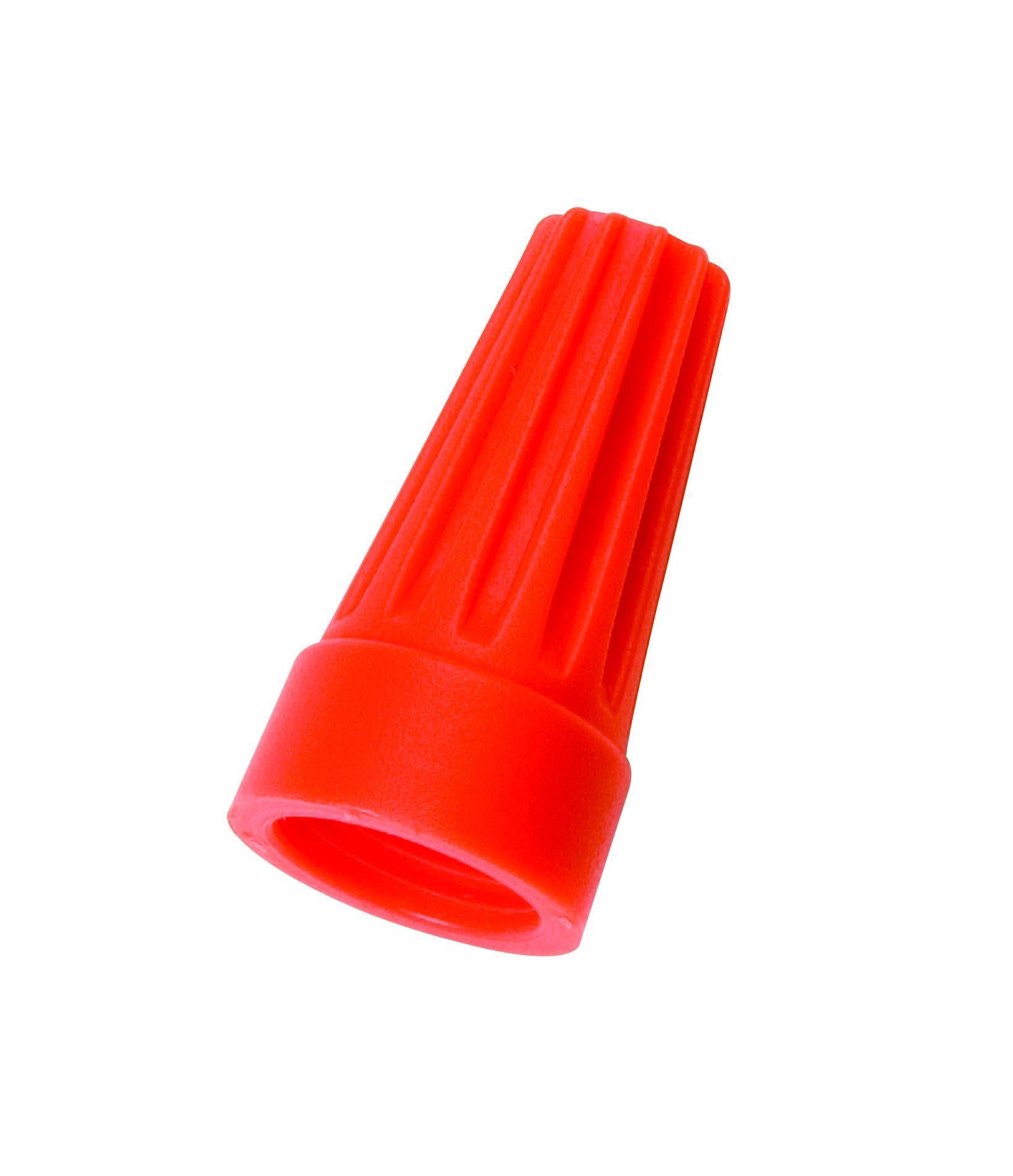

IDEAL WT3-B WireTwist Wire Connector - Orange - 500/Bag

Product Description

The IDEAL WireTwist WT3-B wire connector is designed for connecting copper wires. It supports both solid and stranded wires ranging from twenty-two to fourteen AWG. This connector is made from non-metallic material, offering dielectric protection and suitable for use with ACAM systems.

• Features a ribbed cap for enhanced grip during installation.
• Incorporates a fixed, square wire spring for secure connections.
• Deep skirt design protects against flash-over.

Product Highlights

The WT3-B is rated for up to six hundred volts and can withstand temperatures up to two hundred twenty-one degrees Fahrenheit. Each bag contains five hundred orange connectors, ensuring sufficient stock for various applications.

Product Information

Standard Information

• Color: Orange
• Material: Non-Metallic

Technical Specifications

• Standards: California Proposition 65
• Allowable Gauge Range: 20 - 14
• Series: WT3
• Wire Strip: 3/8 inches Solid, 5/16 inches Stranded
• Spring Type: Fixed/Square Wire
• Temperature Rating (Degrees F): 221
• Voltage Rating: 600 V
• Wire Size: 22 to 14 AWG
