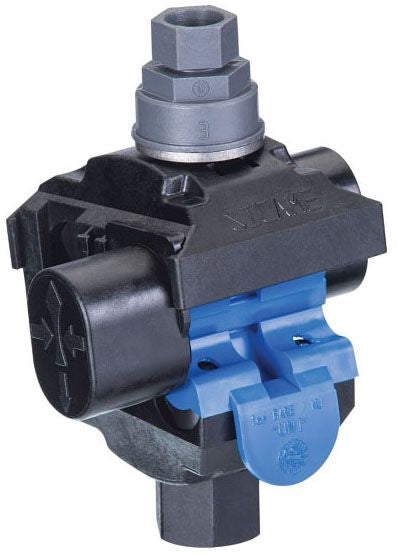

Ideal BTC500-14 Piercing Tap Connector

Product Description

The IDEAL BTC500-14 is a piercing tap connector designed to establish a branch circuit connection on an insulated conductor without stripping the wire. The connector uses an insulation-piercing contact to bite through the jacket and make a reliable electrical connection, allowing a tap wire to be added to a run wire in the field. Electricians and utility technicians install this type of connector where a mid-span branch connection is required and wire stripping is impractical or undesirable.

The BTC500-14 is suited for use in residential and light commercial electrical work where insulation-piercing tap connections are needed on compatible wire gauges. It is typically applied on service entrance work, street lighting circuits, and secondary distribution taps where a secure, weather-resistant branch point must be made quickly without interrupting the main conductor.

Key Features

• Insulation-piercing design eliminates the need to strip wire insulation before making the tap connection
• Allows branch circuit taps to be made on an energized or de-energized run conductor
• Compact form factor for use in confined junction or splice locations
• Suitable for field installation by electricians using standard hand tools

Compatibility

Designed as an OEM-style replacement or direct-use piercing tap connector for compatible insulated conductors in residential and light commercial electrical installations. Verify conductor gauge compatibility against the BTC500-14 specification sheet before installation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before installing the connector whenever possible. Seat the connector fully and torque the mechanical fastener per the tool or connector instructions to ensure a reliable pierce and contact. Do not reuse a connector that has already been seated on a conductor.

Technical Specifications

• Weight: 0.46 pounds
• UPC: 78178945451

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: BTC500-14
