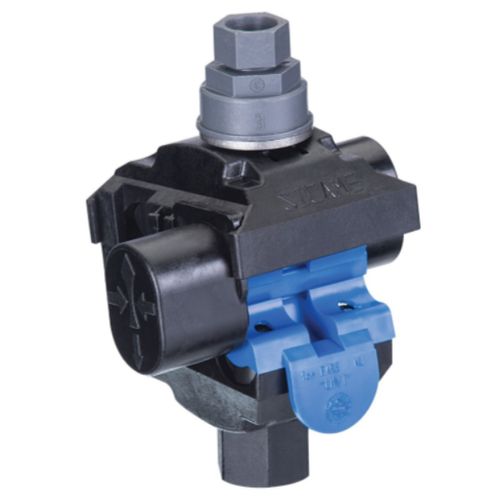

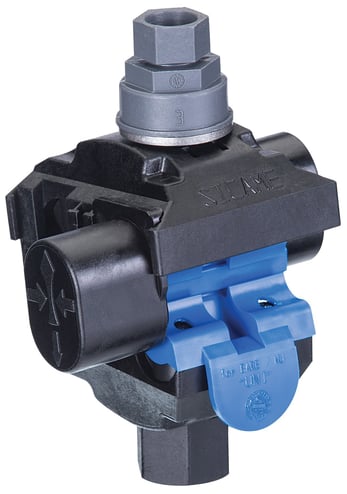

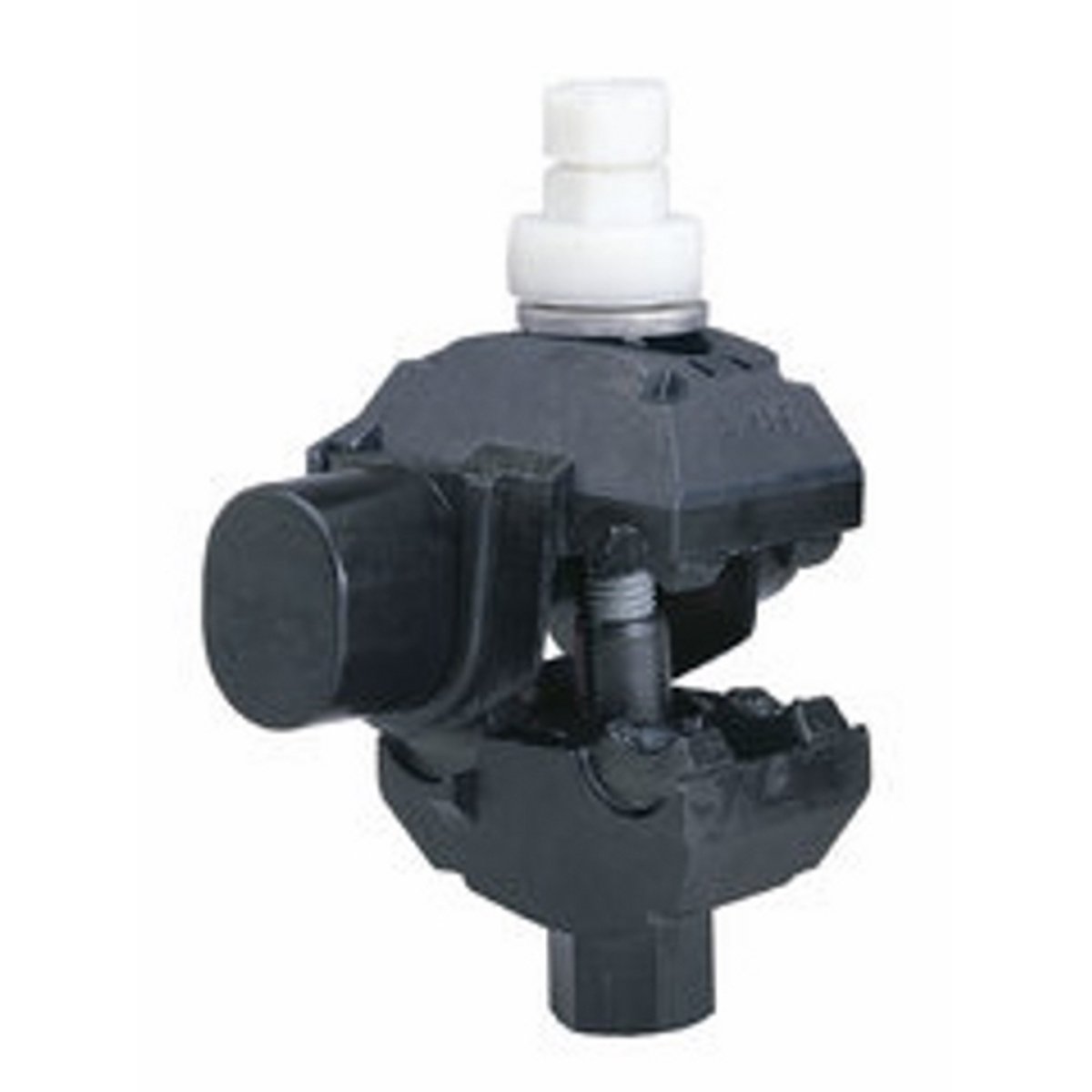

Ideal BTC1/0-10 B-TAP Connector

Brand: IDEAL
SKU: BTC1/0-10
Availability: Out Of Stock
$48.21
$48.21
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The IDEAL BTC1/0-10 B-TAP connector eliminates the need for split bolts and tape, offering a reliable insulation-piercing tap connection. This connector installs easily with a box or socket wrench, even on energized systems, preventing costly power shutdowns. The self-sealing, grease-filled end-cap ensures a safe, weather-tight connection.

  • Eliminates split bolts and tape
  • Installs on energized systems eliminating costly power shutdowns
  • Torque-regulating nut breaks off when proper tension is reached

Product Highlights

Provides a safe, dependable, and easy insulation piercing tap connection with a breakaway torque nut that guarantees a perfect connection every time.

Product Information

Standard Information

  • Brand: IDEAL
  • Manufacturer Part Number: BTC1/0-10
  • Country of Origin: USA
Technical Specifications
Catalog Number
BTC1/0-10
Manufacturer
Ideal Industries
Brand
Ideal
UPC
781789454443
GTIN
00781789454443
Voltage Rating
600 V
Connection Size
1/2"
Torque
80 lb-in
Termination Method
Wrench
Number of Ports
2
Number of Bolts
1
Wire Type
Solid, Stranded
Temperature rating
252 degree fahrenheit
Number of Items
1
Unit count
1.0 Count
Part Number
BTC1/0-10
Item model number
BTC1/0-10
Item Package Quantity
1
Included Components
Tool & Accessories
Batteries Included?
No
Batteries Required?
No
Conductor Type
Solid/Stranded
Conductor Size
1/0 to 8 AWG Run, 10 to 2 AWG Tap
Country of Origin
USA
Special Features
Breakaway torque nut snaps off when UL torque requirements are met Can be used on copper-copper, aluminum-aluminum, copper-aluminum and aluminum-copper when used in non-tension, insulated applications Easy 2 min installation requires only box/socket wrench Eliminates split bolts and tape Grease filled boots protect copper teeth from corrosion and prevent arcing Grease filled end cap seals end of conductor for superior weather protection Hardened copper teeth pierce insulation and bite into conductors Installs on energized systems eliminating costly power shutdowns Second nut remains for easy connector removal Self-insulated housing eliminates the need for tape, safely installs on energized systems Self-sealing, grease filled end cap ensures safe Torque regulating nut breaks off when proper tension is reached Unique turbo spacer keeps connector wide open for quick and easy installation Weathertight connection
Standard
CSA, UL Listed,RoHS
Sub_Brand
Buchanan
Tap_Size
2-10
Temperature_Rating
194
Type
Insulation-Piercing
Compatible Wire Gauge (AWG)
0 (1/0)
