Product Description

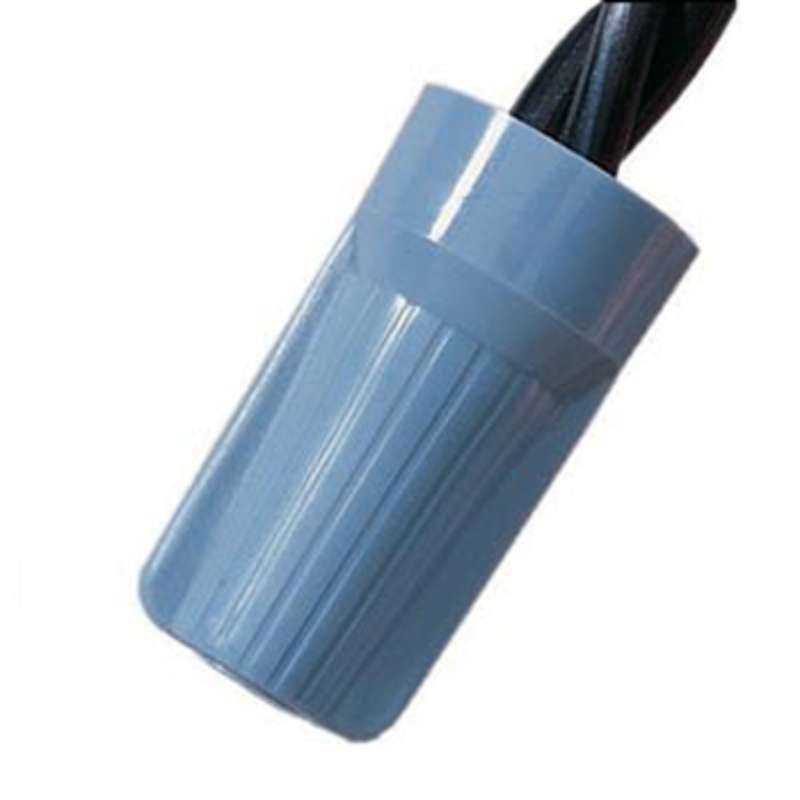

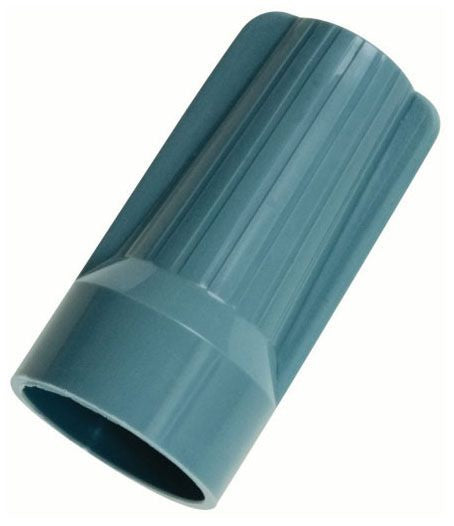

Ideal B4-1 is a wire connector designed for secure connections in electrical applications. It is suitable for wire sizes from fourteen to six AWG and can handle a maximum voltage of six hundred volts. The live-action spring expands to accommodate different wire shapes and sizes, eliminating the need for pre-twisting. The connector's deep skirt protects against flash-overs and turned-back strands, ensuring maximum dielectric protection. It can be reused on the same size or larger wire combinations with ease.
- Connector Type: Wire Connector
- Operating Temperature: +221 degrees Fahrenheit
- Package Includes: 25 connectors per box
Product Highlights
This connector features a unique design for easier handling and more secure grip. The flame-retardant shell is rated for high temperatures.
Product Information
Standard Information
-
Brand: Ideal
-
Part Number: B4-1
Technical Specifications
-
Color: Blue; Gray
-
Wire Gauge Ratings: Fourteen to six AWG
-
Standards Met: UL Listed, CSA Certified, CE Certified
-
Maximum Operating Temperature: +221 degrees Fahrenheit
-
Package Quantity: 25 BX
