Product Description
The Ideal B1-B wire connector is designed for efficient wire connections in electrical applications. This connector supports low-profile voltage ratings of up to six hundred volts for connectors and one thousand volts for fixtures or signs. It is suitable for use with copper wire sizes ranging from twenty-two to ten AWG.
- Rated for six hundred volts for connectors and one thousand volts for fixtures.
- Provides reliable connections for wire sizes ranging from twenty-two to ten AWG.
- UL approved, CSA certified, and RoHS compliant.
Product Highlights

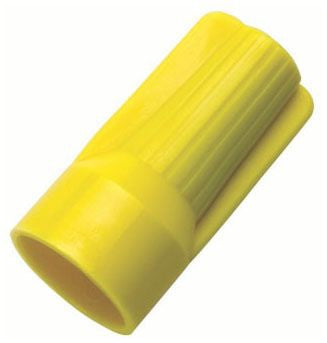

The Ideal B1-B wire connector features a yellow, zinc-plated nylon shell. The shell is designed to withstand a temperature rating of two hundred twenty-one degrees Fahrenheit. This connector is also equipped with a spring-type live action for ease of use.
Product Information
Standard Information
-
Manufacturer: Ideal
-
UPC: 78178945192
Technical Specifications
-
Voltage Rating: 600V (Connector), 1000V (Fixture/Sign)
-
Wire Sizes: 22 to 10 AWG
-
Minimum Wire Combination Size: 3 #20
-
Maximum Wire Combination Size: 3 #12
-
Temperature Rating: 221 Deg F
-
Approval: UL 486, CSA C22.2, CE RoHS Compliant
-
Packaging: 500 per Bag
