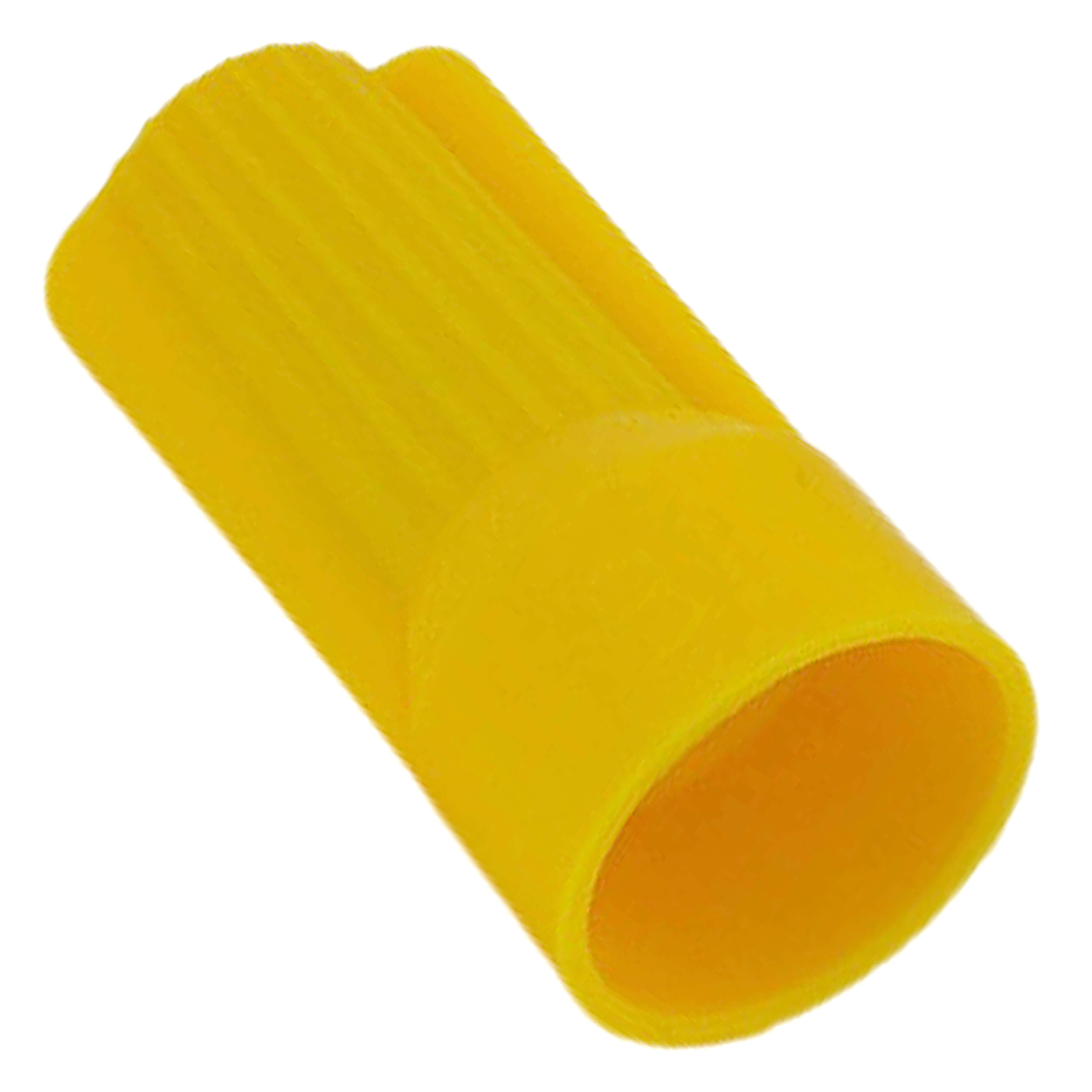

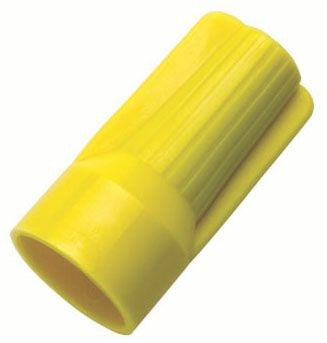

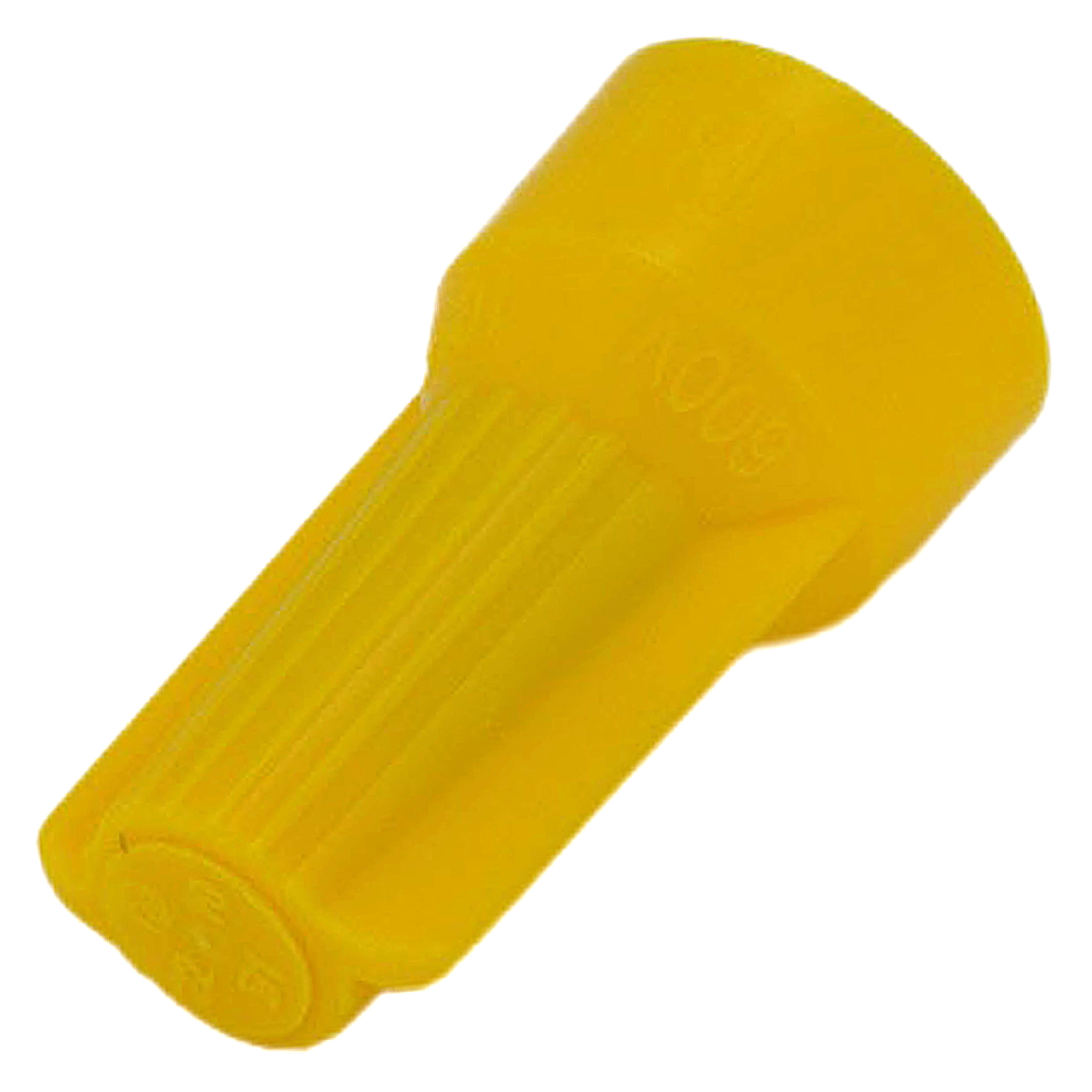

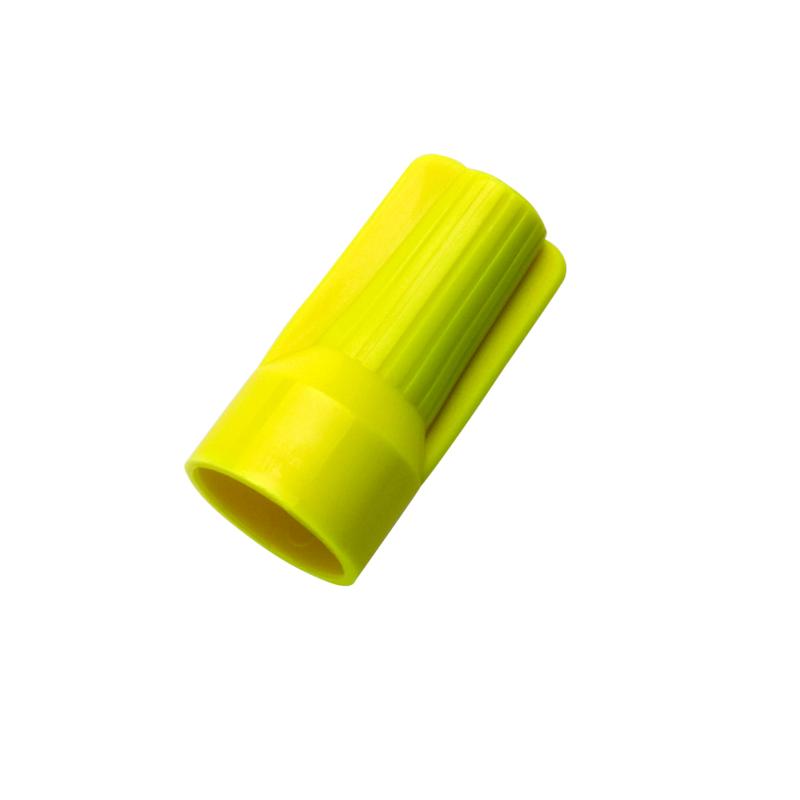

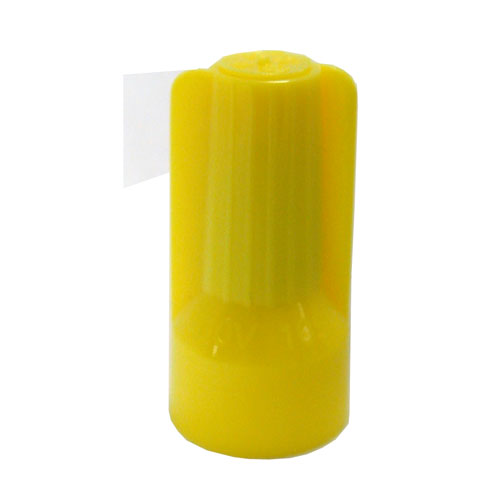

Ideal B1-B B-CAP Wire Connector 500/Bag

Product Description

The IDEAL B1-B B-CAP Wire Connector is designed for making secure wire connections. These connectors accommodate wire sizes from 22 to 10 AWG and are rated for up to 600V. The slim, classic fins and expanding interior spring provide a secure grip, making it suitable for retrofitting and updating.

• Accepts 2 #18 to 3 #12 AWG wire combinations
• Live-action, square-wire spring
• UL Listed and CSA Certified

Product Highlights

Ideal B-CAP wire connectors offer a secure grip and are easily removable for repeat use. They feature a flame-retardant shell and are UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: B1-B
• Country of Origin: United States

Technical Specifications

• Wire Type: Copper
• Voltage Rating: 600 Volt (Connector), 1000 Volt (Fixture/Sign)
• Wire Size: 22 to 10 AWG
• Minimum Wire Combination Size: (3) #20
• Maximum Wire Combination Size: (3) #12
• Spring Type: Live Action
• Shell Material: Zinc Plated Nylon
• Temperature Rating: 221 Deg F
• Standard Package: 500 per Bag
• Approval: UL 486, CSA C22.2, CE
• RoHS Compliant: True
• Material: Steel (Insert)
• Applicable Standard: IEC 998-2-4
• AWG: 22 to 10 AWG
• Brand: IDEAL
• Part Number: B1-B
• Product Type: Wire Connectors & Terminals
• Number of Pieces: 500
• Packaging: Retail
• Country of Origin: United States
• UPC: 781789451923
• Voltage: 600 V
• Brand Name: IDEAL Electrical
• Vendor Alias: B1-B
• Type: B-Cap® Wire Connector
• Max. Voltage Rating (V): 600
• Temp. Rating (°F): 221 (105°C)
• Width (In.): 0.47
• Standards: UL Listed and CSA Certified
• Height (In.): 0.97
• Wire Range (AWG): 22 to 10 (3 #20 Min. to 3 #12 Max.)
• Units Per Bag: 500
