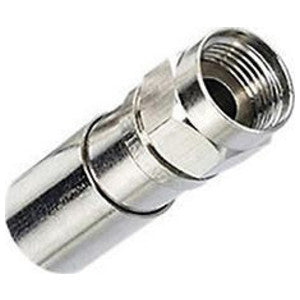

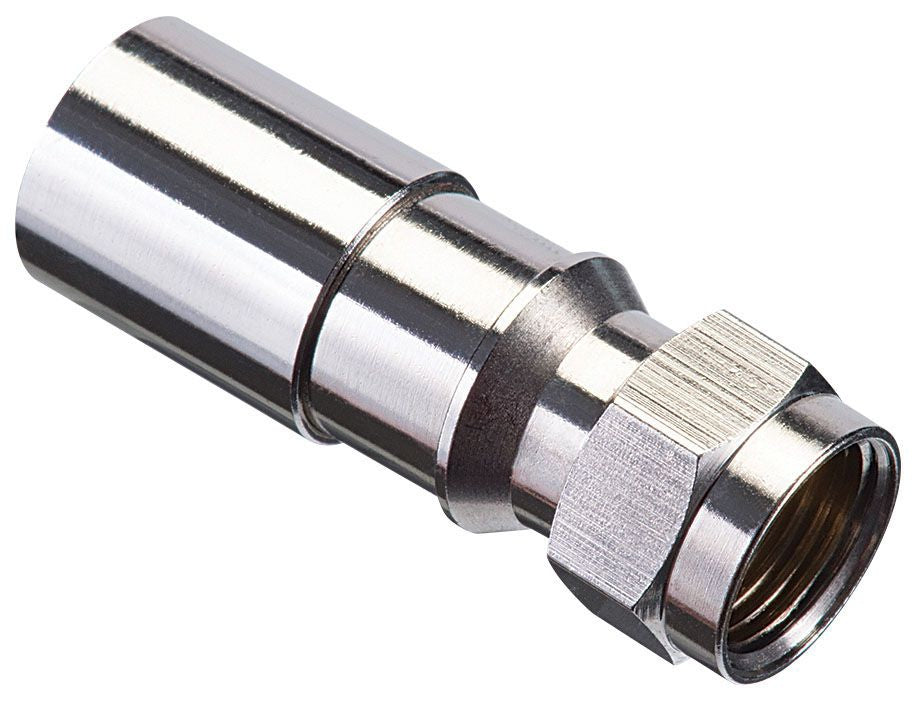

Ideal 92-650 Type F Compression Connector RG-6 Cable 50/Jar

Product Description

The IDEAL 92-650 Type F Compression Connector is designed for RG-6 coaxial cables, including regular, tri-shield, and quad-shield types. This nickel-plated brass connector provides a 75 Ohm impedance connection, suitable for satellite and cable TV applications. Its patented compression sleeve design ensures a robust, weatherproof seal for both indoor and outdoor use, accommodating an overall jacket diameter of 0.260 to 0.305 inches and a dielectric diameter of 0.175 to 0.183 inches.

• Fits 60% regular/tri/quad cables
• Nickel plated brass construction for superior corrosion resistance
• Approved for use by satellite and cable TV companies

Product Highlights

Durable nickel-plated brass F-type compression connector for RG-6 coaxial cables, ideal for satellite and cable TV.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 92-650
• Country of Origin: China

Technical Specifications

• Connector Type: F-Type Compression
• Finish: Nickel Plated
• Material: Nickel Plated Brass
• Impedance: 75 Ohm
• Cable Type: RG-6, RG-6 Quad, RG-6 Plenum, RG-6 Quad Plenum
• Manufacturer: Ideal Industries
• Sub Brand: RTQ, XR
• Overall Jacket Diameter: 0.260 - 0.305 IN
• Dielectric Diameter: 0.175 - 0.183 IN
• Configuration: Straight
• Application: Satellite, Cable TV
• Bandwidth: 3 GHz
• Conductor Material: Copper
• Shielded: Shielded
• Installation Type: Compression
