Ideal 86-955 connector jellybean splc butt 100/pk

Product Description

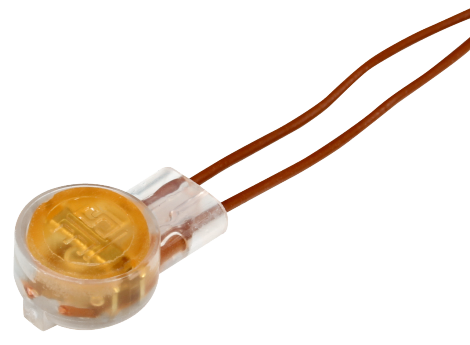

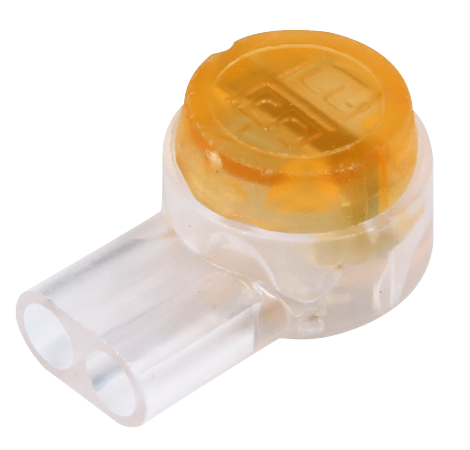

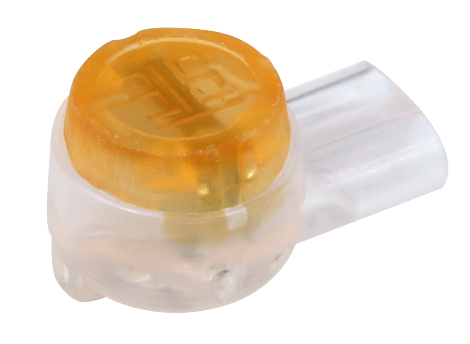

The IDEAL 86-955 Butt Splice Jellybean Connector is a 2-port, series UR2 connector for solid conductors. These IDC insulation displacement connectors are used to repair, extend or add new lines in telecommunications, voice, and low-voltage applications. They feature an internal moisture-resistant gel sealant for protection in outdoor locations.

• Two wire IDC connector with internal moisture sealant
• Fully insert unstripped wires and crimp with the 33-719 or equivalent tool
• For splicing or repairing low voltage cables in telecommunications, voice, and data applications

Product Highlights

Ideal jellybean connectors are perfect for splicing or repairing low voltage cables. They feature an internal moisture-resistant gel sealant to protect the splice in outdoor locations.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 86-955
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Type: 2-Port
• Series: UY2
• Manufacturer: Ideal Industries
• Conductor Size: 26 to 19 AWG
• Conductor Type: Solid
• Catalog Number: 86-955
• Brand: Ideal Industries
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• UPC: 783250869558
• GTIN: 00783250869558
• Data Cable Type: CAT3, CAT5e, CAT6
• Termination Method: Crimp
• Maximum Wire Gauge: 26 AWG
• Minimum Wire Gauge: 19 AWG
• Positions/Contacts: 2P1C
• Wire Type: Solid, Stranded
• Impedance: N/A
• Feed-Thru: No
• Product Range: UY2 Series
• Termination: IDC / IDT
• Wire Size AWG Min: 26AWG
• Wire Size AWG Max: 19AWG
• Conductor Area CSA: -
• Terminal Type: Butt Splice
• Insulator Colour: Yellow
• Insulator Material: -
• Terminal Material: -
• SVHC: No SVHC (08-Jul-2021)
• Model: 86-955
• 12-Digit UPC: 783250869558
• MDM Pkg GTiN: 00783250869558
• Product UPC: 78325086955
