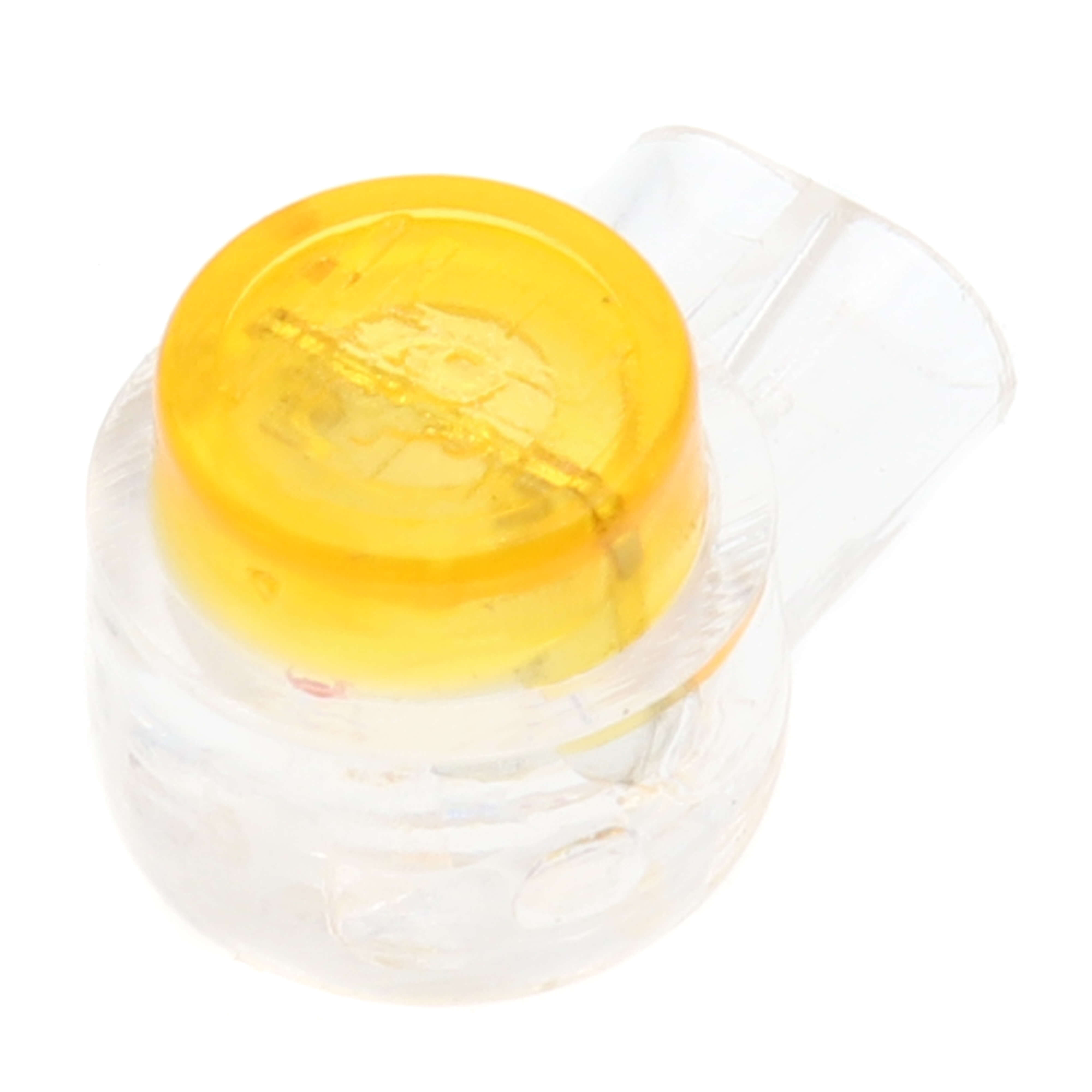

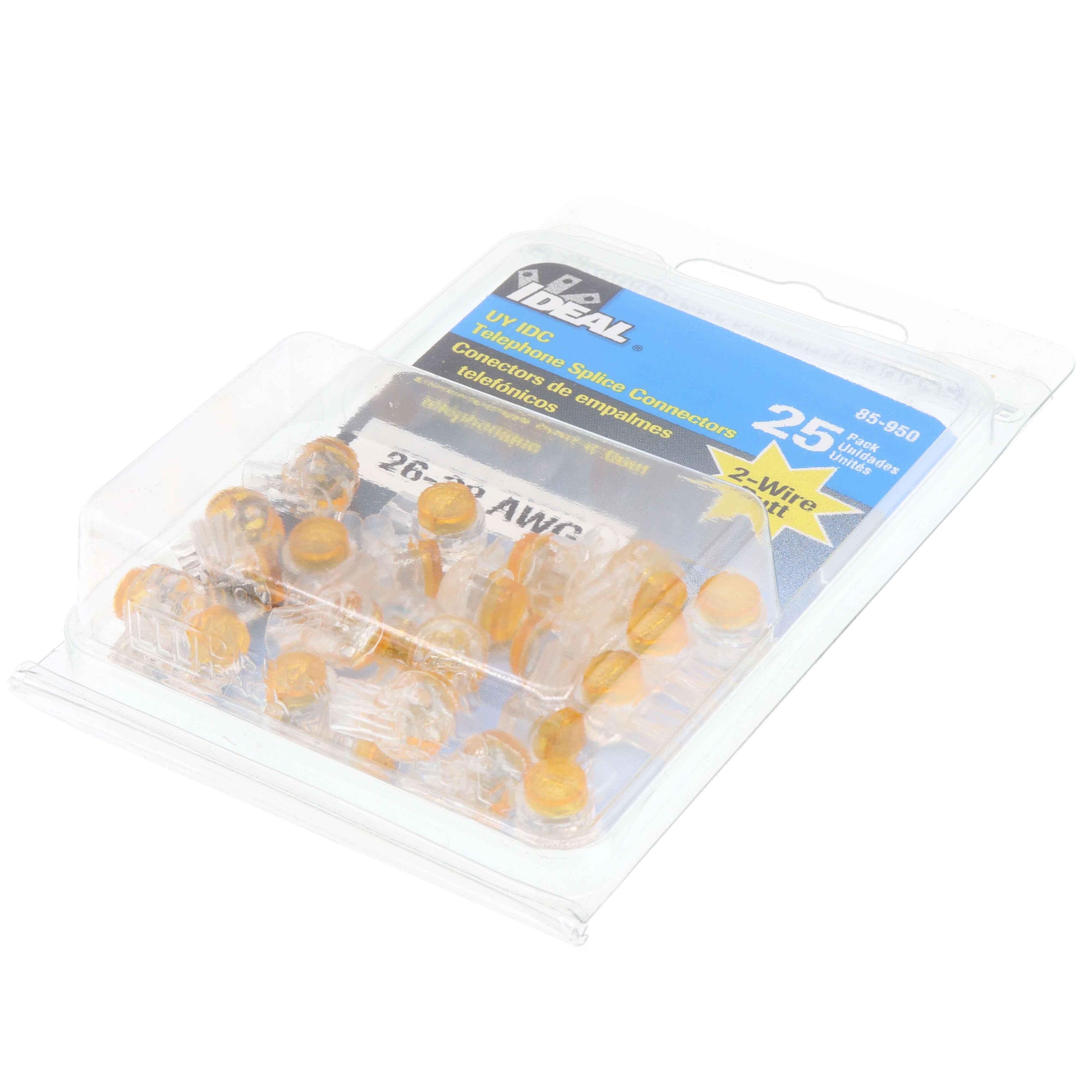

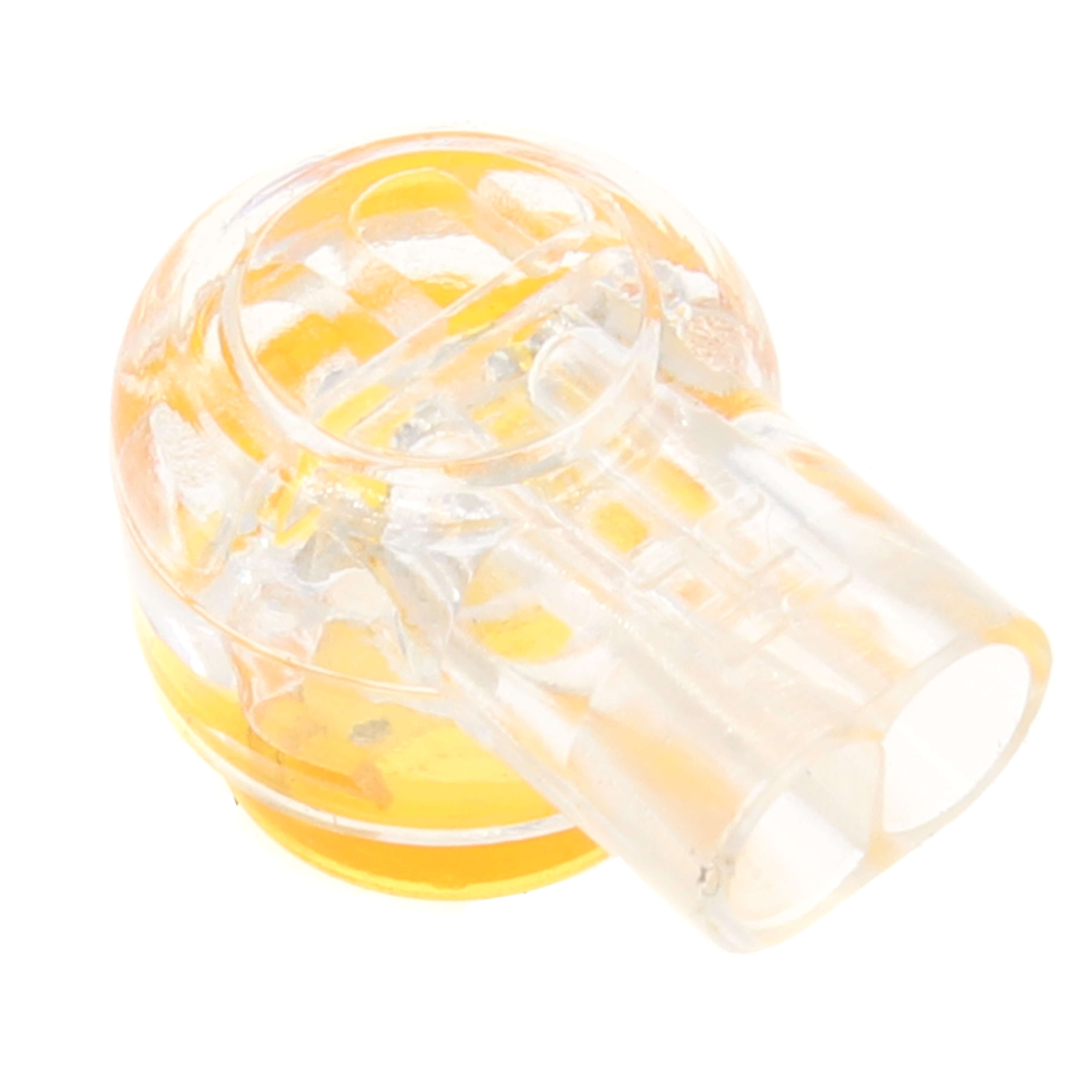

Ideal 85-950 insulation displacement connector UY-I butt splice

Product Description

The IDEAL 85-950 insulation displacement connector is a UY-I butt splice traditionally used in landline telephone applications. These IDC connectors can splice, tap, or repair damaged low voltage conductors in voice and data applications without stripping wires before crimping. Designed for solid copper single-conductor wire, 22-26 AWG.

• Quick, easy one-step splicing
• Moisture-resistant sealant protects wires from corrosion
• Use with solid copper single-conductor wire

Product Highlights

This gel-filled butt splicing connector is for 2-wire applications with a maximum insulated O.D. of .060 IN (1.52 MM).

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 85-950
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 85-950
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Application: Splicing of 2 conductors of 22 -26 AWG UTP communication wiring
• Color: Yellow
• Connection: 2-Wire
• Insulation: O.D 060 IN Max
• Special Features: Features: Quick, Easy One-Step Splicing; Moisture-Resistant Sealant Protects Wires From Corrosion; Use With Solid Copper Single-Conductor Wire; Gel Filled Butt Splicing Connector For 2 Wire Application; For Solid Wire Conductors Of 22-26 AWG; Maximum Insulated O.D. Of .060 IN (1.52 MM)
• UPC: 783250859504
• GTIN: 00783250859504
• Item Type: UY-I, Butt Splice
• Wire Type: Copper
• Wire Size: 26 to 22 AWG Solid
• Connection Type: Butt Splice
• Maximum Insulation: 0.06 Inch
• Number of Wire: 2
• Cable Size: 22-26 AWG
• Cable Type: Solid Copper
• Number of Conductors: 1
• Type: UY-I, Butt Splice
