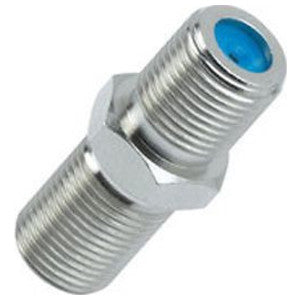

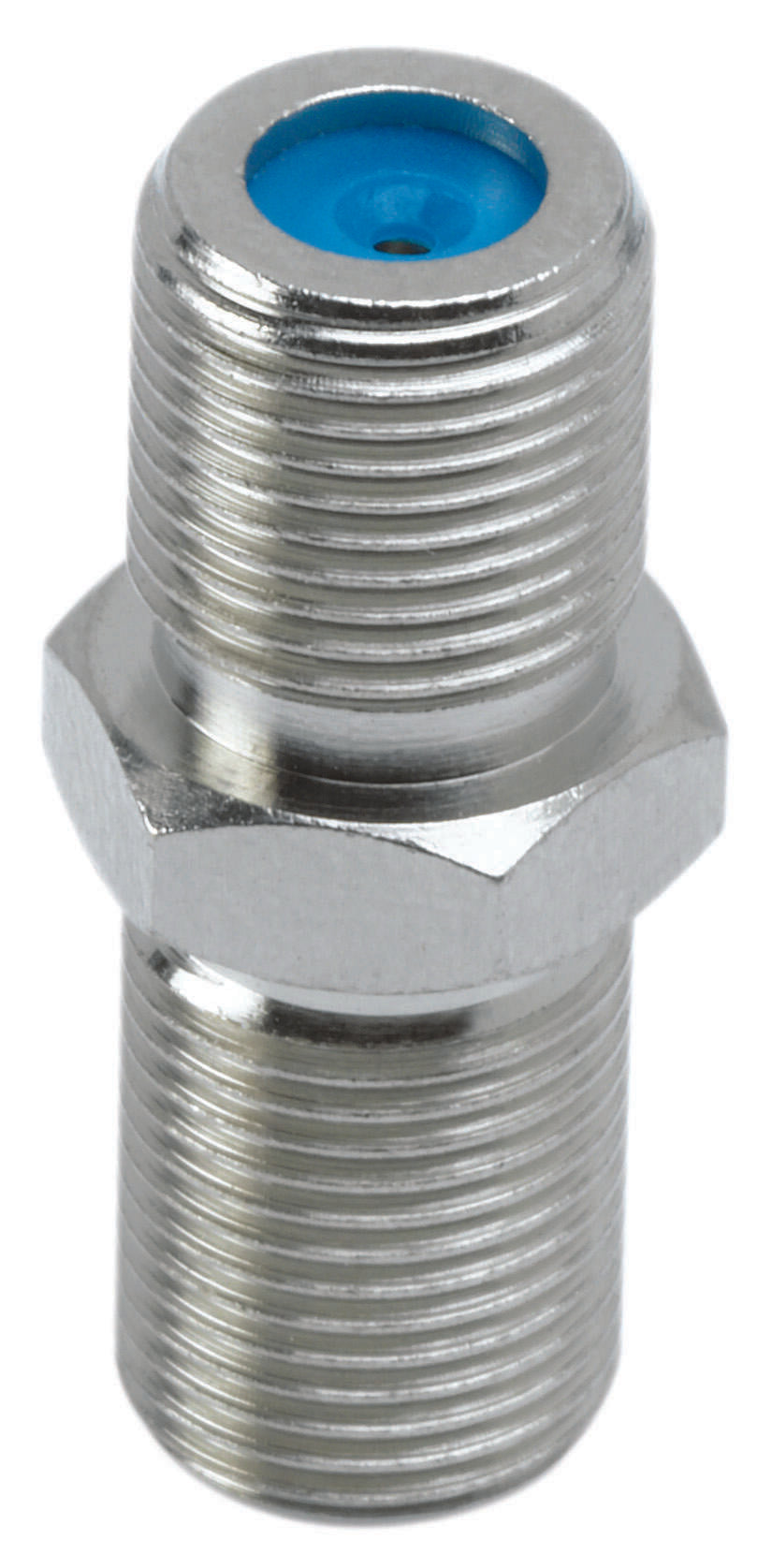

Ideal 85-340 F-splice adapter 3GHz 10 pack

Product Description

The IDEAL 85-340 F-Splice Adapter extends coaxial cable runs for all cable and satellite TV applications, including High Definition. This adapter is designed for 75 Ohm applications up to 3GHz, ensuring high bandwidth from 0MHz to 3GHz. It accepts male F connectors on both sides, facilitating easy connection and maintaining signal strength with less than 0.25 dB insertion loss.

• Nickel plated brass construction ensures durability and reliable performance.
• Supports 75 Ohm applications up to 3GHz for high-frequency signal transmission.
• Accepts male F connectors on both sides for extending coaxial cable runs.

Product Highlights

Best for High Definition applications with minimal signal degradation.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 85-340
• Country of Origin: China

Technical Specifications

• MPN: 85-340
• Manufacturer: Ideal Industries
• Made in USA: No
• Connection: F
• Type: F-Splice Adapter
• Brand: IDEAL
• UNSPSC: 39121433
• Sub Brand: Ideal
• Commodity Code: 5715
• Bandwidth: 0 MHz - 3 GHz
• Insertion Loss: < 0.25 dB
• Return Loss: > 25 dB
• ECCN: EAR99
• UPC: 78325085340
• Conductor Material: Copper
• Impedance: 75 Ohm
• Shielded: Yes
