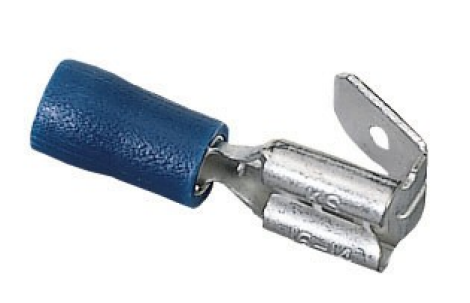

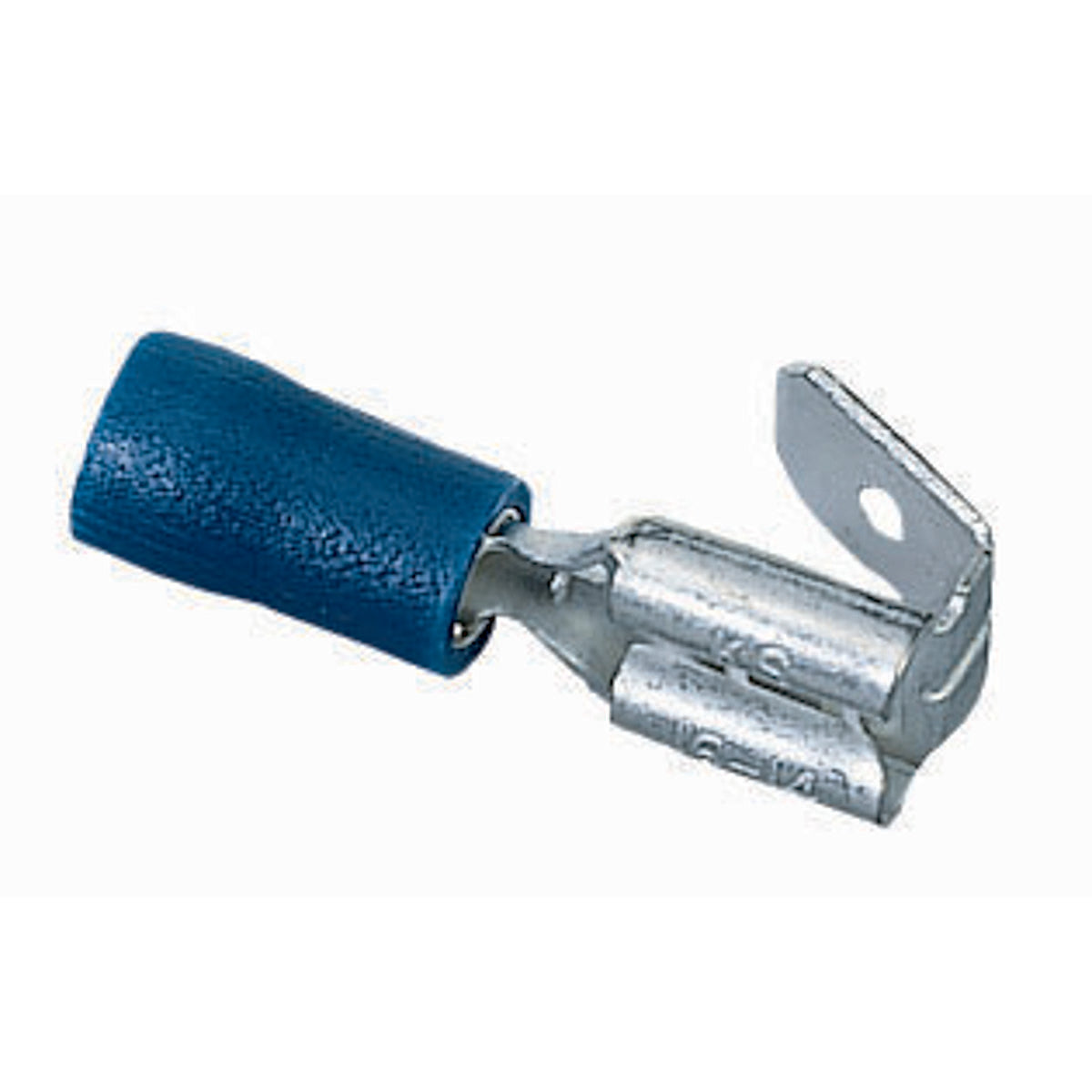

Ideal 83-9621 Stack Disconnect Vinyl Insulated Multi 16 - 14 AWG

Product Description

The IDEAL 83-9621 stack disconnect is a vinyl insulated multi disconnect designed for durability and ease of use. It features butted seam-construction that prevents splitting under maximum pressure and internal barrel serrations that grip wires tightly. Suitable for 16 - 14 AWG wire sizes and a voltage rating of 300V.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support

Product Highlights

Durable, color-coded disconnects with internal barrel serrations for secure wire grip and reduced electrical resistance.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9621
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9621
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Insulation: 0.185 IN Diameter
• Special Features: Tab Size: 0.250 IN X 032 IN; Temperature Rating: 75 DEG C
• Standard: CUL Listed, RoHS
• Item Type: Vinyl Insulated Multi
• Voltage Rating: 300
• Wire Size: 16 - 14 AWG
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Rated Voltage: 300V
• Maximum Temperature (C): 75°C
• Maximum Wire Gauge: 16 AWG
• Minimum Wire Gauge: 14 AWG
• Number of Poles: 2
• Stud Size: 1/4"
• Terminal Type: Tab
• Wire Type: Solid, Stranded
• Connector Type: Multi-Stud
• Terminal: Disc Stackable
• Insulation Material: Vinyl
• Material: Vinyl
• Width: 0.25"
