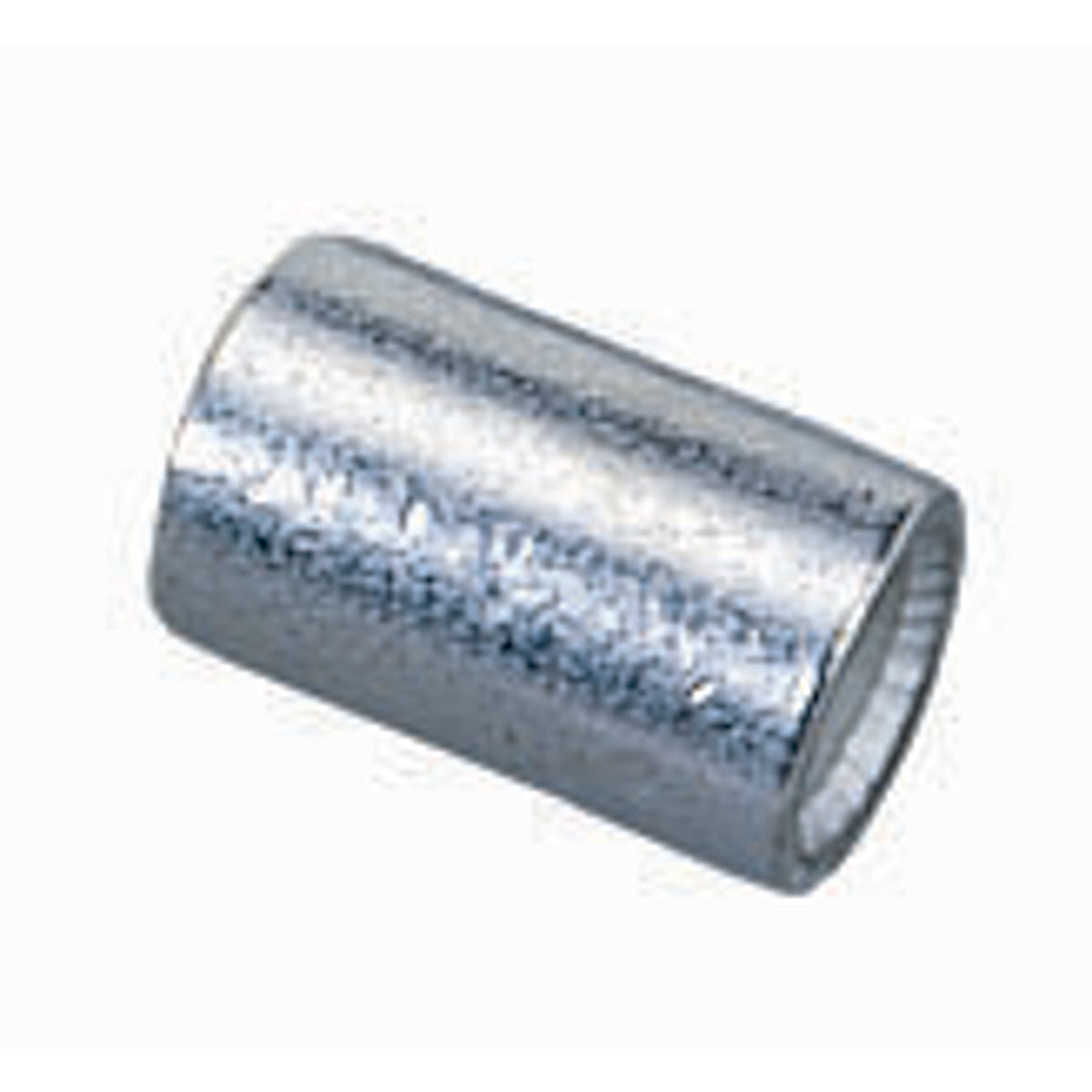

Ideal 83-9071 splice terminal bare parallel 22 to 18 awg

Product Description

The IDEAL 83-9071 splice terminal is a bare parallel connector designed for 22 to 18 AWG wires. It features tin-plated brass construction for corrosion resistance and butted seams to prevent splitting under pressure. Internal barrel serrations grip wires tightly. Ideal for electrical systems requiring secure and durable connections.

• Tin-Plated Brass Construction For Corrosion Resistance
• Brazed Or Butted Seams Prevent Splitting
• Funnel Entry Insulators

Product Highlights

Bare parallel splice terminal with tin-plated brass construction, ideal for creating secure and corrosion-resistant connections in electrical systems.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9071
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9071
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Finish: Tin-plated
• Material: Brass
• Special Features: Features: Tin-Plated Brass Construction For Corrosion Resistance; Brazed Or Butted Seams Prevent Splitting; Funnel Entry Insulators; Beveled Barrel Openings Provide Easy Wire Entry; Clearly Marked Wire And Stud Ranges; Color-Coded Insulation
• Standard: RoHS
• Item Type: Bare Parallel
• Size: 22 To 18
• Temperature Rating: 105 DEG C
• Voltage Rating: 600 V Max
• Termination Method: Crimp
• Number of Ports: 2
• Maximum Rated Voltage: 600V
• Maximum Temperature (C): 105�C
• Maximum Wire Gauge: 22 AWG
• Minimum Wire Gauge: 18 AWG
• Number of Poles: 1
• Stud Size: N/A
• Terminal Type: Parallel
• Wire Type: Solid, Stranded
• Insulated: No
• UPC: 783250490370
• Category: Business & Industrial
• Type: Parallel Splice
• AWG Min: 22
• Conductor Max: 18 AWG
• Length: 0.315 in.
• Package Quantity: 25
