Ideal 776311 Indicator Light Raised 1.2 W

Brand: IDEAL
SKU: 776311
Availability: Out Of Stock
$22.08
$22.08
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

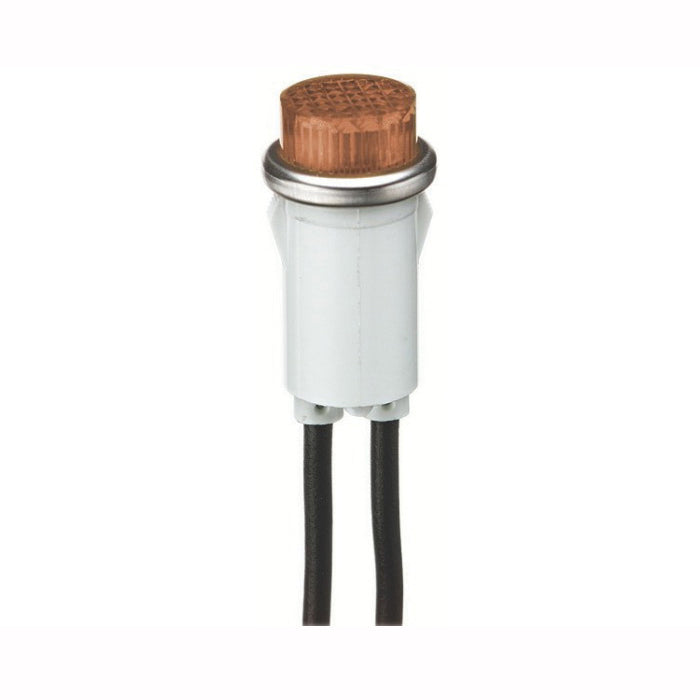

The IDEAL 776311 indicator light features a nylon body with a raised transparent polycarbonate lens and stainless steel bezel. It has a 94V-2 flammability rating and a 1/2 inch mounting diameter. The lamp voltage is AC/DC and operates at a wattage of 1.2W.

  • Nylon body with raised transparent polycarbonate lens and stainless steel bezel
  • 94V-2 flammability rating
  • 1/2 in. mounting diameter

Product Highlights

This raised indicator light is ideal for various applications, offering a durable construction and reliable performance. It is certified by CSA, UL Listed, and VDE.

Product Information

Standard Information

  • Brand: IDEAL
  • Manufacturer Part Number: 776311
  • Country of Origin: United States
Technical Specifications
Catalog Number
776311
Manufacturer
IDEAL
Brand
Ideal
Country of Origin
United States
Made in USA
Yes
Amperage Rating
0.04 A
Mounting
1/2 IN Diameter
Special Features
Features: Nylon Body With Raised Transparent Polycarbonate Lens And Stainless Steel Bezel, 94V-2 Flammability Rating; Lamp Voltage Is AC/DC; 1/2 IN Mounting Diameter; Operating Temperature: Nylon Body: 140 DEG C, Polycarbonate lens: 135 DEG C; Bezel: 0.100 IN Height; Flammability Rating: 94V-2; Material: Nylon Body With Raised Transparent Polycarbonate Lens And Stainless Steel Bezel; Lamp Type: Incandescent; Termination Style: 6 IN Wire Leads; Lamp Height: 0.200 IN
Standard
CSA, UL Listed, VDE Certified
Item Type
Raised
Operating Temperature
Nylon Body: 140 DEG C, Polycarbonate Lens: 135 DEG C
Voltage Rating
28 VAC/VDC
Wattage
1.2 W
Lamp Input Type
28 VAC/VDC
Lamp Type
Incandescent
Lens Style/Size
Raised, Transparent
Lens Material
Polycarbonate
Body Material
Nylon
Bezel Material
Stainless Steel
Termination Style
6 Inch Wire Lead
Temperature Rating
140 Deg C (Nylon Body), 135 Deg C (Polycarbonate Lens)
Average Life
25000 hr
Type
Raised
Brand Name
Ideal
Amperage
40 mA
Average Rated Life
25000 hr
Base Material
Nylon Body with Stainless Steel Bezel
Mounting Type
1/2 in dia
Voltage
28 Volt
Lens Type
Raised
Shape
Round
Terminal Type
Wire Lead
Standard & Approvals
CSA Certified, RoHS Compliant, UL Listed, VDE Certified
Environmental Conditions
-40 to 135/-40 to 140 deg C
Sub_Brand
Ideal
