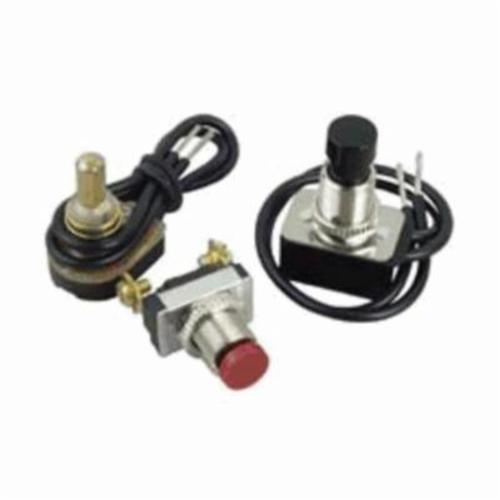

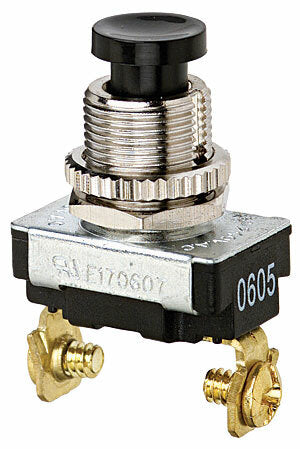

Ideal 774022 Push Button Switch Momentary Contact 120/240 VAC SPST

Product Description

The Ideal 774022 is a push button switch designed for momentary contact applications with a voltage rating of 120 to 240 VAC. This switch features a single pole, single throw (SPST) configuration and is suitable for various household uses, including lamps and motor controls. It comes with a black plastic actuator and offers easy setup with screw terminals for wire leads.

• Voltage Rating: 120 to 240 VAC
• Amperage Rating: 6.3 AMP
• Number of Poles: 1

Product Highlights

Ideal for household appliances, this switch has a momentary action perfect for various control applications, ensuring reliability and ease of use.

Product Information

Standard Information

• Brand: Ideal
• Manufacturer: Ideal Industries

Technical Specifications

• Catalog Number: 774022
• Action: SPST
• Contact Configuration: Normally Open (NO)
• Connection: Screw, 2 Terminals
• Wire Leads: 18 AWG, 6 inches stripped
• Mounting Hole Diameter: 0.5 inches
• Size: 0.88 inches length x 0.54 inches width x 0.35 inches height
• Country of Origin: China
• RoHS Compliant: Yes
• UPC: 781789740225
