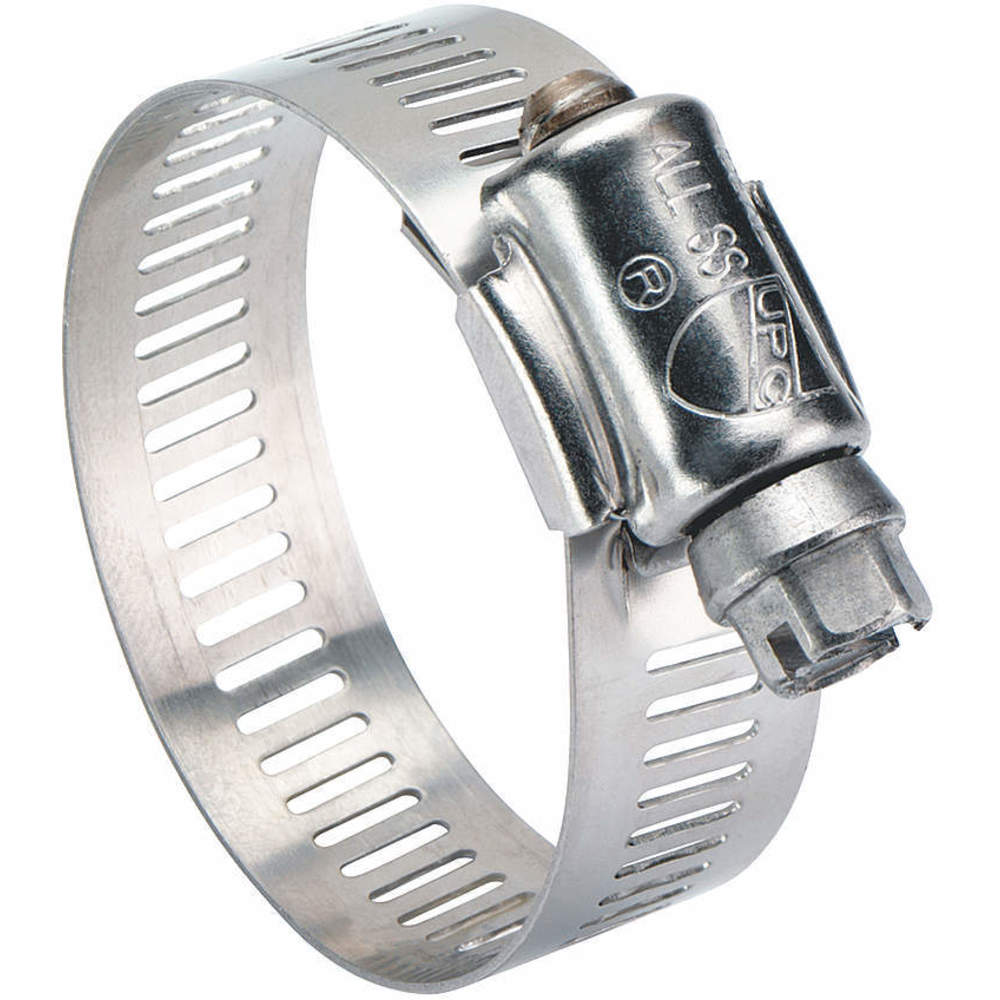

IDEAL 6340 HY-GEAR Hose Clamp

Product Description

The IDEAL 6340 HY-GEAR hose clamp is a reliable option for securing hoses and tubes. Made from stainless steel, its construction prevents corrosion. The worm gear mechanism is operated by a slotted hex screw, allowing for easy tightening and adjustment of the clamp's diameter. This clamp can accommodate a variety of hose sizes.

• Worm gear mechanism for secure clamping
• Stainless steel band and housing for durability
• Adjustable diameter to fit different hose sizes

Product Highlights

This hose clamp features a user-friendly design that adjusts easily, making it suitable for a range of applications in plumbing and HVAC systems.

Product Information

Standard Information

• Brand: IDEAL
• MPN: 6340

Technical Specifications

• Item: Worm Gear Hose Clamp
• Band Material: Stainless Steel
• Band Material Grade: Grade 201/301
• Band Width: 9/16 inches
• Clamp Type: Interlocked
• Housing Material: Stainless Steel
• Housing Material Grade: Grade 201/301
• Maximum Clamp Diameter: 3 inches
• Metric Diameter Maximum: 76 mm
• Metric Diameter Minimum: 51 mm
• Minimum Clamp Diameter: 2 inches
• SAE Number: 40
• Screw Material: Stainless Steel
• Screw Material Grade: Grade 305
• Screw Size: 5/16 inches
• Band Length: 0.56 inches
• Band Type: Perforated
• Drive Type: Slotted Hex
• Hex Size: 5/16 inches
• Band Slots (Rectangular): Ideal
• Grade: 300
• Finish: Stainless Steel
