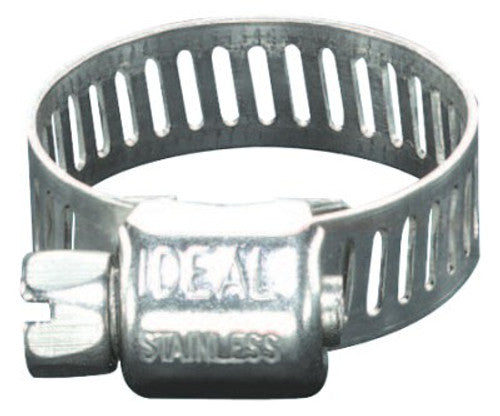

IDEAL 62P20 Micro-Gear Hose Clamp

Product Description

The IDEAL 62P20 Micro-Gear hose clamp is suitable for small hose applications, including those for emission control, fuel lines, and vacuum hoses. This clamp has a band width of five-sixteenths inches and a low-profile housing, allowing it to fit in tight spaces.

• Designed for hoses with a diameter ranging from three-quarters inches to one and three-quarters inches.
• Constructed from durable 301 stainless steel.
• Includes a one-fourth slotted hex head screw for easy tightening.

Product Highlights

This hose clamp is essential for maintaining secure connections in various plumbing and automotive applications.

Product Information

Standard Information

• Series: 62P
• Sub Brand: Micro-Gear

Technical Specifications

• Nominal Size: 20
• Minimum Clamp Diameter: three-quarters inches
• Maximum Clamp Diameter: one and three-quarters inches
• Hose I.D. [Max]: one and one-quarter inches
• Hose I.D. [Min]: one inch
• Width: five-sixteenths inches
• Material: Stainless Steel 201/301, Housing & Band
• Material Construction: 301 Stainless Steel
• Bolt/Screw Material: Carbon Steel Plated
• Bolt/Screw Size [Nom]: one-fourth inches
• Bolt/Screw Type: Slotted Hex Head
• Torque Rating: 1.1 - 1.7 N-m
• Weight: 0.02 lb
• Product Type: Hose Clamp
