Ideal 6219Y8G No-Hub Coupling 3 in

Product Description

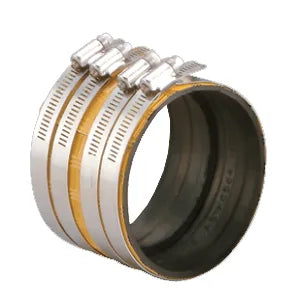

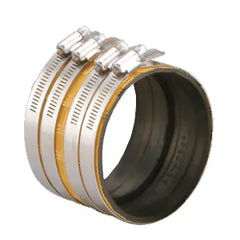

The IDEAL 6219Y8G No-Hub Coupling is a 3-inch heavy-duty component designed for plumbing and drainage systems. Manufactured in the USA, this coupling serves as a value-engineered alternative, offering a lower-cost choice without compromising performance. It features a 5/16 inch hex head screw and is compliant with ASTM C564, ASTM C1540, and FM 1680 (Class 1 and 2) standards, ensuring reliable connections for waste systems.

• Manufactured in the USA for quality assurance.
• Features a 5/16 inch hex head screw for secure installation.
• Complies with ASTM C564, ASTM C1540, and FM 1680 (Class 1 and 2) standards.

Product Highlights

This 3-inch heavy-duty no-hub coupling provides a certified, cost-effective solution for plumbing applications.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 6219Y8G
• Country of Origin: USA

Technical Specifications

• Size: 3 in
• Installation Torque: 80 in-lbs
• Number of Clamps: 4
• Shield Material: 304 SS
• Band Material: 304 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 305 SS
• Gasket Material: ASTM C564 Compliant
• Ultimate Torque: 100 in-lbs
