Ideal 46-402 Kit Splice UGND Polyolefin BK 600VAC

Product Description

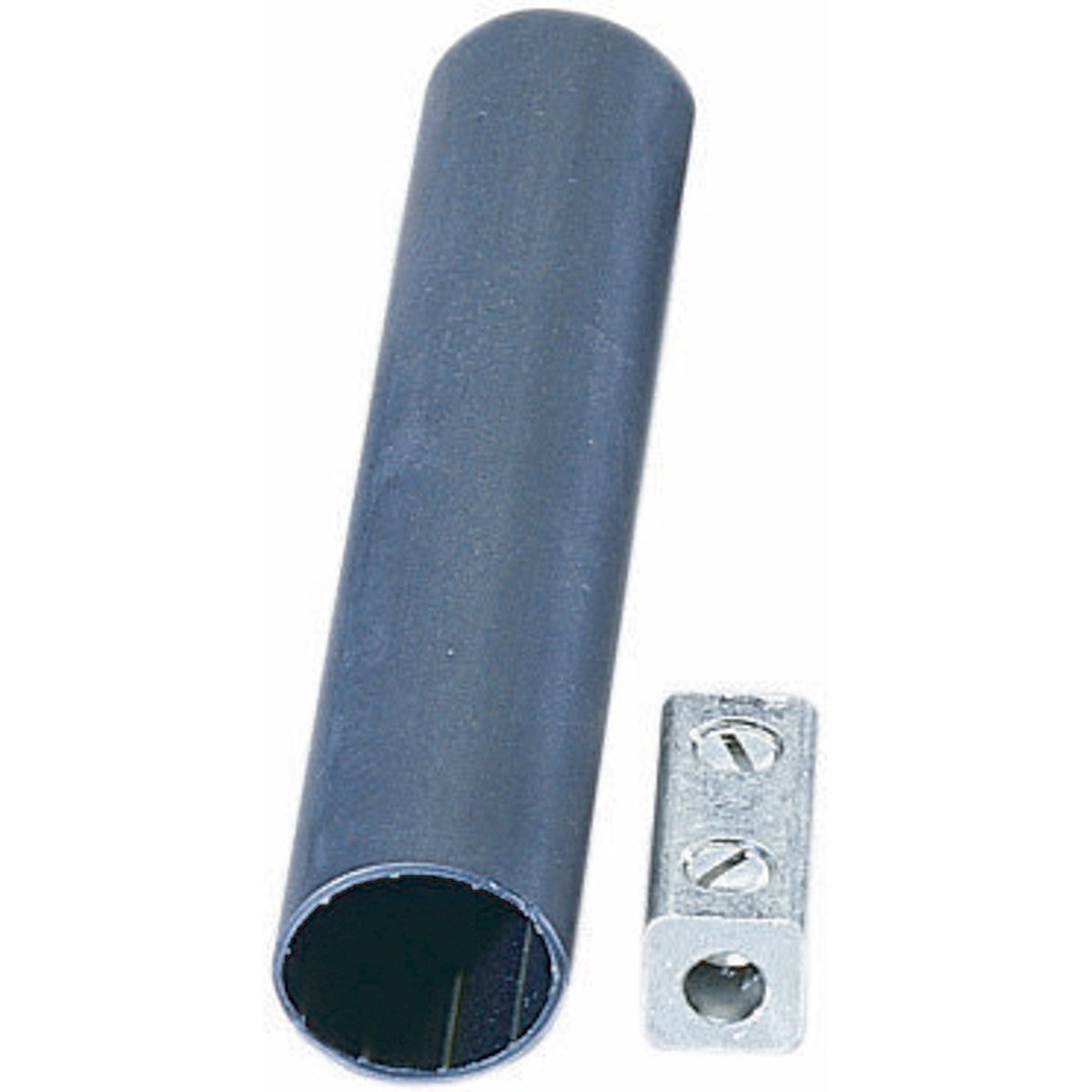

The Ideal 46-402 Thermo-Shrink Underground Splice Kit is designed for applications involving 4 to 1/0 AWG wire. This kit ensures reliable performance with a temperature rating of up to 221 degrees Fahrenheit and is suitable for use in environments up to 600 volts. It features heavy wall heat shrinkable tubing made of cross-linked polyolefin, providing effective insulation and protection.

• Direct burial rated
• Heavy-wall heat shrinkable tubing with a 3:1 shrink ratio
• Adhesive liner for complete insulation

Product Highlights

This splice kit simplifies installations due to its one-piece design and helps save time and costs. Ideal for both aluminum and copper cables, it meets the requirements set by the 2005 NEC Code, making it a compliant choice for electrical applications.

Product Information

Standard Information

• Brand: Ideal Industries
• Manufacturer Part No: 46-402

Technical Specifications

• Cable Size: 4 to 1/0 AWG
• Temperature Rating: 221 degrees Fahrenheit
• Voltage Rating: 600 VAC
• Country of Origin: China
• Operating Temperature: 105 degrees Celsius
• Special Features: UV-resistant, RoHS compliant
• Weight: 0.25 pounds
