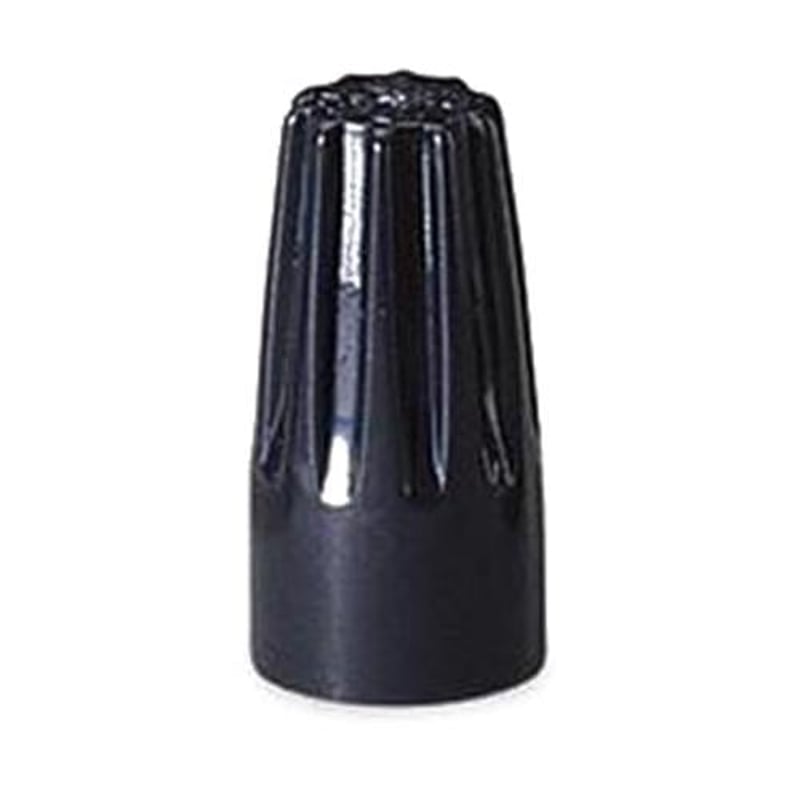

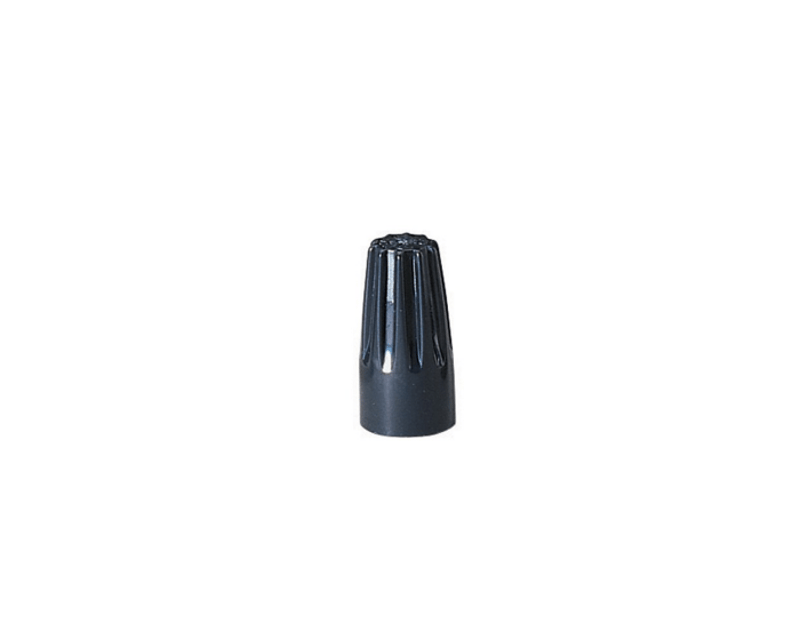

IDEAL 30-3629 High-Temp Wire Connector Model 73B Black 100/Box

Product Description

The IDEAL 30-3629 High-Temp Wire Connector is designed for high temperature applications. This model, known as 73B, allows for a secure connection for up to five conductors. It is suitable for use in tough conditions where heat may build up, such as in high wattage lighting and electrical signs.

• Temperature rated at 150 degrees Celsius (302 degrees Fahrenheit).
• Flame-retardant thermoplastic polyester material.
• Compatible with 22 to 14 AWG conductor sizes.

Product Highlights

The Wire-Nut connector is easy to apply and reusable, which makes circuit changes simple.

Product Information

Standard Information

• Brand: IDEAL
• MPN: 30-3629

Technical Specifications

• Conductor Range: 22 - 14 AWG
• Voltage Rating: 600 V
• Width: 7/16 inches
• Height: 55/64 inches
• Material: Thermoplastic polyester
• Number of Conductors: 1 to 5
• Environmental Conditions: Tough, UL 94V-0 flame-retardant shell
• Applications: Insulating or joining wires in high heat situations
