Product Description

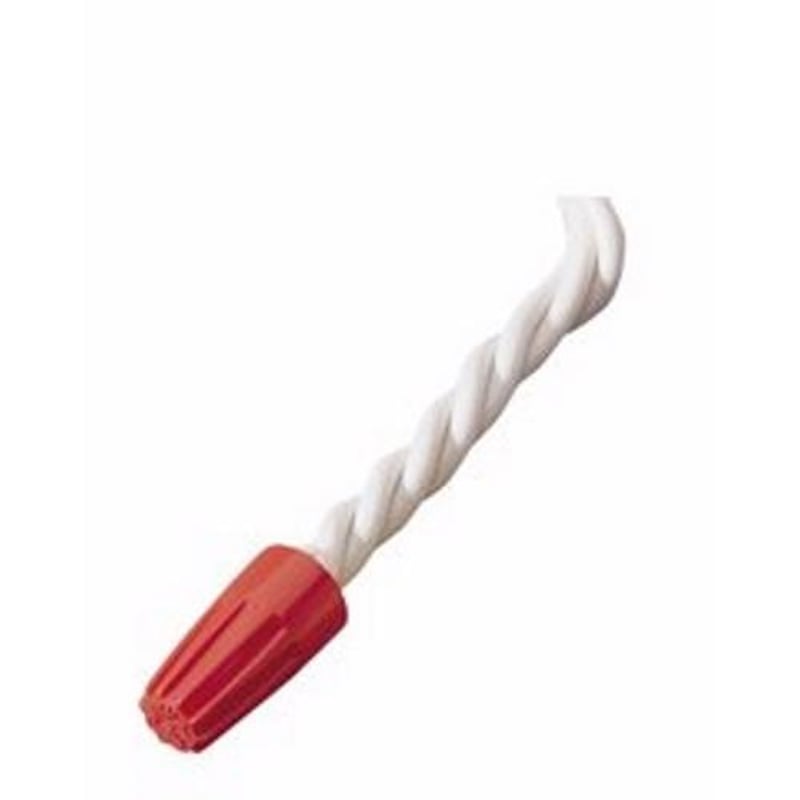

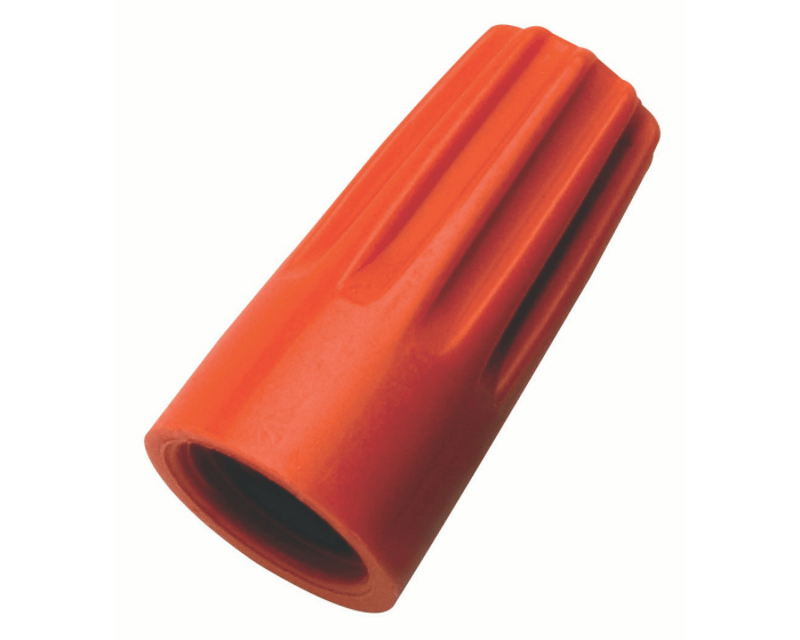

The IDEAL 30-273 Wirenut Wire Connector is a reliable solution for joining two or more conductors. This connector is designed to handle a range of wiring applications, suitable for conductors from twenty-two to fourteen AWG. The connection is made easy with its twist-on feature, which allows for a secure grip without the need for pre-twisting the wires.
- Number of Conductors: 1 to 5
- Material: Flame-retardant polypropylene
- Voltage Rating: 600 V
Product Highlights
This connector features a rugged design with a flame-retardant shell that withstands tough environmental conditions.
Product Information
Standard Information
-
Brand: IDEAL
-
Part Number: 30-273
Technical Specifications
-
Conductor Range: 22 - 14 AWG, Min 1-18 w/2-20 MAX 2-14
-
Flammability Rating: UL 94V-2
-
Environmental Conditions: UL 94V-2 Flame-Retardant Shell Rated At 105 Degrees C (221 Degrees F)
-
Application: Insulating or Joining Conductors
-
Box Quantity: 500
-
Commodity Code: 6420
-
UNSPSC: 39121445
-
Deep Skirt: Helps Protect Against Flash-Over
