Product Description

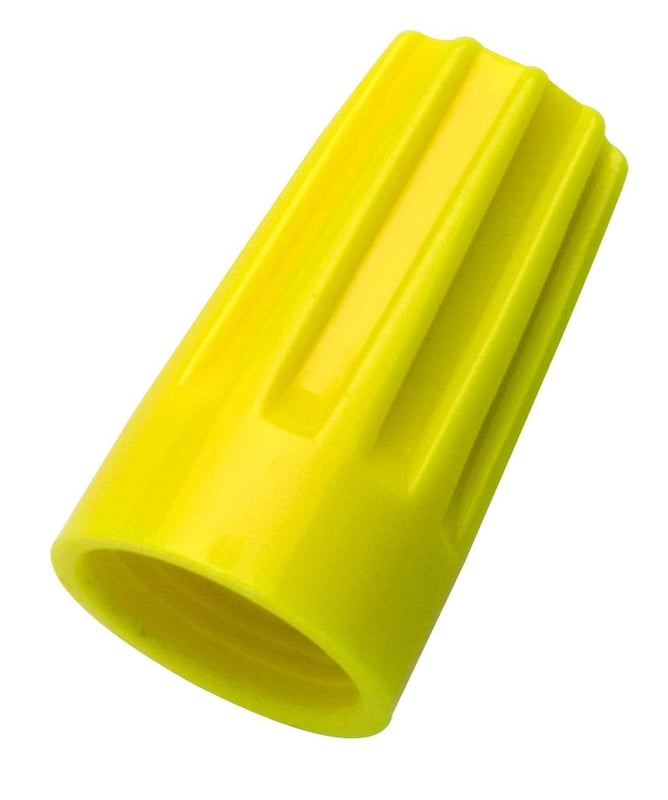

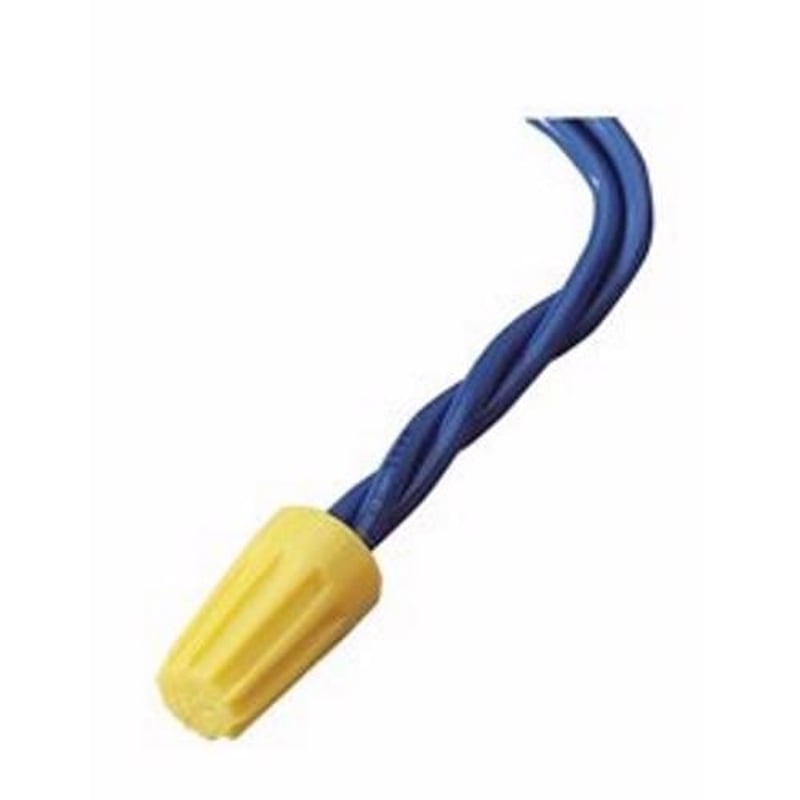

The IDEAL 30-074 Wirenut Connector, also known as Model 74B, is a reliable solution for connecting and insulating electrical conductors. With a capacity for two to four conductors, this twist-on wire connector accommodates a conductor range of eighteen to twelve AWG. The product's flame-retardant polypropylene construction ensures durability and safety under various conditions.
- Rated for voltages up to six hundred volts.
- Tough, UL 94V-2 flame-retardant shell rated at one hundred five degrees Celsius.
- Easy to twist on, providing a secure connection without pre-twisting.
Product Highlights
This connector is suitable for a variety of electrical applications and is reusable, making it ideal for circuit changes and additions.
Product Information
Standard Information
Technical Specifications
-
Material: Flame-retardant polypropylene
-
Conductor Range: 18 - 12 AWG
-
Number of Conductors: 2 - 4
-
Voltage Rating: 600 V
-
Flammability Rating: UL 94V-2
-
Environmental Conditions: Tough
-
Model Number: 74B
-
Compliance: CSA Certified to C22.2 #188, UL Listed to 486C
