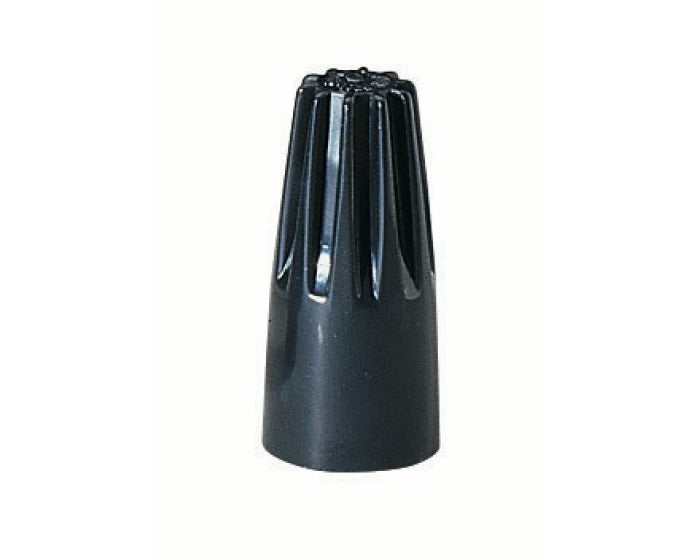

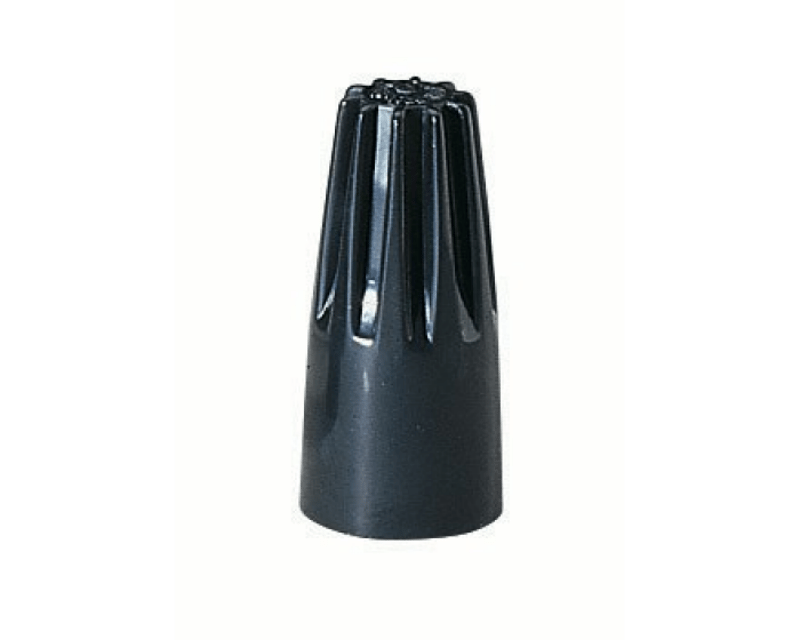

Ideal 30-059 Wire Connector Wire-Nut High Temperature Twist-On 1 to 6 22 - 12 AWG

Product Description

The Ideal Wire Connector 30-059 is designed for high-temperature applications. This wire connector accommodates one to six conductors with a conductor range of twenty-two to twelve American Wire Gauge (AWG). The thermoplastic polyester construction ensures durability and resistance to extreme temperatures.

• Color: Black
• Voltage Rating: 600V
• UL Listed and CSA Certified for safety

Product Highlights

This connector is suitable for environments requiring reliable wire connections under high heat. It is ideal for use in high-wattage light fixtures and signs.

Product Information

Standard Information

• Catalog Number: 30-059
• Manufacturer: Ideal Industries

Technical Specifications

• Material: Thermoplastic Polyester
• Conductor Range: 22 - 12 AWG
• Number of Conductors: 1 to 6
• Environmental Conditions: Tough, UL 94V-0 Flame-Retardant
• Height: 1-1/16 inches
• Width: 31/64 inches
• Special Features: Flame-retardant shell, reusable, fast installation, fixed square-wire design
