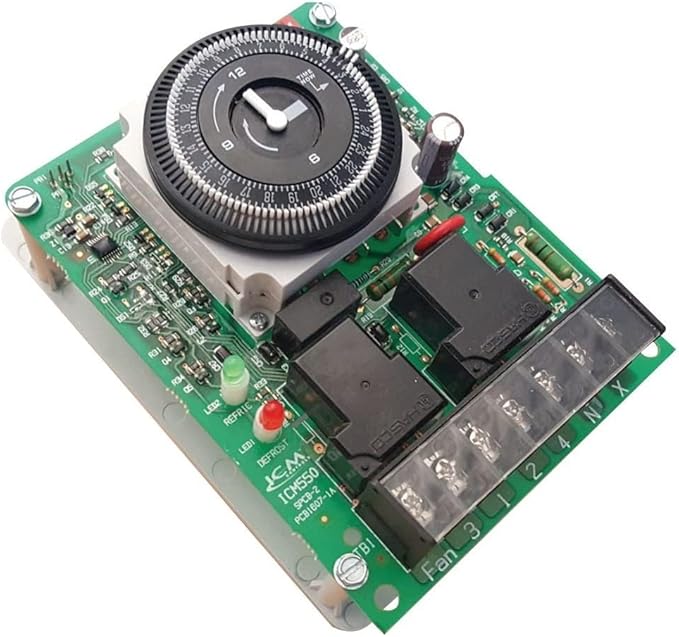

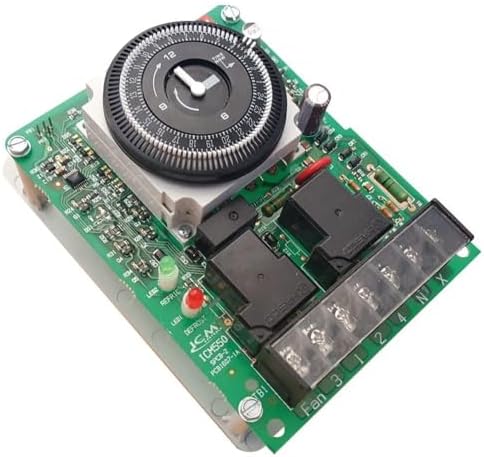

Icm Controls ICM550-LF Multi-Functional Defrost Timer 120-240V REPLACEMENT ICM550-LF

Product Description

The ICM CONTROLS ICM550-LF Multi-Functional Defrost Timer delivers dependable defrost control for commercial and residential refrigeration. This versatile control module features adjustable timing from 15 minutes to 23 hours 45 minutes. It supports timed or manual termination and multi-relay outputs to control the compressor, fan, and defrost heater. LED indicators simplify monitoring and troubleshooting.

• Adjustable timing range from 15 minutes to 23 hours 45 minutes for precise system tuning.
• Supports timed termination or manual termination to fit site needs.
• Operates on 120V to 240V AC, 60Hz, making it suitable for diverse system installations.

Product Highlights

The ICM550-LF is a service-friendly defrost controller that keeps refrigeration equipment running smoothly. It is suitable for commercial coolers, freezers, reach-ins, walk-ins, and HVAC refrigeration.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: ICM550-LF

Technical Specifications

• Material: Plastic
• Product Dimensions: 3.12"D x 4.5"W x 6"H
• Voltage: 120-240 VAC
• Frequency: 60 Hz
• Type: Defrost Timer
• Form: SPDT, SPST
• Rating: [2] & [4]: 30A R, 1HP @ 120 VAC, 2HP @ 240 VAC [1] & [3]: 40A R, 1HP @ 120 VAC, 2HP @ 240 VAC [1] & [F]: 30A R, 1HP @ 120 VAC, 2HP @ 240 VAC
• Minimum cycle time: 15 min
• Maximum cycle time: 23 hr 45 min
• Terminate cycle: Cycle can be terminated by shorting “X to N”
• Supplier part number: ICM550-LF
