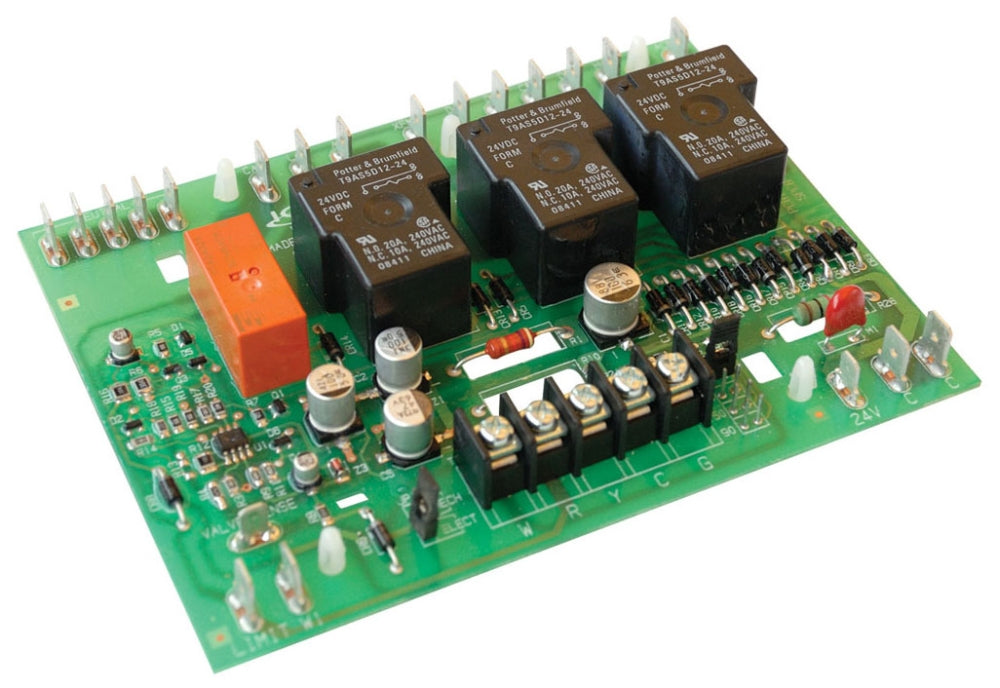

ICM Controls ICM289 Furnace Control Board 98-132VAC

Product Description

The ICM Controls ICM289 is a furnace control board designed to provide reliable operation for Lennox models BCC1, BCC2, and BCC3. This microprocessor-based control board operates at a voltage rating of ninety-eight to one hundred thirty-two volts AC at sixty hertz. It allows for control of the inducer fan motor and the blower fan while monitoring limit switches. With dimensions of four and one-quarter inches in length, five and five-eighths inches in width, and one inch in height, the ICM289 offers a compact design for easy installation.

• Voltage Rating: 98 to 132 VAC
• Current Rating: 20 A at 120 VAC
• Compatible with all 24VAC thermostats

Product Highlights

The ICM289 ensures efficient management of heating systems, providing necessary delays for blower operation. The control board features a cool blower delay of one second and flexibility with the heat blower delay of forty-five seconds for the ON state and various durations for the OFF state, including ninety, one hundred fifty, two hundred ten, and two hundred seventy seconds.

Product Information

Standard Information

• Brand: ICM Controls
• Part Number: ICM289

Technical Specifications

• Input Voltage: 98 to 132 VAC
• Amperage Rating: 20 A at 120 VAC
• Dimensions: 4.25 inches (L) x 5.625 inches (W) x 1 inch (H)
• Frequency Rating: 60 Hz
• Control Type: Microprocessor based
• Applications: Furnace control for residential and commercial HVAC systems
