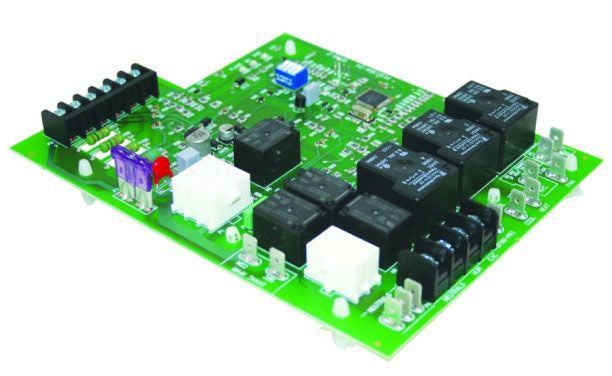

ICM Controls ICM288 Furnace Control Board 98 to 132VAC RollOut Limit for Rheem

Product Description

The ICM Controls ICM288 is a microprocessor-based control board designed for furnace applications. It is compatible with Rheem ignition control boards and operates on a voltage range of ninety-eight to one hundred thirty-two volts AC at sixty hertz. The compact dimensions measure seven point five inches in length, five point seven five inches in width, and one and a half inches in height.

• Microprocessor-based precision control.
• Compatible with Rheem models and meets standard furnace requirements.
• Diagnostic LEDs for troubleshooting.

Product Highlights

The ICM288 is essential for efficiently managing furnace operations, controlling various elements like the gas valve and blowers, ensuring robust performance and safety.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM288

Technical Specifications

• Voltage Rating: 98 to 132VAC
• Current Ratings:
• 5A at 120VAC (Igniter)
• 10A at 240VAC (Cool Blower)
• 5A at 250VAC (Heat Blower)
• 4A at 120VAC (Inducer Blower)
• 1A at 24VAC (Gas Valve)
• 0.5A at 24VAC (Humidifier Motor)
• 1A at 120VAC (Electronic Air Cleaner)
• Power Rating: 2HP at 240VAC (Cool Blower)
• Prepurge Times: Heat - 60 seconds, Cool - 1 second
• Postpurge Times: Heat - 90 to 180 seconds, Cool - 40 seconds
• Trial for Ignition: 10 seconds
