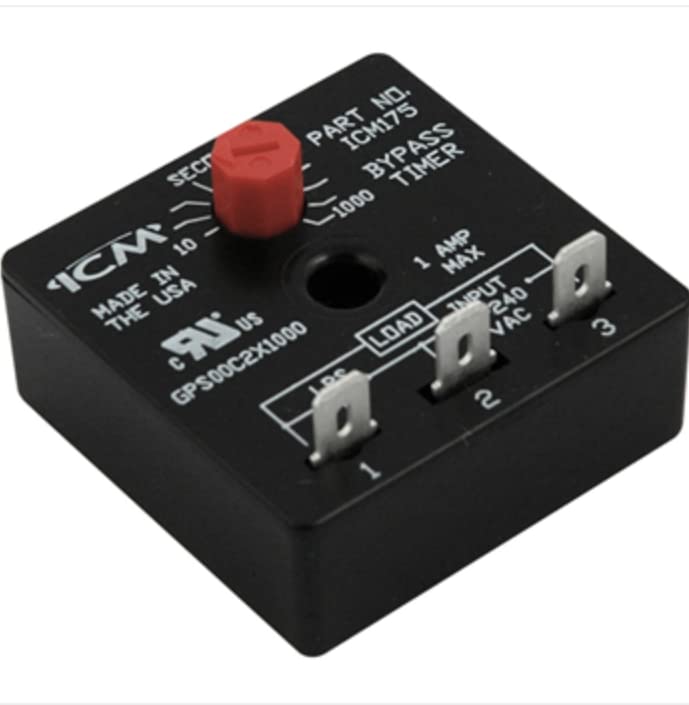

ICM Controls ICM175 Bypass Timer Relay 1000-Second Adjustable

Product Description

The ICM Controls ICM175 is a bypass timer relay designed for industrial applications. It is used to manage time-delay functions with high precision. This timer relay operates within a voltage range of 18-240 VAC/VDC, making it suitable for various electrical systems.

• ICM Controls brand quality
• MPN: ICM175
• Wide input voltage range

Product Highlights

This adjustable bypass timer is perfect for process control and safety systems. It includes features like a visible LED status indicator, robust construction for industrial use, and easy installation options for both panel and DIN rail mounts.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM175

Technical Specifications

• Time Delay: 10-1000 seconds
• Voltage: 18-240 VAC/VDC
• Contact Rating: 1 amp
• Operation: Universal AC voltage operation
• Construction: Epoxy-encapsulated circuitry
• Holding Current: 40 milli-amp
• Inrush Current: 10 amps
• Usage: Ideal for bypassing low pressure switches during startups
