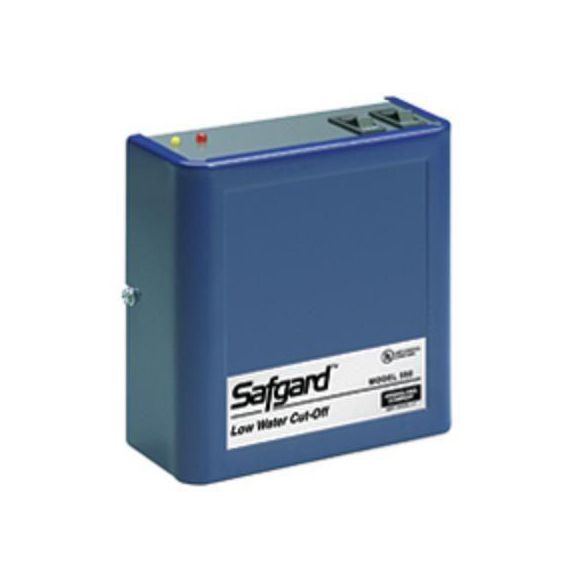

Hydrolevel 170 Safgard Low Water Cut-Off 120V 160 psi

Product Description

The Hydrolevel 170 Safgard Low Water Cut-Off is a reliable device designed to safeguard hot water boilers. It is equipped with a low water cut-off feature for 160 psi and operates on 120 VAC.

• Automatic reset functionality
• SPDT switch contacts
• Direct connection to boiler tappings

Product Highlights

This model interrupts power immediately under low water conditions and restarts the burner upon water level normalization. It has a switching capacity of 5.8 FLA and 34.8 LRA.

Product Information

Standard Information

• Brand: Hydrolevel
• Model: Safgard
• MPN: 170

Technical Specifications

• Application: Hot Water Boilers
• Connection Size: 3/4 inches
• Control Connection: NPT
• Max Steam Pressure: N/A
• Max Water Pressure: 160 psi
• Max Water Temp: 250°F
• Max Ambient Temp: Room
• Voltage: 120V
• Installation Method: Direct to Boiler Tappings
• Control Reset: Automatic
• Enclosure: NEMA 1
• Ohms Sensitivity: 15,000 ohm
