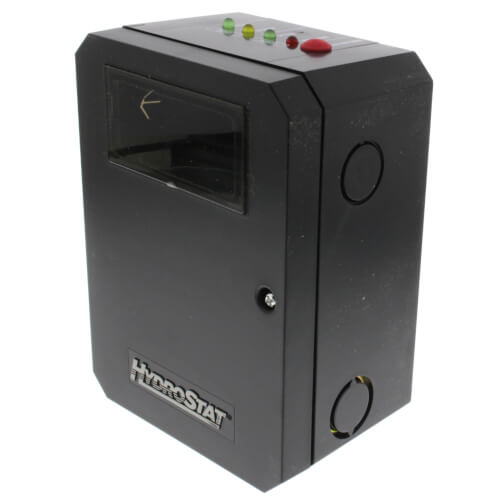

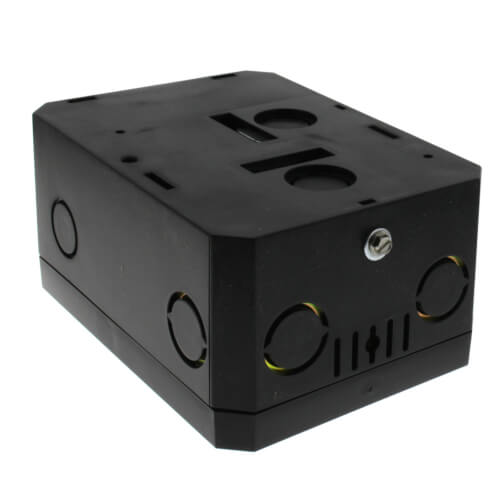

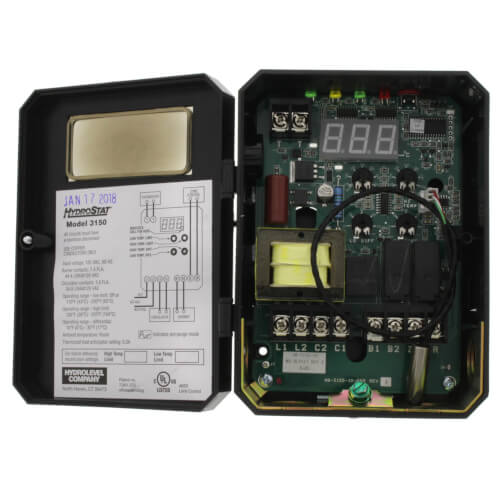

Hydrolevel 48-3150 Model 3150 HydroStat for Oil Boilers Temperature Limit LWCO

Product Description

The Hydrolevel 48-3150 is a versatile control designed for oil boilers. This HydroStat provides temperature and low water cutoff functionality when correctly installed. It is compatible with standard immersion wells and can replace various Aquastat models.

• Compatible with existing immersion wells.
• Adds low water cutoff protection with the Hydrolevel Electro-Well.
• Simple dial for temperature and differential settings.

Product Highlights

This HydroStat allows you to add low water protection to your heating system without extra installation costs.

Product Information

Standard Information

• Brand: Hydrolevel
• MPN: 48-3150

Technical Specifications

• Burner Contacts: 7.4 FLA, 44.4 LRA @ 120 VAC
• Circulator Contacts: 5.8 FLA, 34.8 LRA @ 120 VAC
• Operating Range - Low Limit: OFF or 110°F - 200°F
• Operating Range - High Limit: 100°F - 220°F
• Operating Range - Low Differential: 10°F - 30°F
• Operating Range - High Differential: 10°F - 30°F
