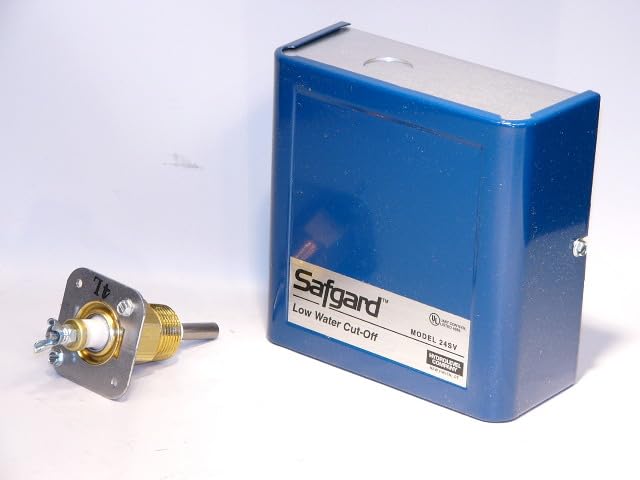

Hydrolevel 24SV Safgard Low Water Cut-Off 24V with Short Probe

Product Description

The Hydrolevel 24SV is a robust low water cut-off device designed for hot water boilers, enhancing system safety by preventing dry firing. Ideal for maintaining proper water levels in boilers, this unit features a short probe combined with 24-volt power compatibility.

• Automatic reset and alarm contacts for efficient operation
• Optimized for hot water boilers
• Direct installation to boiler with NPT connections

Product Highlights

This essential safety device automatically interrupts power in low water conditions and restarts the burner once normal levels are restored. The inclusion of alarm contacts provides additional safety notifications.

Product Information

Standard Information

• Brand: Hydrolevel
• MPN: 24SV

Technical Specifications

• Application: Hot Water Boilers
• Connection Size: 3/4 inch NPT
• Max Water Pressure: 160 psi
• Max Water Temperature: 250°F
• Voltage: 24V
• Installation Method: Direct to Boiler Tappings
• Control Reset: Automatic
• Enclosure: NEMA 1
• Ohms Sensitivity: 15,000 ohm
