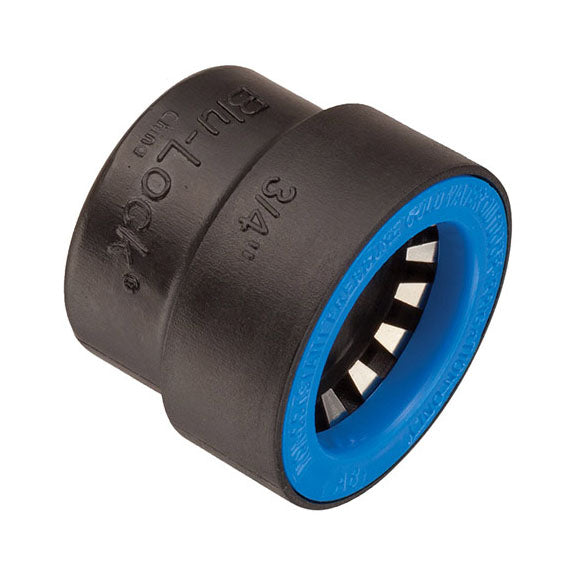

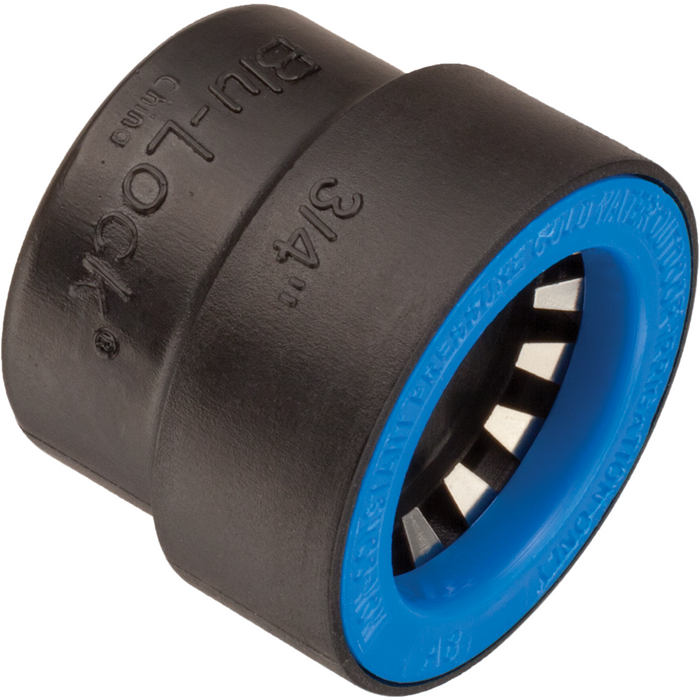

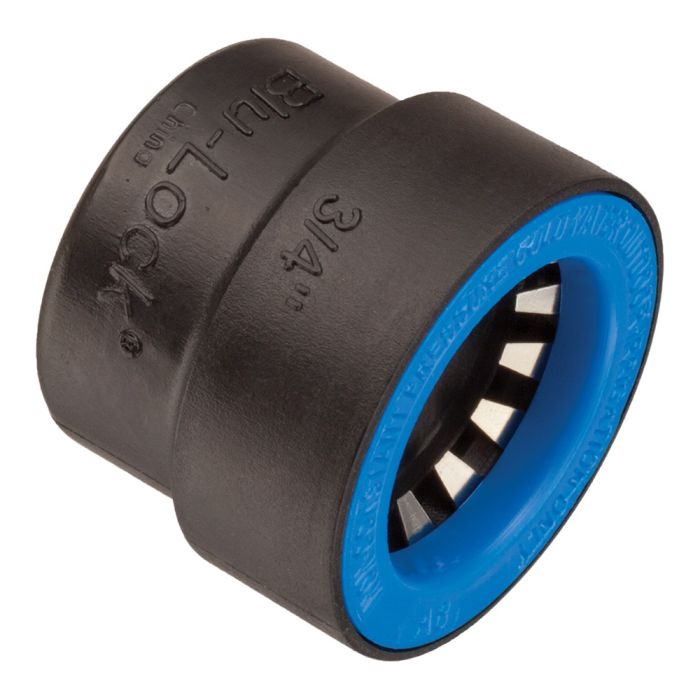

Hydro-Rain BL447-007 Blu-Lock Cap 3/4 in. BL

Product Description

The Hydro-Rain BL447-007 Blu-Lock Cap offers a faster and easier alternative to traditional pipe fitting methods. The Blu-Lock system eliminates the need for glue, clamps, or tools. Designed for non-constant pressure, valve-out, cold water, outdoor direct burial irrigation connections.

• Features a push-and-go design for tool and chemical-free installation.
• Constructed from UV-resistant ABS, stainless steel, and EPDM seals for durability.
• Compatible with 3/4" Standard Inside Dimension Ratio (SIDR) 15 and 19 pipe.

Product Highlights

The Blu-Lock system provides a fast, green, and efficient method for irrigation installation, reducing installation time and promoting environmental health.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: BL447-007

Technical Specifications

• Brand: Hydro-Rain
• Product Type: 3/4" Blu-Lock Fittings
• Series: Blu-Lock
• Max Working Pressure: 125 PSI
• Burst Pressure: 250 PSI
• Working Pressure: 10-125 PSI
• Size: 3/4 in.
• Connection: Blu-Lock
• Material: ABS Plastic
• COMPATIBLE PIPE DIMESNION: 3/4" Standard Inside Dimension Ratio (SIDR) 15 and 19 pipe (about 0.944" or 15/16")
• OPERATING PRESSURE: 80 PSI
• OPERATING PRESSURE RANGE: 10 125 PSI
• Connection Type: BL
• Item: Cap
• Type: Lock
• Minimum Operating Pressure: 10 PSI
• Maximum Operating Pressure: 125 PSI
• Maximum Working Temperature: 72 F
• Regulated: No
