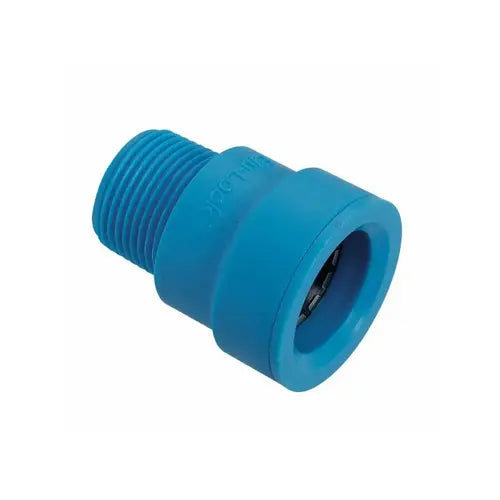

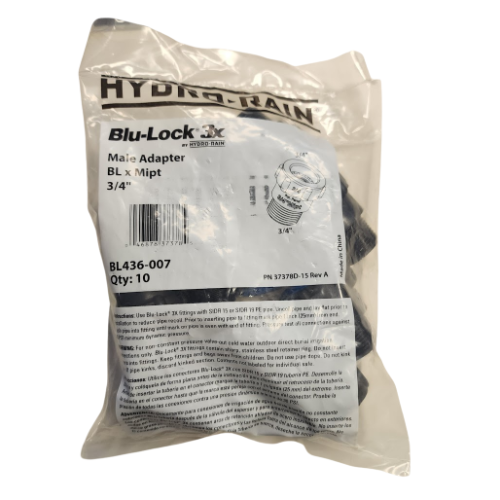

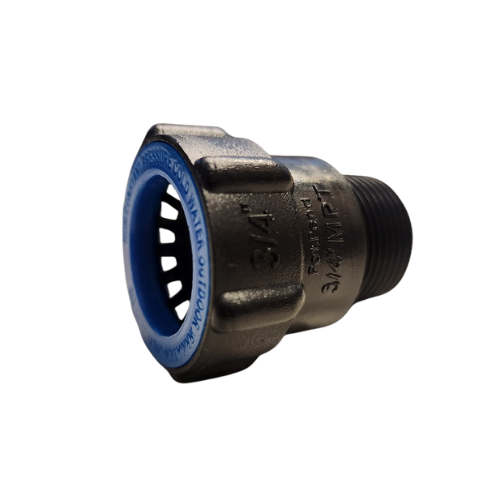

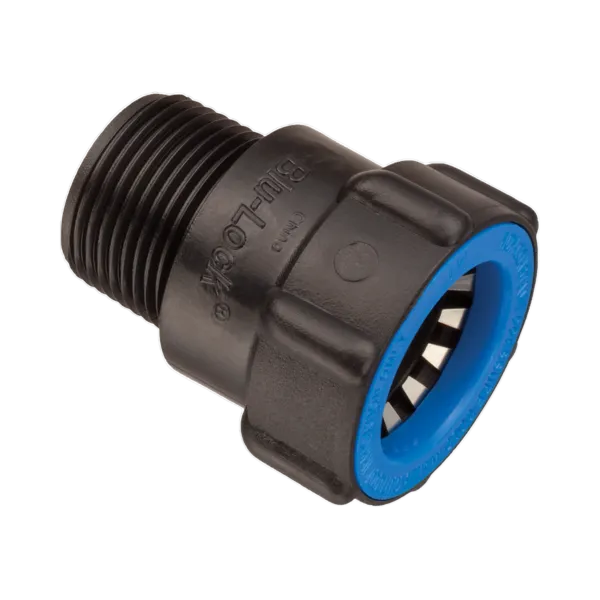

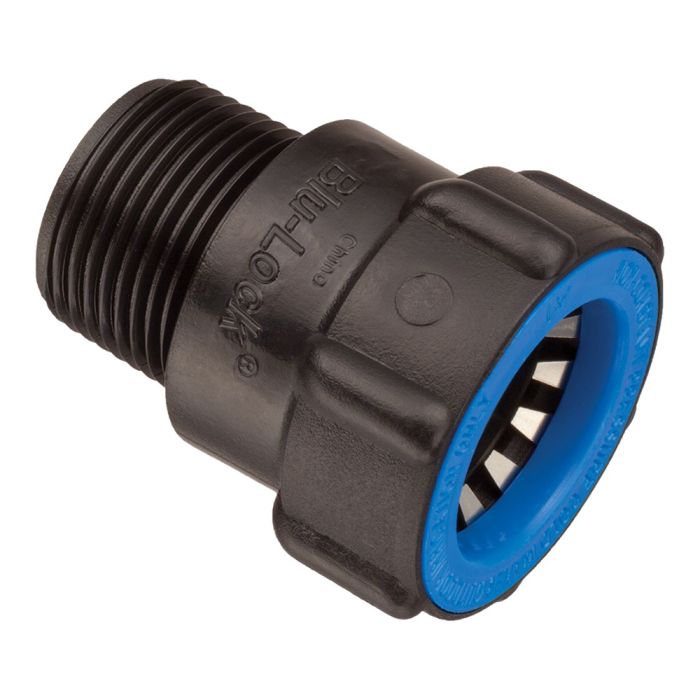

Hydro-Rain BL436-007 Blu-Lock Adapter 3/4 in. BL x MIPT

Product Description

The Hydro-Rain BL436-007 3/4 in. Blu-Lock x MIPT Adapter eliminates the need for traditional pipe fitting methods. With the Blue-Lock system, installations are faster and easier. Blu-Lock is for non-constant pressure, valve-out, cold water, outdoor direct burial irrigation connections only.

• Patent Pending "Push-and-Go" Design - 100% tool and chemical free approach that cuts installation time in half or more.
• Blu-Lock Pipe is Green Environmentally Friendly recyclable HDPE pipe provides a superior alternative to PVC.
• Blu-Lock Fittings are Green Outside diameter (OD) technology ensure lower friction loss for better efficiency.

Product Highlights

This adapter bridges the gap between flexible tubing and rigid threaded components. It converts the push-to-connect system into a standard connection, allowing seamless integration of modern speed with traditional hardware.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: BL436-007

Technical Specifications

• Brand: Hydro-Rain
• Product Type: 3/4" Blu-Lock Fittings
• Series: Blu-Lock
• Max Working Pressure: 125 PSI
• Burst Pressure: 250 PSI
• Working Pressure: 10-125 PSI
• Size: 3/4 in.
• Connection: Blu-Lock x MIPT
• Material: ABS Plastic
• Operating Pressure: Up to 80 PSI (Constant), 100 PSI (Surge)
• Connection 1: 3/4" Blu-Lock Push-to-Connect
• Connection 2: 3/4" Male Pipe Thread (MPT)
