Product Description

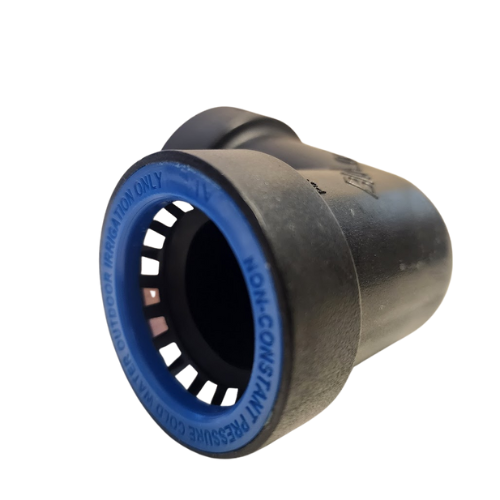

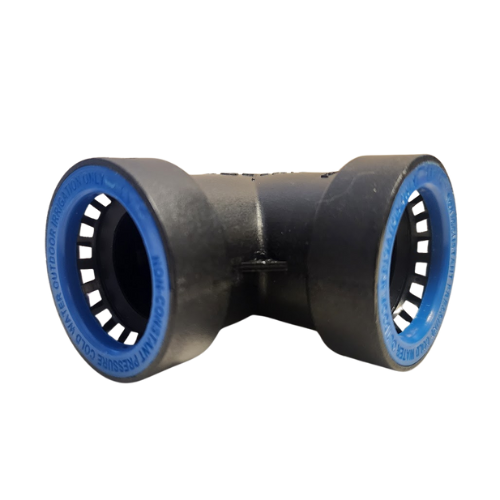

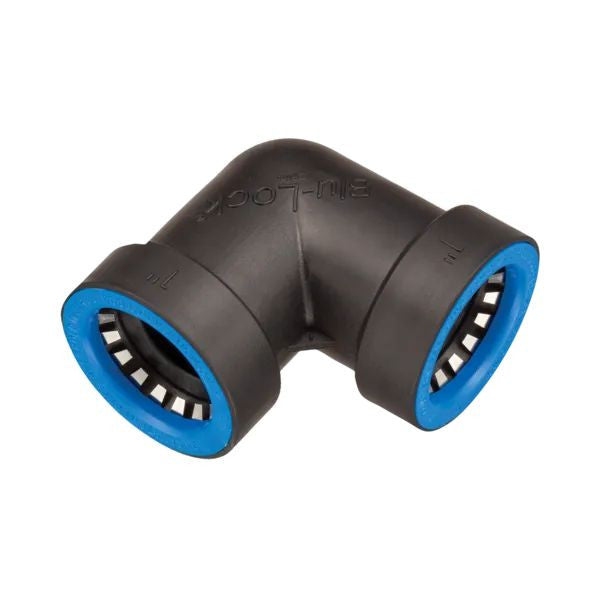

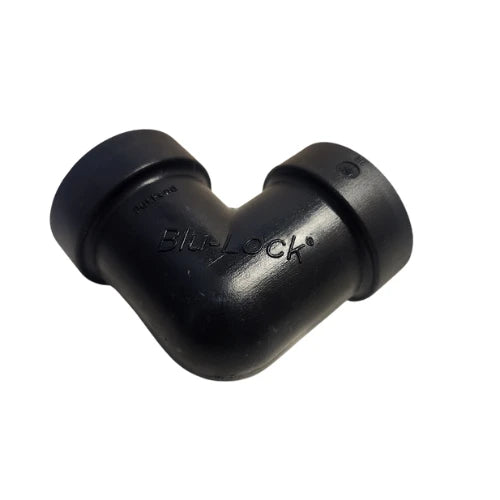

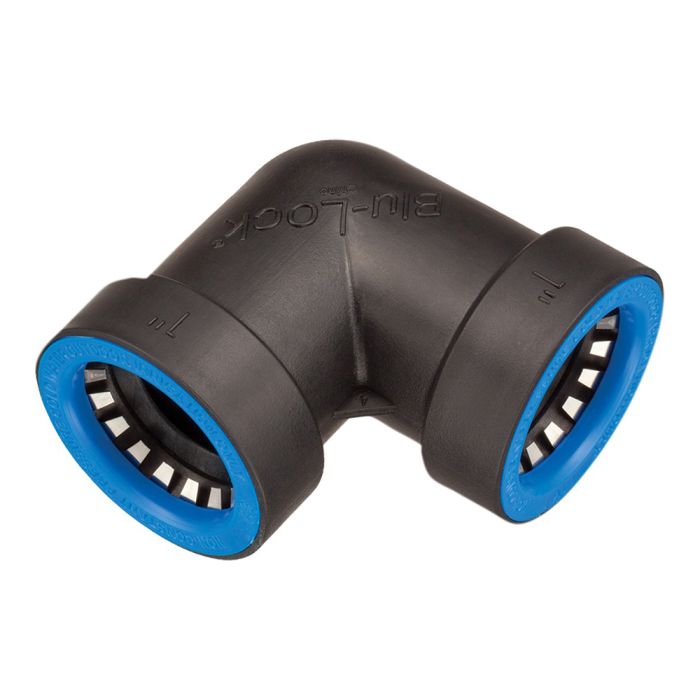

The Hydro-Rain BL406-010 Blu-Lock Elbow is designed for creating secure 90-degree turns in 1" Blu-Lock tubing. Constructed from UV-resistant ABS, stainless steel, and EPDM, this fitting allows routing of heavy-duty supply lines without needing PVC primer or glue. It is suitable for non-constant pressure, valve-out, cold water, outdoor direct burial irrigation connections only.
- Heavy-Duty Construction Built tough fittings made from UV-resistant ABS, stainless steel and EPDM seals are designed and tested to ensure toughness.
- Patented Retaining System Stainless steel teeth grip pipe tight for a strong, leak-proof connection.
- Outside Diameter (OD) Technology Flow is unimpeded for 25 percent increase in flow versus traditional insert fittings.
Product Highlights
The Hydro-Rain Blu-Lock system offers a fast, green irrigation installation method. The push-and-go design eliminates the need for tools and chemicals, cutting installation time in half.
Product Information
Standard Information
-
Brand: HYDRO-RAIN
-
Manufacturer Part Number: BL406-010
Technical Specifications
-
Brand: Hydro-Rain
-
MPN: BL-406-010
-
Product Type: 1" Elbow (90 Degree)
-
Series: Blu-Lock
-
Size: 1 in.
-
Connection: Blu-Lock
-
Material: UV-Resistant ABS Body, Stainless Steel Teeth
-
Max Working Pressure: 150 PSI
-
Burst Pressure: 350 PSI
-
Working Pressure: 10-150 PSI
-
Operating Pressure: Up to 80 PSI (Constant), 100 PSI (Surge)
-
Release Mechanism: Requires Release Tool (No built-in tab)
