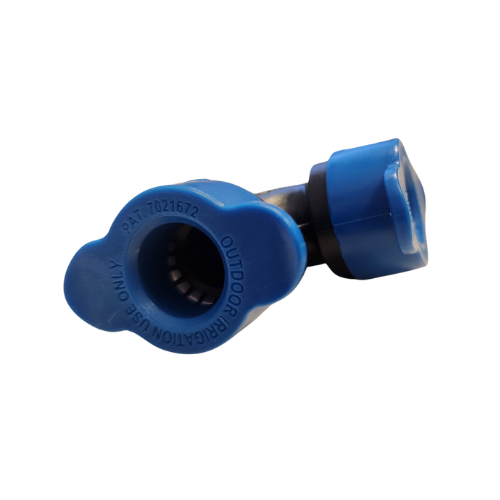

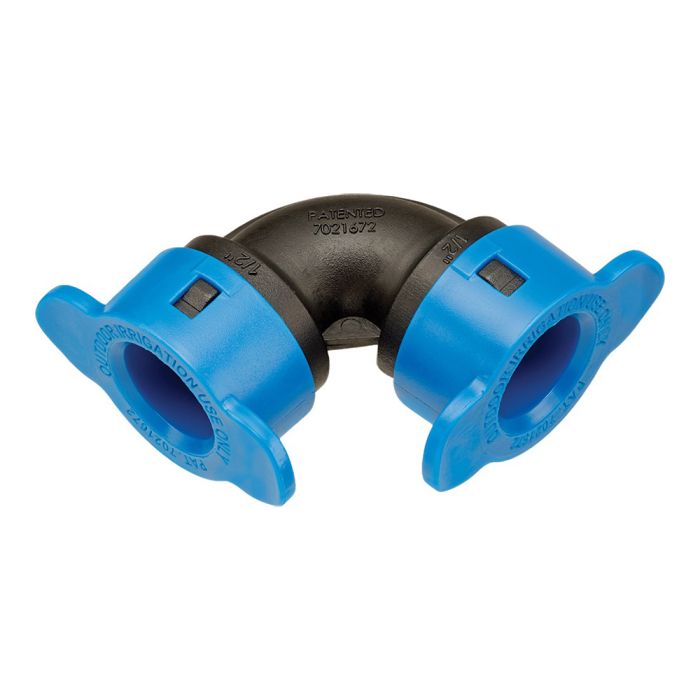

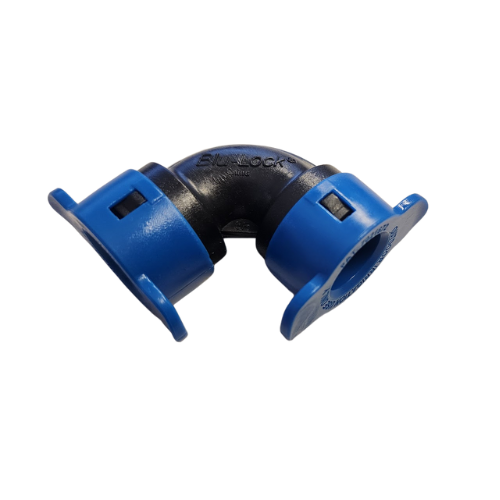

Hydro-Rain BL406-005 Blu-Lock Elbow 1/2 in. BLR

Product Description

The Hydro-Rain BL406-005 1/2 in. BLR Elbow is designed for non-constant pressure, valve-out, cold water, outdoor direct burial irrigation connections. This elbow allows connection of two pieces of 1/2" Blu-Lock Tubing at a 90-degree angle. It utilizes push-to-connect technology, eliminating the need for primer, glue, and cure time.

• Features a patent pending push-and-go design for fast installation.
• Made from recyclable HDPE pipe, a superior alternative to PVC.
• Constructed from UV-resistant ABS, stainless steel, and EPDM seals for durability.

Product Highlights

The Blu-Lock system offers a fast, green, and efficient irrigation installation method. It provides a tool and chemical-free approach, saving time and protecting the environment.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: BL406-005

Technical Specifications

• Brand: Hydro-Rain
• Product Type: 1/2" Blu-Lock Fittings
• Series: Blu-Lock
• Max Working Pressure: 80 PSI
• Burst Pressure: 220 PSI
• Working Pressure: 10-80 PSI
• Size: 1/2 in.
• Connection: BLR
• Material: ABS Plastic
• Connection 1: 1/2" Blu-Lock Push-to-Connect
• Connection 2: 1/2" Blu-Lock Push-to-Connect
• Operating Pressure: Up to 80 PSI (Constant), 100 PSI (Surge)
• MPN: BL-406-005
• Connection Type: BLR
• Item: Elbow
• Type: 90-Degree
• Angle: 90 Degree
• Minimum Operating Pressure: 10 PSI
• Maximum Operating Pressure: 80 PSI
• Maximum Working Temperature: 72 F
• Connection 2 Size: 1/2 in.
• Connection 2 Type: Blr
• Regulated: No
