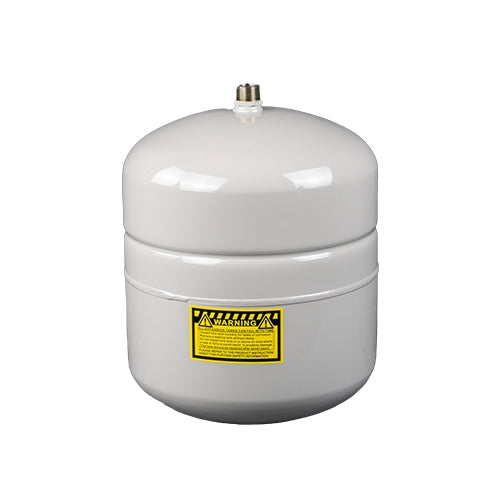

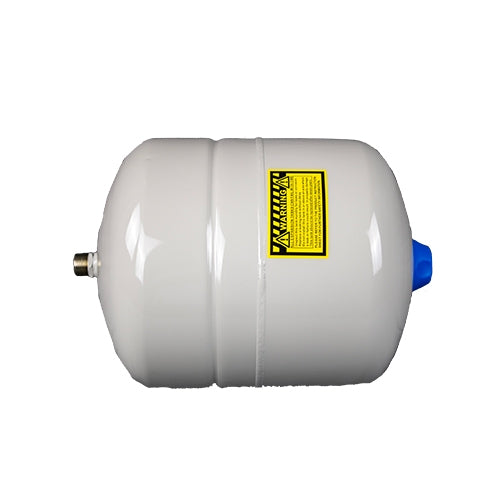

HydraPro HPTET45 Thermal Expansion Tank, 4.5 gal

Product Description

The HydraPro HPTET45 is a thermal expansion tank designed for use with standard hot water heaters and storage tanks. It has a capacity of four point five gallons and features a three-quarter inch male connection. The tank is manufactured with a butyl rubber diaphragm and a stainless steel inlet connection. It can handle a temperature rating of up to two hundred degrees Fahrenheit.

• Designed to absorb water volume from thermal expansion
• Pre-pressurized steel tank for optimal performance
• Meets IAPMO and ANSI/NSF 61 standards

Product Highlights

This tank maintains balanced pressure in the potable water supply system and prevents water from contacting air.

Product Information

Standard Information

• Brand: HydraPro
• MPN: HPTET45

Technical Specifications

• Capacity: 4.5 gallons
• Connection Size: 3/4 inch
• Working Pressure: 150 psig
• Factory Precharge: 40 psig
• Temperature Rating: 200 Deg F
• Dimensions: 15 inch x 11 inch diameter
• Acceptance Volume: 2.8 gallons
• Material: Butyl rubber diaphragm, stainless steel inlet connection
• Standards: IAPMO listed and ANSI/NSF 61 Certified
