Product Description

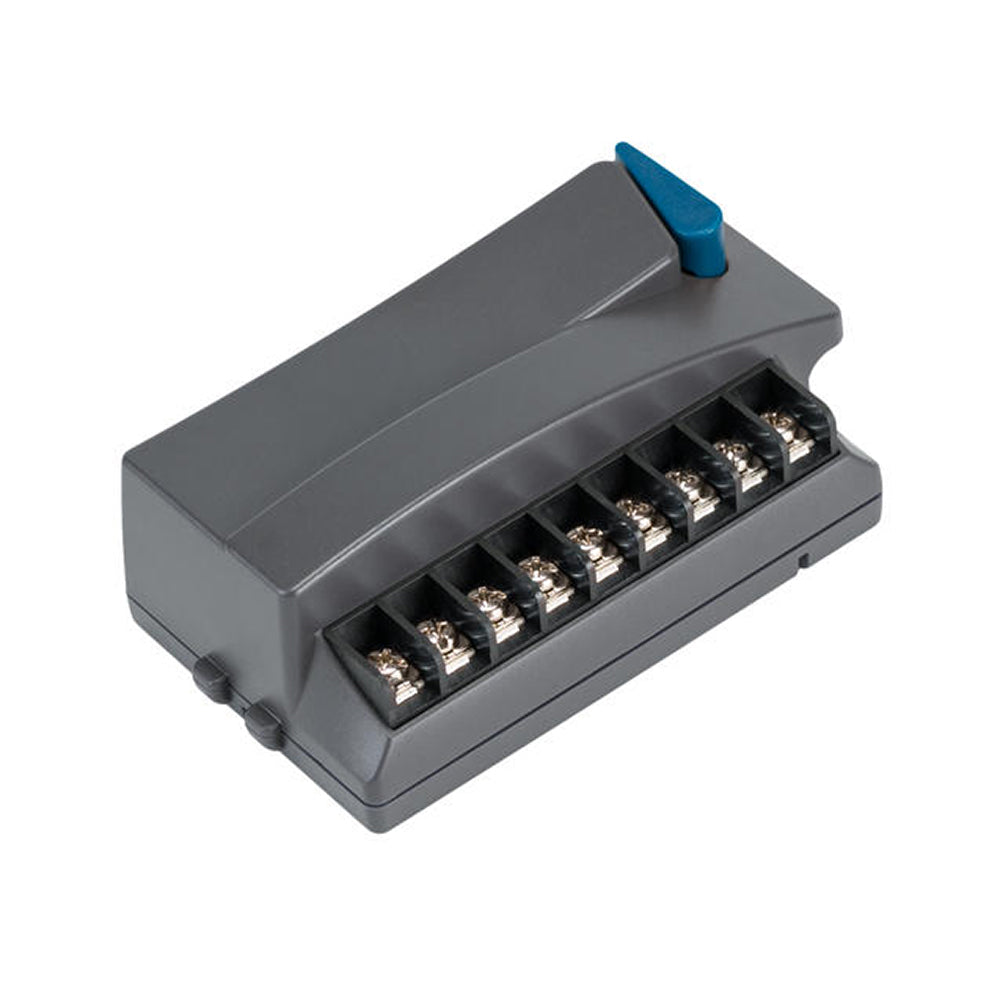

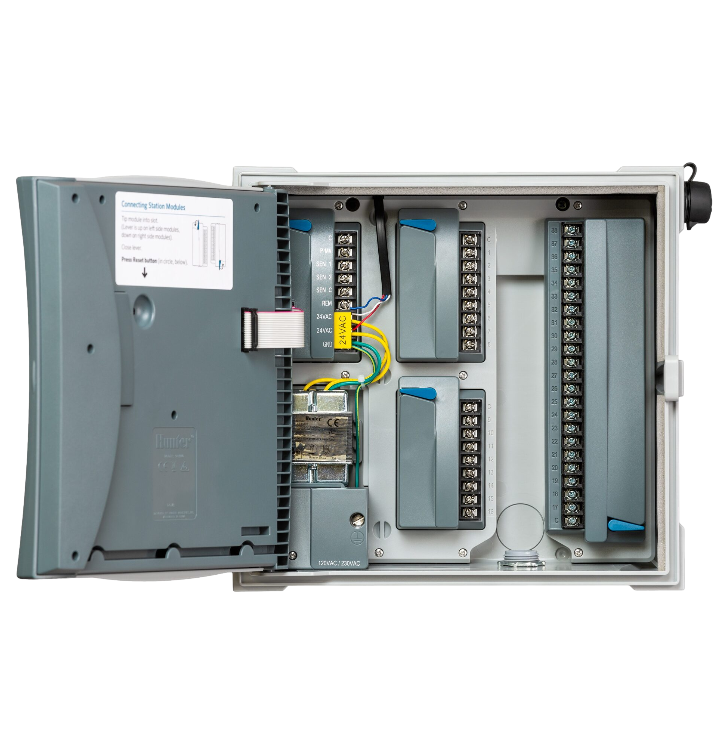

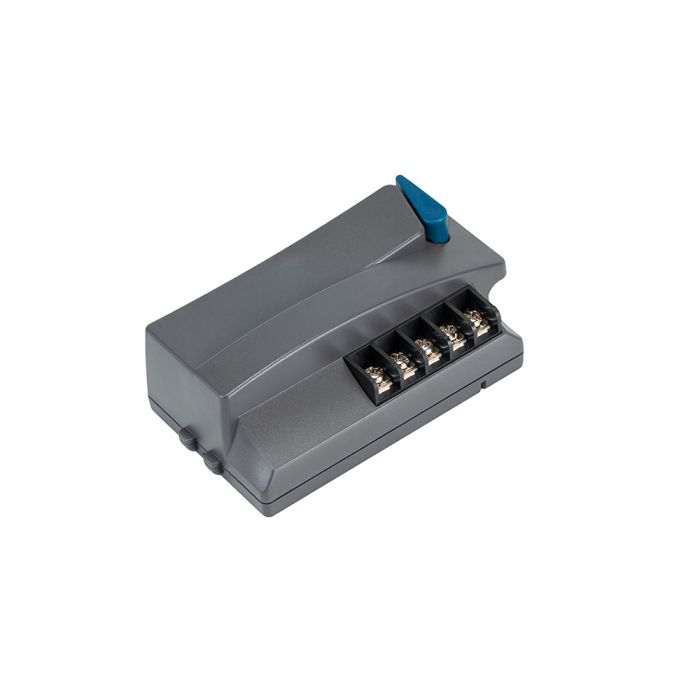

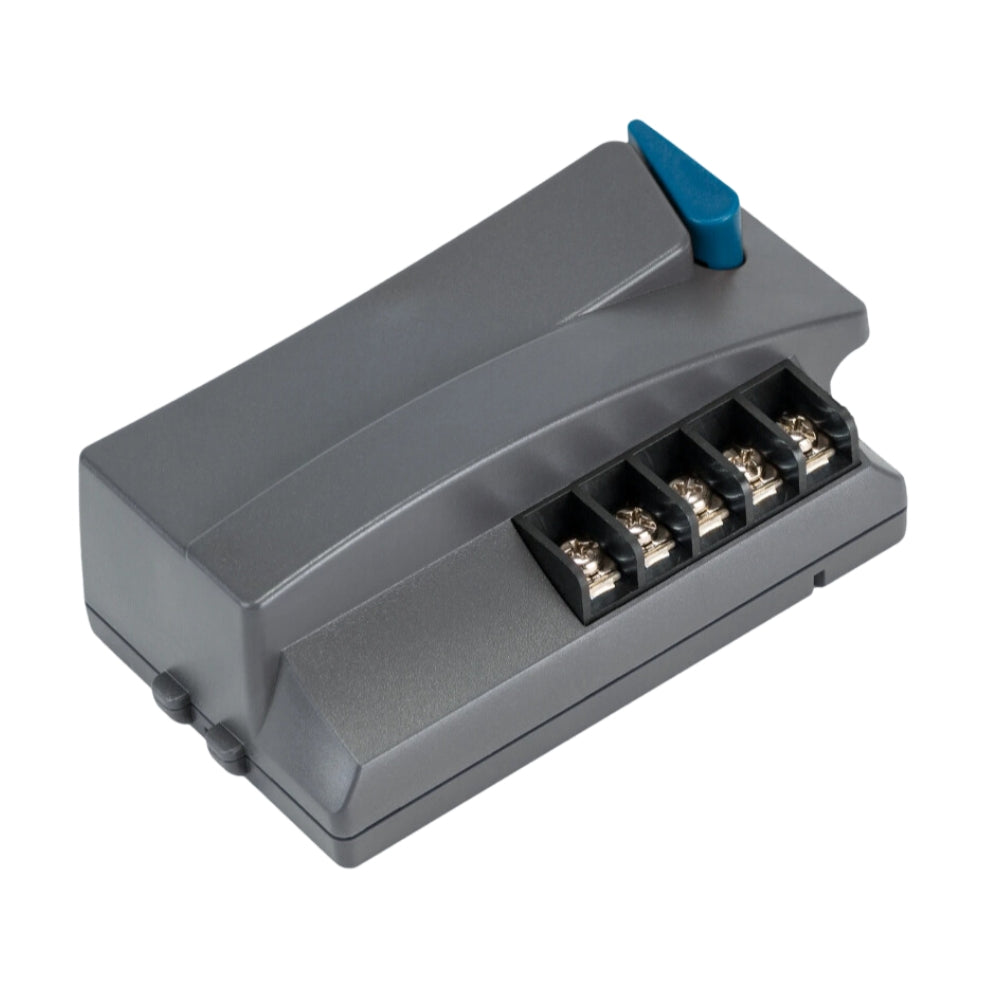

The HUNTER ICM400 is an expansion module for ICC, ICC2, and HCC timer controllers. This module expands the capacity of Hunter ICC2 and HCC irrigation controllers with modular ICM station expansion. These plug-in modules let you add zones without rewiring so you can scale a system as needs change.
- 4 Zone Modules
- For Use with ICC, ICC2, and HCC Timers
- Versatile modular design
Product Highlights
The ICM400 provides a service-friendly way to grow commercial and municipal irrigation systems with dependable zone expansion and built-in protection.
Product Information
Standard Information
-
Brand: HUNTER
-
Manufacturer Part Number: ICM400
-
Country of Origin: United States
Technical Specifications
-
For Use with: ICC, ICC2, and HCC Timers
-
Zone Modules: 4 Zone Modules
-
Transformer input: 120/240VAC, 50/60Hz
-
Transformer output: 24VAC, 1.5A
-
Station output: 24VAC, 0.56A (2 valves)
-
Maximum total output: 24VAC, 1.4A (5 valves), includes master valve circuit
-
Master valve output: 24VAC, 0.28A
-
Rain sensor override: compatible with most brands utilizing a normally closed micro switch
-
Seasonal adjustment: 10 to 150%
-
Self-diagnostic circuit breaker: Skips shorted stations and continues watering, no fuses to replace
-
Station run times: Programs A, B, and C, 2 hours; Program D, 12 hours
-
Programmable delay between stations: up to 10 hours
-
Programmable rain delay: up to 7 days
-
UL listed: true
-
365 day calendar: true
-
Central control compatible: with Hunter IMMS system
-
Compatible with: Hunter's SRR and ICR remote control systems
-
All models: NEMA 3R rated for weather resistance
-
One button manual start and advance: true
-
Cycle and Soak capability: by station
-
Brand: Hunter
-
Product Type: Controller Modules
-
Controller Compatibility: ICC Controller
-
Station Expansion: 4
-
Controller Power: AC
-
Field Valve Connection: Conventional wired
-
Network Connection Type: None
-
Type: Sprinkler Controller
-
Number of Zones: 4
-
Model: ICM-400
-
Category: Watering Timers & Controllers
