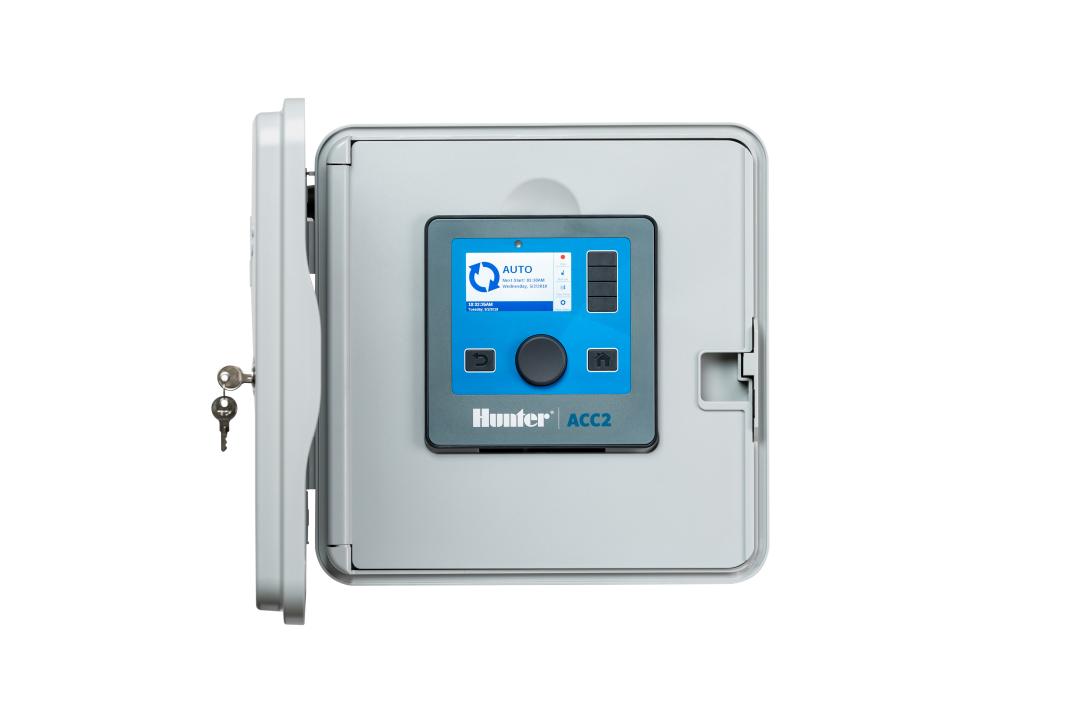

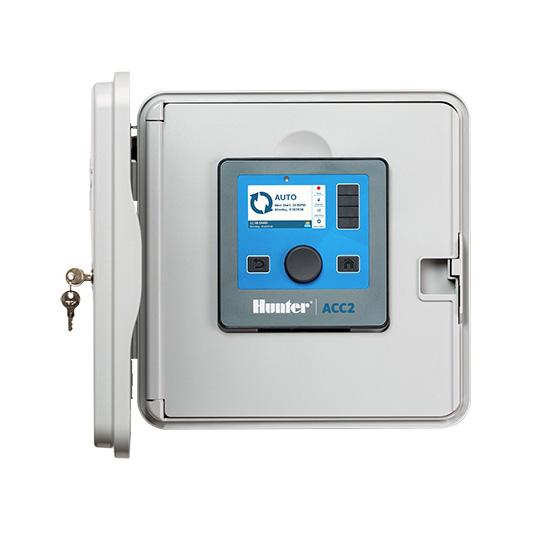

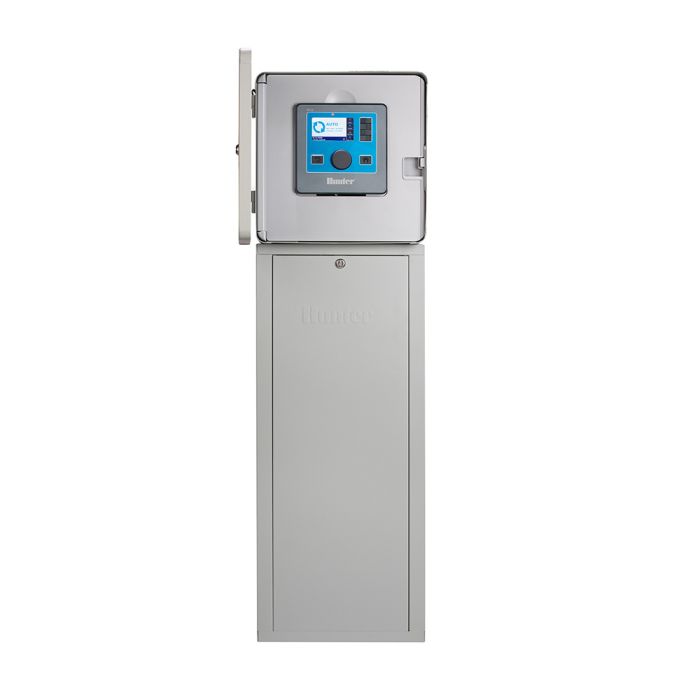

Hunter A2C1200P Acc2 Conventional Controller, 12-Station Base Model

Product Description

The HUNTER A2C1200P Acc2 Conventional Controller is a 12-station base model with a plastic wall mount cabinet. Configurable for commercial projects from 12 to 54 stations, it supports up to 6 flow meter inputs and pump/master valve outputs. The controller monitors for breaks, leaks, and electrical faults, interrupting irrigation and pinpointing the source.

• Operates up to 14 simultaneous solenoids.
• Features 32 automatic programs with 10 start times each.
• Real-time flow monitoring detects and diagnoses leaks in up to 6 flow zones.

Product Highlights

The ACC2 controller delivers advanced water management for large-scale commercial projects. It has a color display, Solar Sync, and conditional response capabilities.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: A2C1200P

Technical Specifications

• Brand: Landscape Irrigation
• Product Line: Controllers
• Product Model: ACC2
• SKU: A2C1200P
• Number of Stations: 12-54
• Central Control: Centralus
• Controller Power: AC
• Field Valve Connection: Conventional wired
• Flow: With Flow
• Network Connection Type: Wi-Fi, LAN Ethernet, Cellular
• Remote Control Compatible: Dedicated remote, Smartphone remote
• Sensor Compatibility: Rain, Freeze, Wind, Flow, Soil Moisture
• Smart Technology: Mobile, Desktop
• Transformer input: 120/230 VAC
• Maximum AC current draw: 120 VAC, 2 A/230 VAC, 1 A
• Transformer output: 24 VAC, ~3 A
• P/MV outputs (24 VAC): Up to 6; 3 included, 0.8 A each
• Sensor inputs: 3 Clik, 1 Solar Sync, and up to 6 Flow sensors (3 included)
• Approvals: Wall Mounts IP44, Plastic Pedestal IP34,NEMA 3R, UL, cUL, FCC, CE, RCM
• Product Type: Modular Controllers
• Expandability: Modular
• Power Source: AC Powered
• Number of Programs: 32
• Start Times Per Program: 10
• Max Station Run Time (HRS): 12
• Indoor: Yes
• Outdoor: Yes
• Soil Sensor Compatible: Yes
• Rain Sensor Compatible: Yes
• Solar Sensor Compatible: Yes
• Freeze Sensor Compatible: Yes
• Application: Light Commercial|Commercial
• Series: ACC2
• Zones: 12
• Enclosure Type: Outdoor
• Housing Material: Plastic
• Mounting Type: Wall Mount
• Station Type: Conventional
• Voltage Rating: 120V - 230V
• Max Station Run Time: 12 hrs.
• Regulated: No
