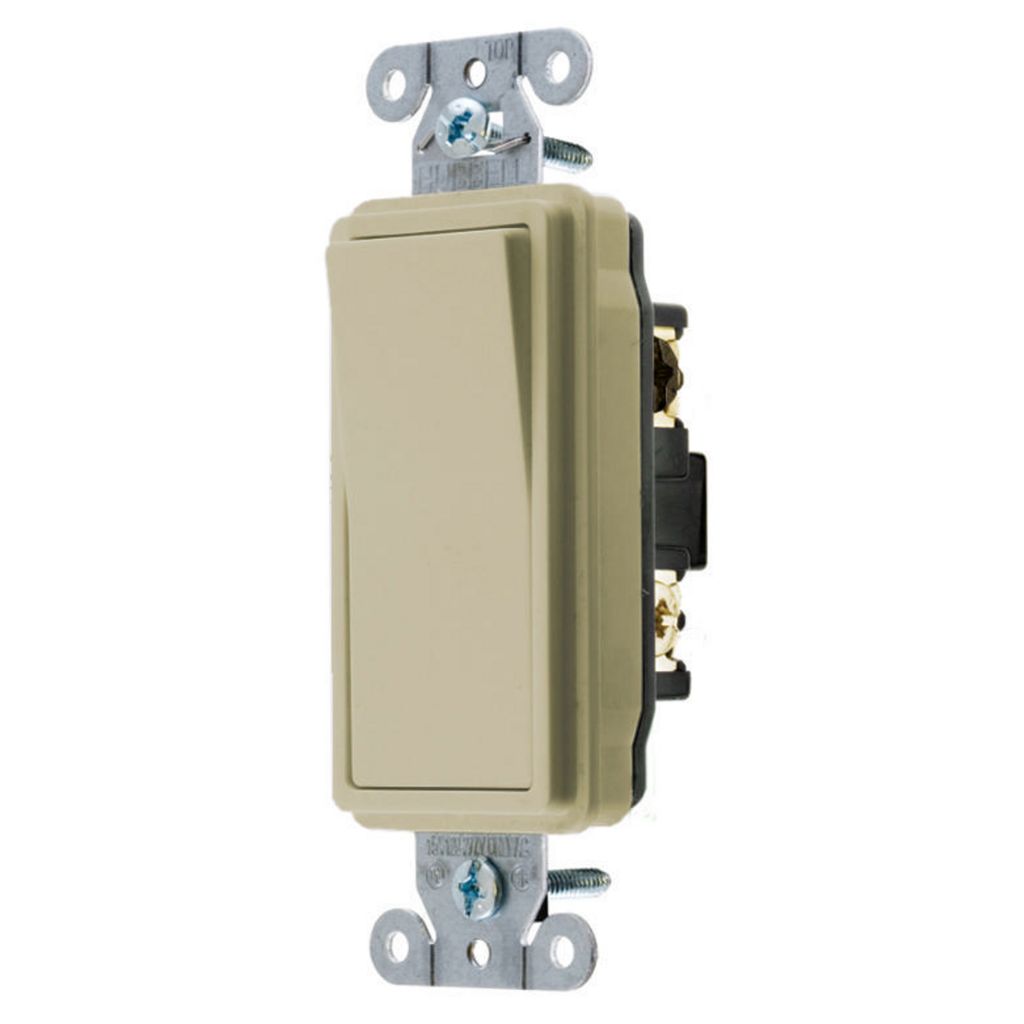

Hubbell Wiring Device-Kellems DS320I SWITCH DECO SER 20A 120/277V IV

Product Description

The Hubbell Wiring Device-Kellems DS320I is a decorator switch designed for efficient electrical control. It operates at 20 Amps with a voltage range of 120/277 Volts. This switch is ideal for three-way setups and allows for back and side wiring, making installation straightforward.

• Rated for 20 Amps and up to 5540 Watts.
• Compatible with 14-10 AWG wire sizes for flexibility.
• Meets UL standards ensuring safety and reliability.

Product Highlights

This switch is suitable for commercial use and is built to withstand various environmental conditions. It features automatic self-grounding and a steel, zinc plated bridge for corrosion resistance.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: DS320I

Technical Specifications

• Type: 3-Way, General Purpose
• Color: Ivory
• Width: 1.9 inches
• Height: 1.01 inches
• Length: 3.91 inches
• Weight: 0.2 lb
• Current Rating: 20 Amps
• Voltage Rating: 120-277 Volts
• Operating Temperature: Maximum continuous 75 degrees C
• Contact Configuration: 2 Position
