Hubbell T27 Killark Duraloy7 T Cond. Bdy Fe..

Product Description

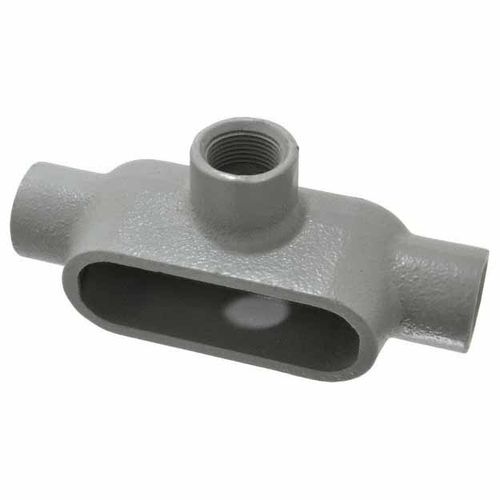

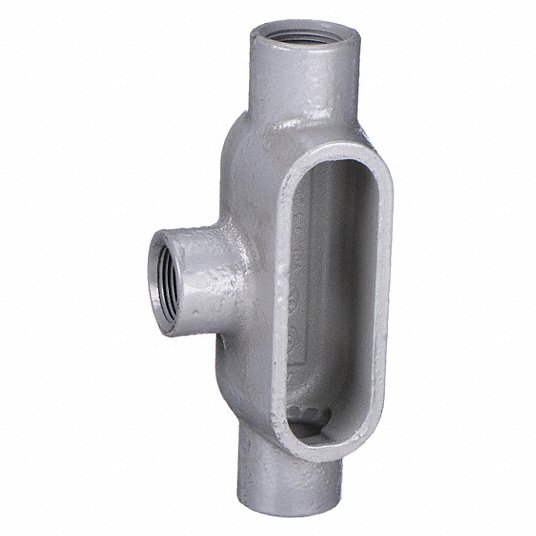

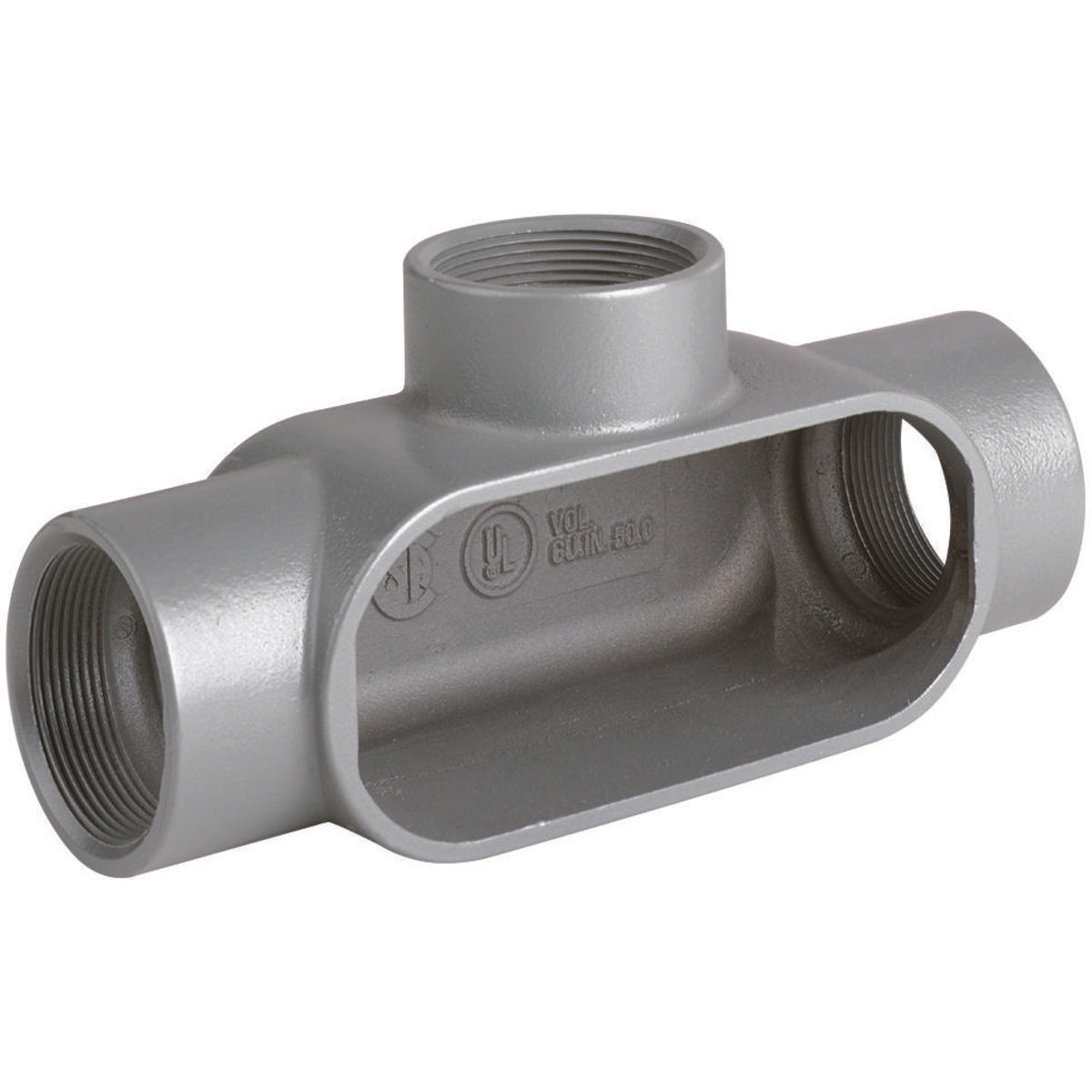

The HUBBELL T27 Killark® Type T conduit body provides access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. Neoprene sealing gaskets provide a NEMA 3 seal. It is suitable for wet locations when used with gasketed covers and for hazardous location applications.

• Intermateability UL Listed and CSA Certified interchangeability with competitive products
• Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 seal
• Innovative spring clip design for installation ease and repeat usage

Product Highlights

The Killark T27 conduit body features smooth integral wire bushings, a flat back design, and ten standard hub configurations.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: T27
• Country of Origin: Mexico

Technical Specifications

• Application: For to provide access to conductors for pulling, splicing and maintenance and threaded for rigid conduit and IMC
• Color: Gray
• Connection Type: NPT
• Enclosure: NEMA 3
• Finish: Tri-Coated
• Hub Size: 3/4 in
• Manufacturer Part Number: T27
• Material: Iron
• Number of Hubs: 3
• Standards/Approvals: UL File No. E3397|CSA File No. LR11852|Federal Specification W-C-586D/A-A 50563|NEC 501.10(b)/502.10/503.10 Class I Div 2
• Type: Type T
• Series: Duraloy 7 Series
• UPC: 783936011318
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Brand: Hubbell
• Part Number #: T27
• UNSPSC: 39131708
• Size: 3/4 Inch
• For Use With: Rigid/IMC Conduit
• Diameter: 3/4 in
• Compatible Conduit Type: IMC; RMC
• Compatible Conduit Trade Size: 3/4 in
• Trade Size: 3/4 in
• Body Style: T
• Connection Orientation: Multi-Angle
• Thread Size: 3/4 in
• Thread Gender: Female
• Thread Type: NPT
• Hazardous Location: Yes
• Item: Conduit Outlet Body
• Body Capacity: 9.5 cu in
• Hub Style: Threaded
• Type of Body: Conduit Outlet Body
• Standards: CSA; UL
• Back Type: Flat
