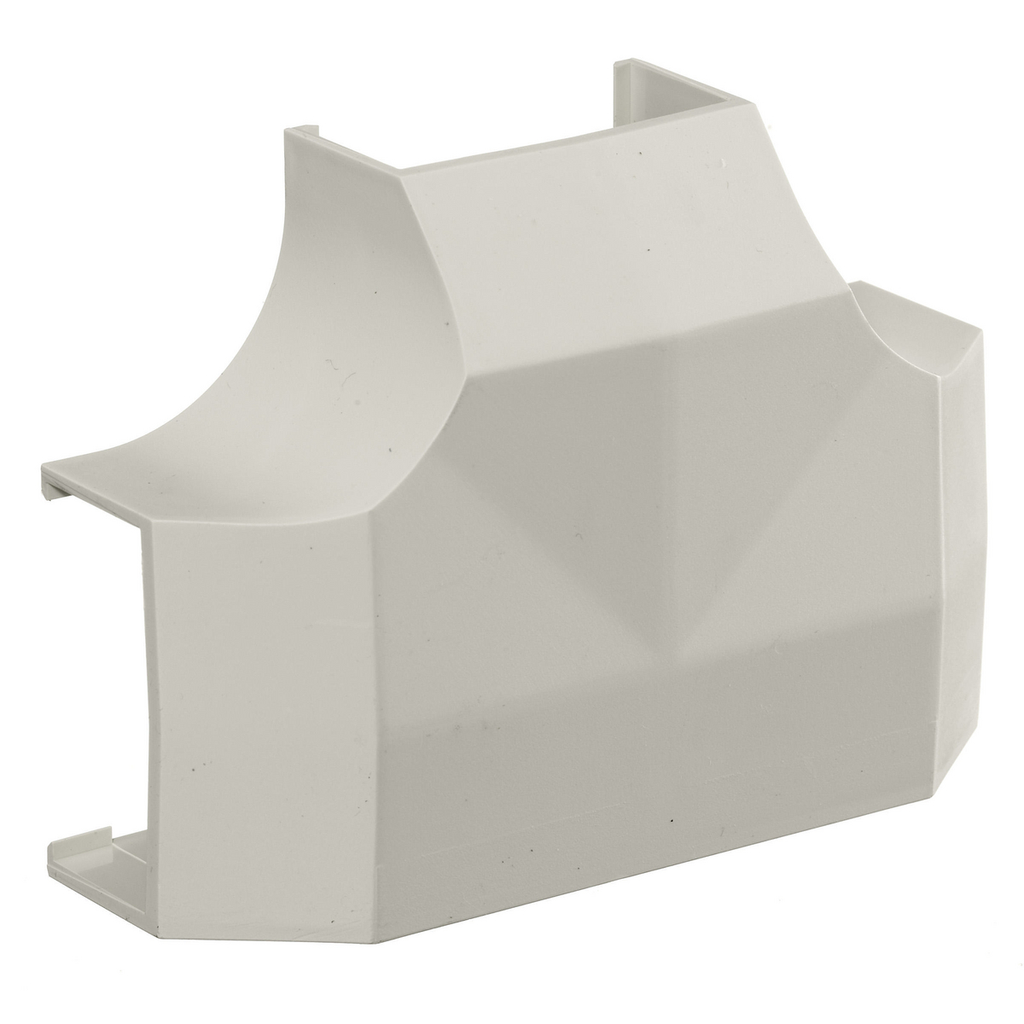

Hubbell PW2TC Walltrak2 Tee Fitting

Product Description

The HUBBELL PW2TC is an extruded full capacity non-metallic standard tee fitting. Constructed from PVC with a office white finish, this tee fitting is designed for use on WallTrak PW2 Series non-metallic latching raceways. It has a temperature rating of -25.6 to 158 Deg F.

• Type Tee
• Made of PVC
• Used on WallTrak PW2 Series Non-Metallic (Latching) Raceway

Product Highlights

The Hubbell PW2TC is a raceway tee cover designed for WallTrak PW2 series non-metallic raceways.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: PW2TC
• Country of Origin: PRI

Technical Specifications

• Type: Tees
• Series: PW2 WallTrak Series
• Material: PVC
• Finish: Office White
• Length: 5.42 in.
• Width: 1.9 Inch
• Height: 3.91 Inch
• Use With: Walltrak[R] PW2 Series Non Metallic Raceway
• Application: Tee Fitting Cover
• Temperature Rating: -25.6 to 158 Deg F
• Approval: UL 5A, CSA C22.2
• Performance: Environmental - Flame Rating - UL94V-0 Environmental - Temperature Range - -25.6° to 158° F
• Specifications: Crush Resistance - 300 lbs. Impact Resistance - 5 ft. lbs. Material - UV Stabilized PVC
