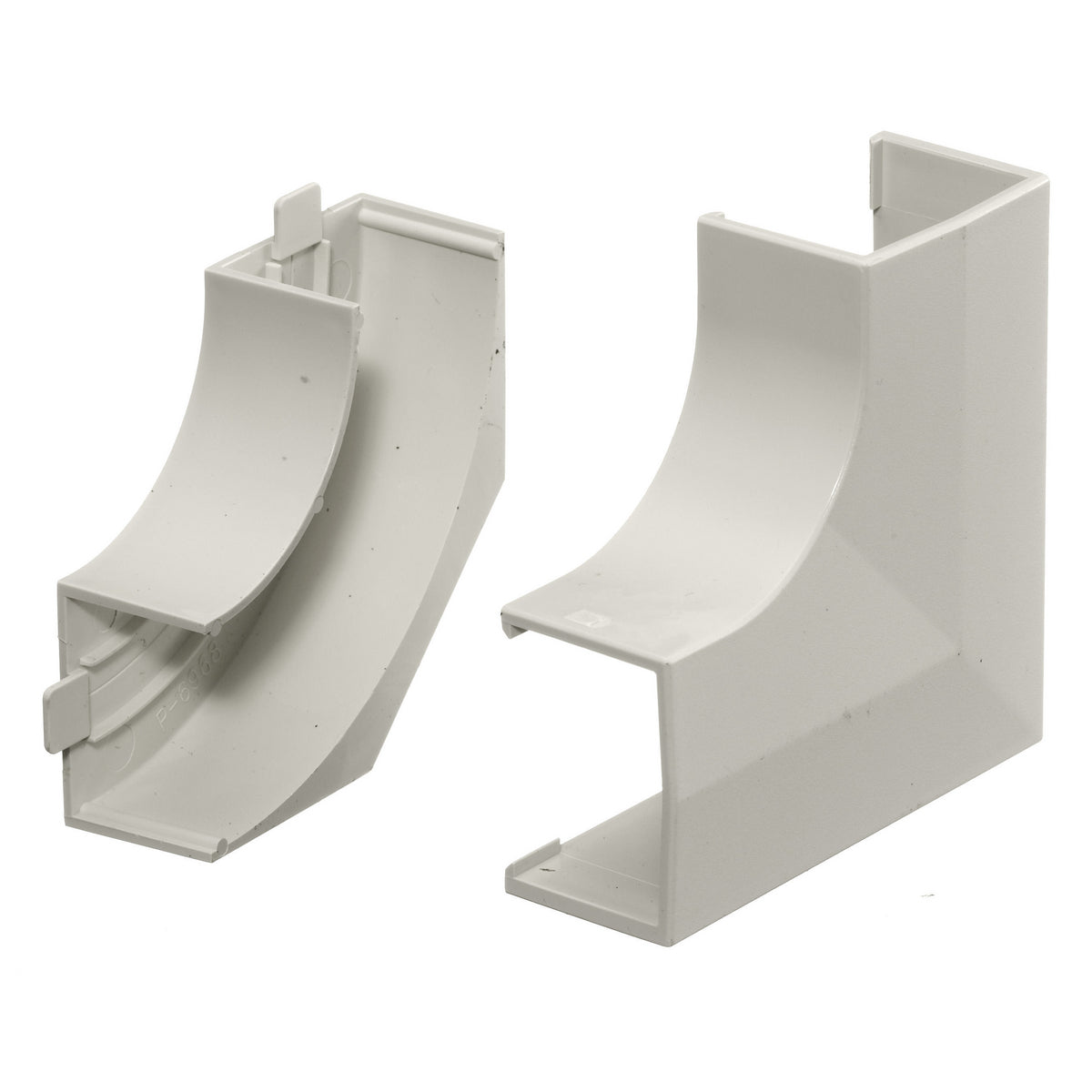

Hubbell PL1FEBC PL1FEBC HUB LAN/PLUG 1 1/4 Radius Flat Elbow

Product Description

The Hubbell PL1FEBC is a raceway elbow designed for standard use in electrical installations. This product is suitable for applications in non-hazardous locations and is made from durable PVC. The elbow features a bend radius of one and one-quarter inches and is compatible with LANTrak® PL1 Series latching non-metallic raceway systems.

• Manufactured from non-metallic PVC material.
• Flat end design for seamless connection.
• Nominal cross section of 1.03 square inches.

Product Highlights

The PL1FEBC elbow provides effective routing of cables while maintaining a neat appearance. The extruded construction enhances resilience in various installations.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: PL1FEBC

Technical Specifications

• Application: Non-Hazardous Locations
• Bend Radius: 1-1/4 inches
• Color: Off-White
• Dimensions: 3.19 inches L x 3.19 inches W x 1.11 inches H; 8 inches L x 5 inches W x 1 inch H
• End Type: Flat
• Includes: Base and Cover
• Material: PVC
• Size: 1.03 sq-in
• Standards/Approvals: CSA C22.2 No. 62, UL 5A File No. E118895/E119190, ANSI/EIA/TIA569A
• Suitable For Use With: LANTrak® PL1 Series Latching Non-Metallic Raceway
• Type: Extruded Flat Latching Non-Metallic Standard
